4G, 3G, 2G, and Voice Cellular Signal Booster Kit with Lightweight Wall-Mounted Mast. Supports Multiple Carriers, Devices, and Technologies Simultaneously. Tri-Band. Improves indoor signal up to 500 meters.

4G, 3G, 2G, and Voice Cellular Signal Booster Kit with Lightweight Wall-Mounted Mast. Supports Multiple Carriers, Devices, and Technologies Simultaneously. Tri-Band. Improves indoor signal up to 500 meters.

This equipment is not intended for use by the general public. Its operation is only permitted for concessionaires authorized to use the frequency band by the competent authority. Persons operating this equipment without authorization may be subject to administrative or criminal liability.

Cellular Signal Booster Kit to improve 4G LTE and 3G calls and data. Ideal for home or office use. Includes a lightweight wall-mounted mast.

1. Repeats and amplifies the cellular signal to improve the Voice and Data of 4G LTE and 3G of your cellular device.
2. Reduce dropped and dropped calls.
3. Covers 1 to 5 rooms or up to 500 square meters.
4. Increases signal strength and extends battery life.
5. Supports multiple devices simultaneously.
6. Very easy and simple to install.

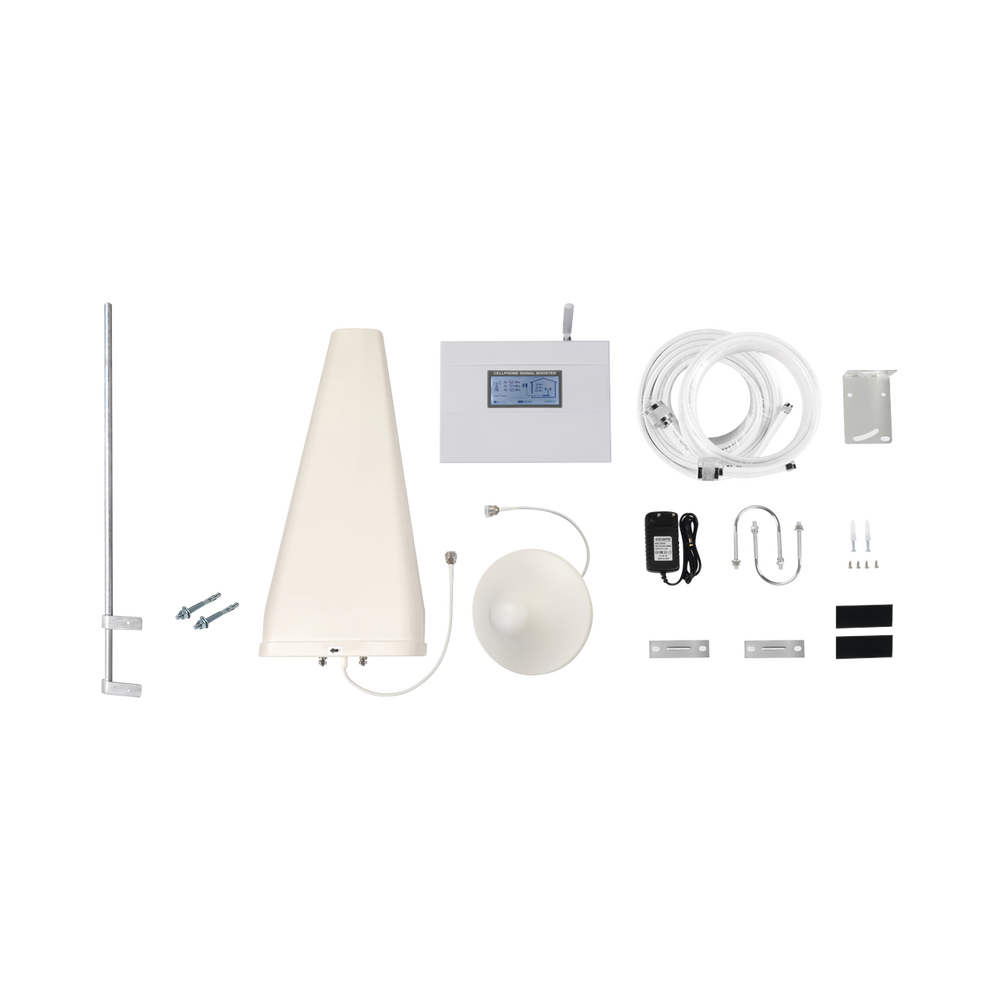

The kit includes virtually everything you need to enhance or create a cellular zone.

• 1 Triple Band Amplifier (B5|850 MHz, B2|1900 MHz and B4|2100 MHz)
• 1 Power supply for the amplifier.
• 1 Logarithmic antenna. For outdoor use.
• 1 Dome-type omnidirectional antenna. For indoor use.
• 1 Whip-type omnidirectional antenna. For indoor use.
• 1 Coaxial jumper with 20-meter RG58 type cable and N male / SMA male connectors.
• 1 Coaxial jumper with 5 meter RG58 type cable and N male / SMA male connectors.
• 1 1.5 meter diameter 1-1/4' 14 gauge mast with two welded tabs for installation.
• 2 expanding drill holes 3/8' x 2-1/2'

GRADES:

1. Of the two internal antennas included in the amplifier kit, only one is installed.
2. Mast recommended for low weight equipment (less than 2 kg) and low drag area (diameters less than 25 cm).

The amplifier features a display (LCD) that allows you to monitor the input and output signal strength, helping you get the most out of your system.

Main specifications:

Amplifier

• Frequency bands: 850 MHz (Band 5), 1900 MHz (Band 2) and 1700/2100 MHz (Band 4)
• Downlink Frequency Range: 869-894 MHz, 1930-1990 MHz and 2110-2155 MHz
• Uplink Frequency Range: 824-849 MHz, 1850-1905 MHz and 1710-1755 MHz
• Gain: 70 dB +- 3 dB
• Output power: 20 dBm
• Consumption: <6W
• Operating voltage: 5 Vdc, 3.5A.
• Temperature range: -5°C~+45°C
• Amplifier dimensions: 210 x 150 x 30 mm
• Weight: <1 kg

Mast.

• Made of A-36 steel.
• Hot dip galvanized.

The power of the amplifier is thanks to the signal that enters it.

* Exclusive product for GPS Location customers.

Includes everything you need for operation., With a screen to display signal and amplifier conditions., Self-adjusts signal levels., Hot-dip galvanized mast., Supports 4G LTE, 3G, 2G, and VOICE from Telcel, AT&T, and Movistar.
