Ultra Flexible RG-8 LMR400UF Coaxial Cable Meter, 50 Ohms

Ultra Flexible RG-8 LMR400UF Coaxial Cable Meter, 50 Ohms

Times LMR high-performance coaxial cable. Superior design with high flexibility and low loss, recommended for a wide variety of applications requiring a low-loss, easy-to-install RF cable.

Advantages offered by the LMR-400UF cable

• Direct replacement for models 9913 and CNT400.
• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Applications requiring cable with additional flexibility.
• Short cable installations.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 1.8 dB.
• Attenuation at 30 mts. at 450 MHz: 3.3 dB.
• Shielding Effectiveness: greater than 90 dB.
• Speed ​​Factor: 85%.
• Nominal Power: 0.69 kW at 450 MHz.

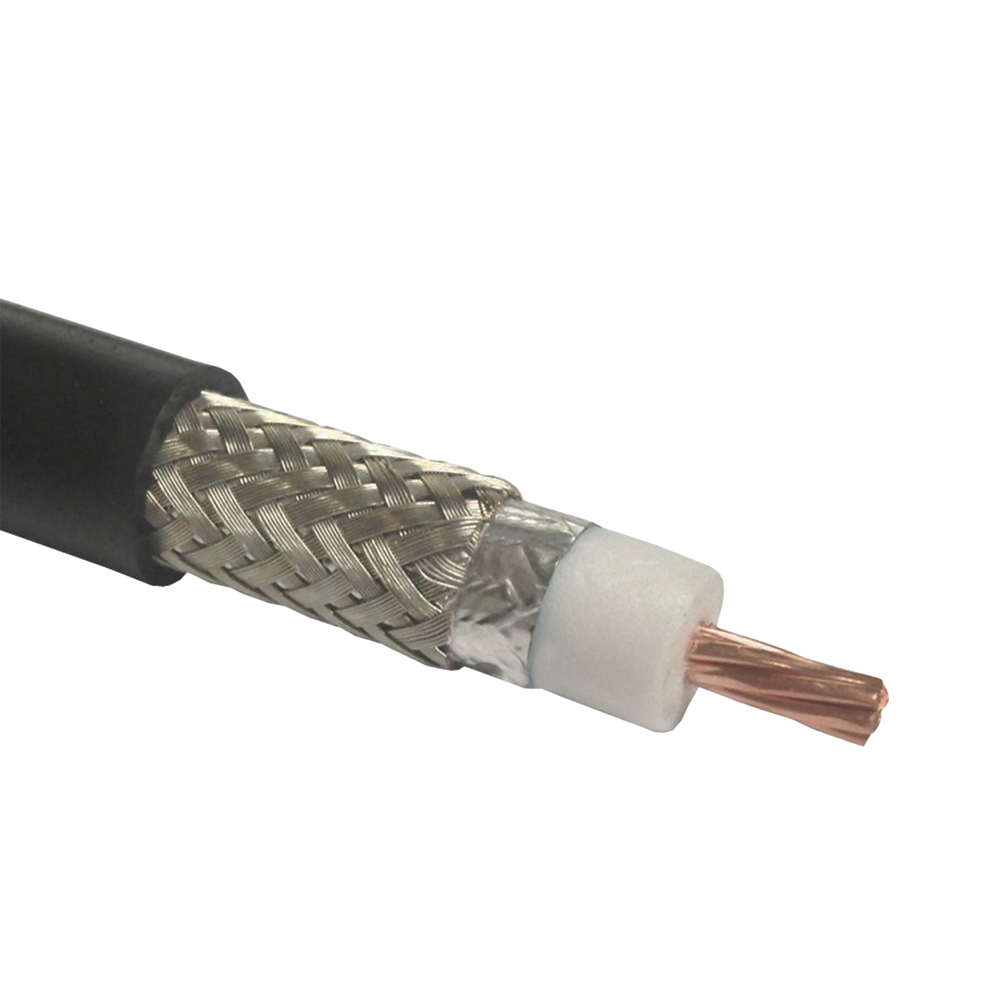

Construction Specifications

• Center Conductor Material: Stranded Copper.
• Cable Outer Diameter: 10.29 mm
• Inner Conductor Diameter: 2.74 mm.
• Shielding: Tinned Copper Mesh.
• Dielectric Insulation: Polyethylene foam.

20 years of service abroad, Stranded Copper Conductor, Tinned Copper Mesh
