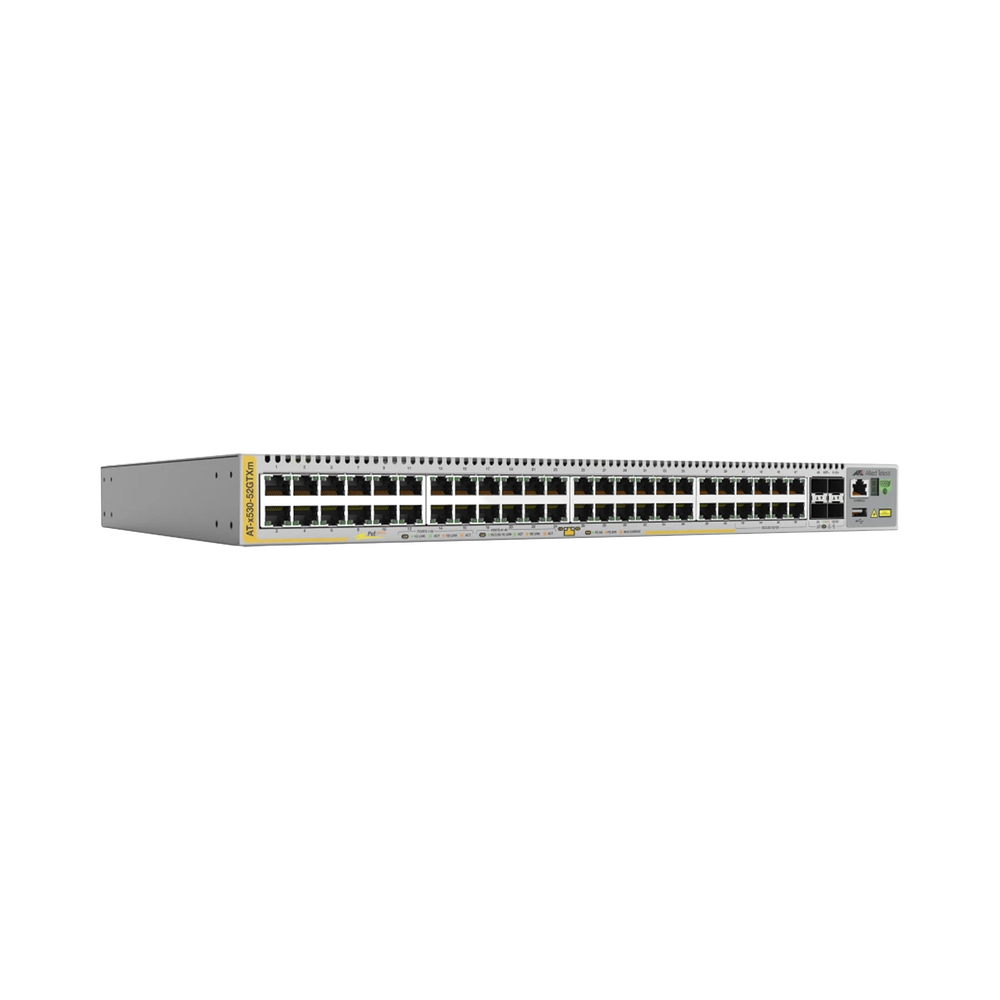

Switch Stackeable Capa 3, 20 puertos 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 puertos SFP+ 10 G, fuente redundante

Layer 3 Stackable Switch, 20 ports 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 ports SFP+ 10 G, redundant power supply

Sale price  $41,585,132 Regular price  $55,310,129
Skip to product information
Switch Stackeable Capa 3, 20 puertos 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 puertos SFP+ 10 G, fuente redundante

Layer 3 Stackable Switch, 20 ports 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 ports SFP+ 10 G, redundant power supply

Sale price  $41,585,132 Regular price  $55,310,129
Shipping calculated at checkout.
Marca
ALLIED TELESIS
Referencia / SKU
AT-X530-52GTXM-10
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Layer 3 Stackable Switch, 20 ports 10/100/1000 Mbps + 4 x 100M/1G/2.5/5G-T + 4 ports SFP+ 10 G, redundant power supply


Ports:

20 10/100/1000 Mbps ports.

4 ports 100M/1G/2.5G/5G

4 SFP+ 10G ports (2 are stacked).

Forwarding rate: 119 Million packets per second (Mpps).

Switching fabric: 160 Gbps.



Operating system:

AlliedWare Plus™.



Administration:

Command Line Interface (CLI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.



General characteristics:

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Multicast support -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

  • 8 priority queues.
  • Limit bandwidth by port or traffic class.



Routing protocols :

Static routing.

Border Gateway Protocol (BGP).

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

AT-FL-X530-01 Premium Layer 3 License.



Redundancy features:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).



Physical and electrical characteristics:

Power supply: 100-240 VAC, 50-60 Hz.

Dimensions: 1 U Rack, 44 x 323 x 441 mm.

Weight: 4.8 kg.

Operating Temperature: 0 to 50° C.



Warranty:

1 year.


Example of a high-performance business network.

    Stackable up to 8 units., Up to 4094 VLANs., Routing protocols (OSPF, RIP, and BGP)
