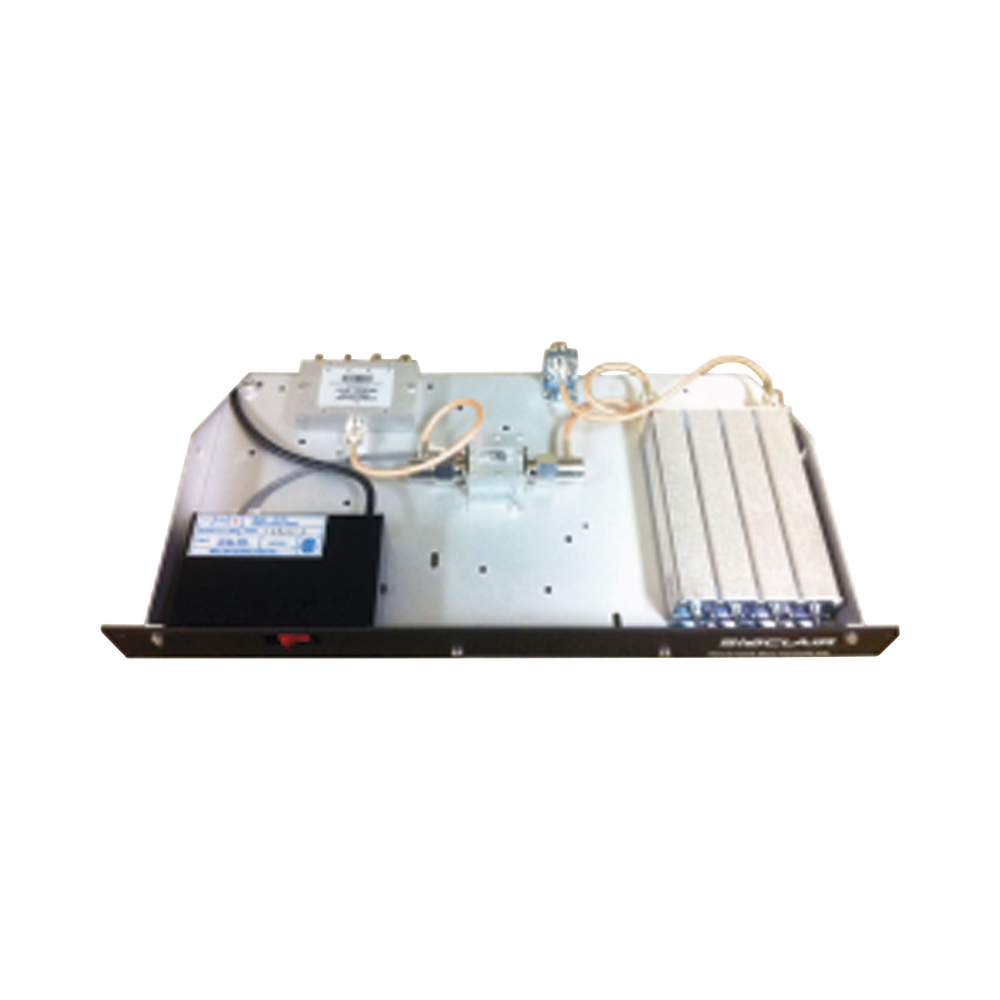

Multicoupler with Preselector for 4 Channels, 160-174 MHz, 1 MHz Bandwidth, 12 VDC, N Female Connectors

Multicoupler with Preselector for 4 Channels, 160-174 MHz, 1 MHz Bandwidth, 12 VDC, N Female Connectors

Multicoupler with 4-Channel Preselector, 160-174 MHz, 1MHz.

     Electrical Specifications

• Frequency Range: 160-174 MHz.
• Number of Channels: 4
• Bandwidth: 1 MHz.
• System Gain: 2 dB.
• Connectors (Ant./Outputs): N Females.
• Input/Output VSWR (max): 1.5:1
• Impedance: 50 Ohm.
• Power Consumption (Typical): 4 Watt.
• Compression Point at 1 dB: 27 dB.
• Rx-Rx isolation: 20 dB.
• Supply Voltage: 12 Vdc.

Mechanical Specifications

• Width: 19 in (483 mm)
• Depth: 10 in (254 mm)
• Length/Height: 1.78 in (45 mm)
• Weight: 5.5 lbs (2.5 kg)
• Actual Shipping Weight: 10 lbs (4.54 kg)
• Shipping Dimensions: 22 x 18 x 4 in (559 x 457 x 102 mm)

Environmental Specifications

• Temperature range: -22 to +140°F (-30 to +60°C)
