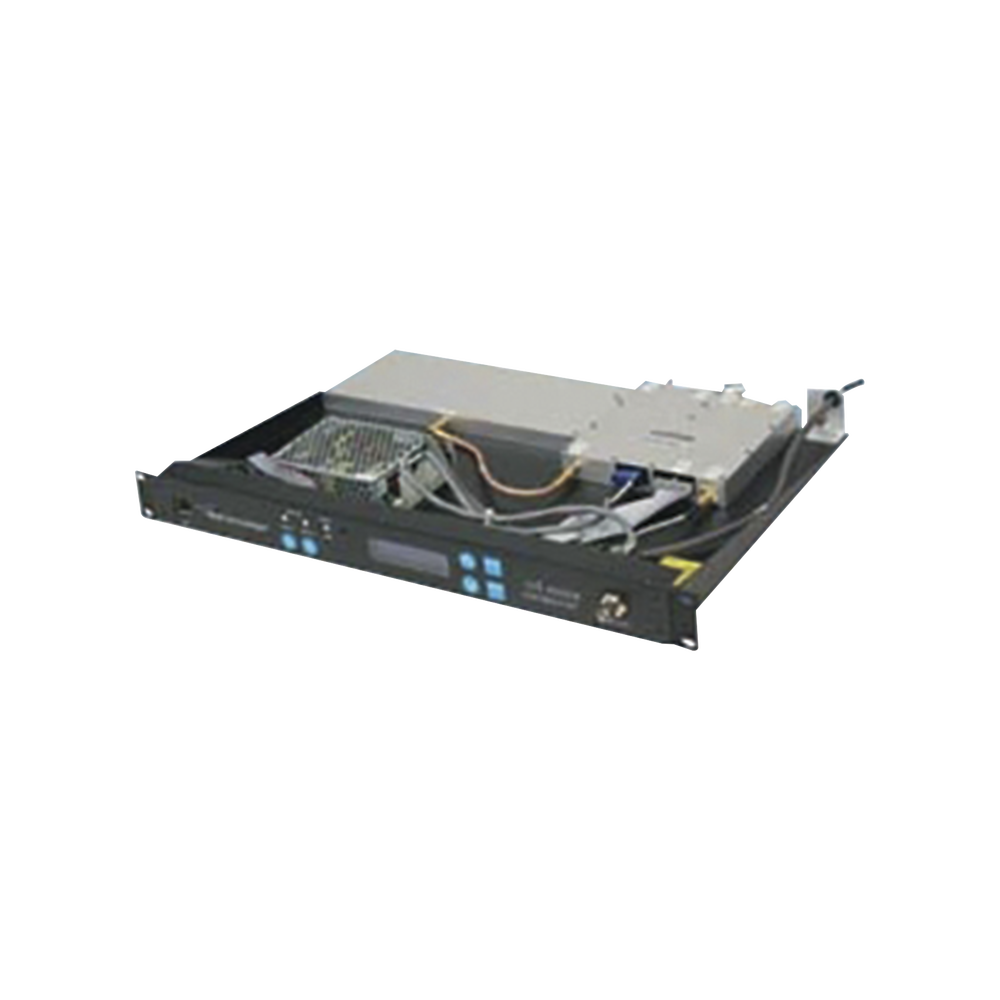

Receiving Multicoupler for TTA, 792-824 MHz, 16 Channels, 90-240 Vac. N Female/ BNC Female.

Receiving Multicoupler for TTA, 792-824 MHz, 16 Channels, 90-240 Vac. N Female/ BNC Female.

Receive Multicoupler / TTA, 792-824 MHz, 16 Channels, 90-240 Vac.

• Frequency Range: 792-824 MHz.
• Net Gain: +1 dB typical, 0 dB min.
• Number of Departures: 16 ports.
• Impedance: 50 Ohm.
• VSWR: < 2:1
• Connectors: BNC Female on output ports and N Female towards TTA.
• Attenuation: Electronic 0-15.5 dB in 0.5 dB steps.
• Power Requirements: 90-240 Vac.
• Operating Temperature: 0 °C to +50 °C.
• Cabinet: EIA Standard, 19' Rack Mount
• Dimensions: 45 x 483 x 356 mm.
• Weight: 5.22 kg.
