MIKROTIK

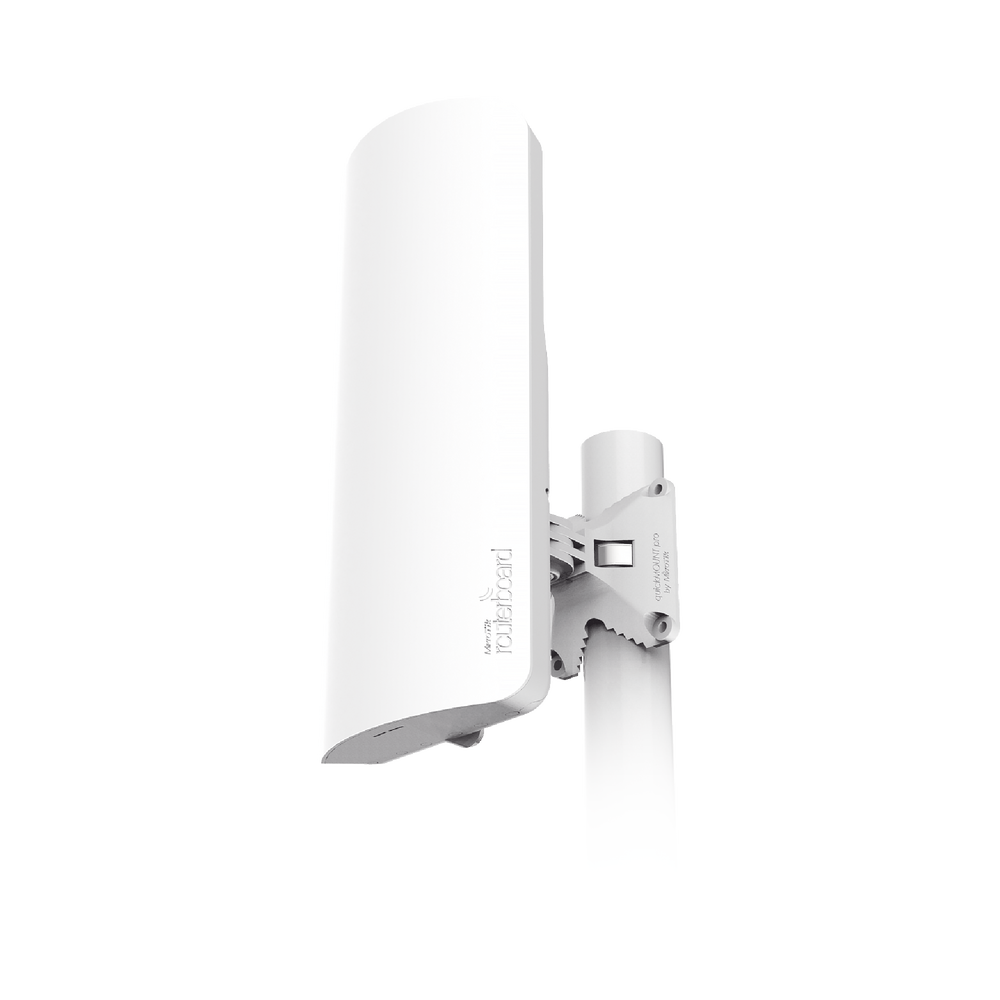

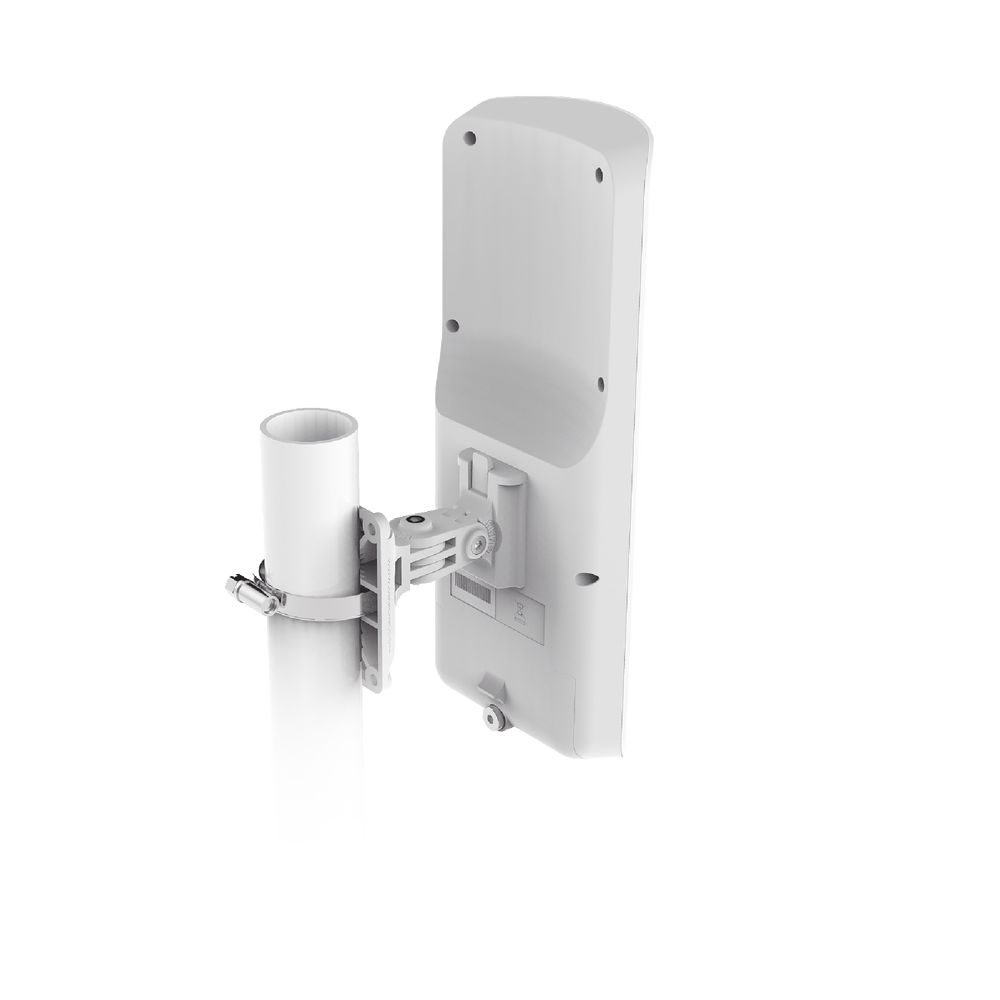

(mANTBox 52 15s) 2.4/5 GHz dual-band base station with a powerful built-in sector antenna
(mANTBox 52 15s) 2.4/5 GHz dual-band base station with a powerful built-in sector antenna
Couldn't load pickup availability
(mANTBox 52 15s) 2.4/5 GHz dual-band base station with a powerful built-in sector antenna
Are you managing an outdoor wireless network with a variety of access points and CPE devices? Then our new mANTBox 52 15s has you covered: it offers powerful built-in antennas, exciting connectivity options, and more!

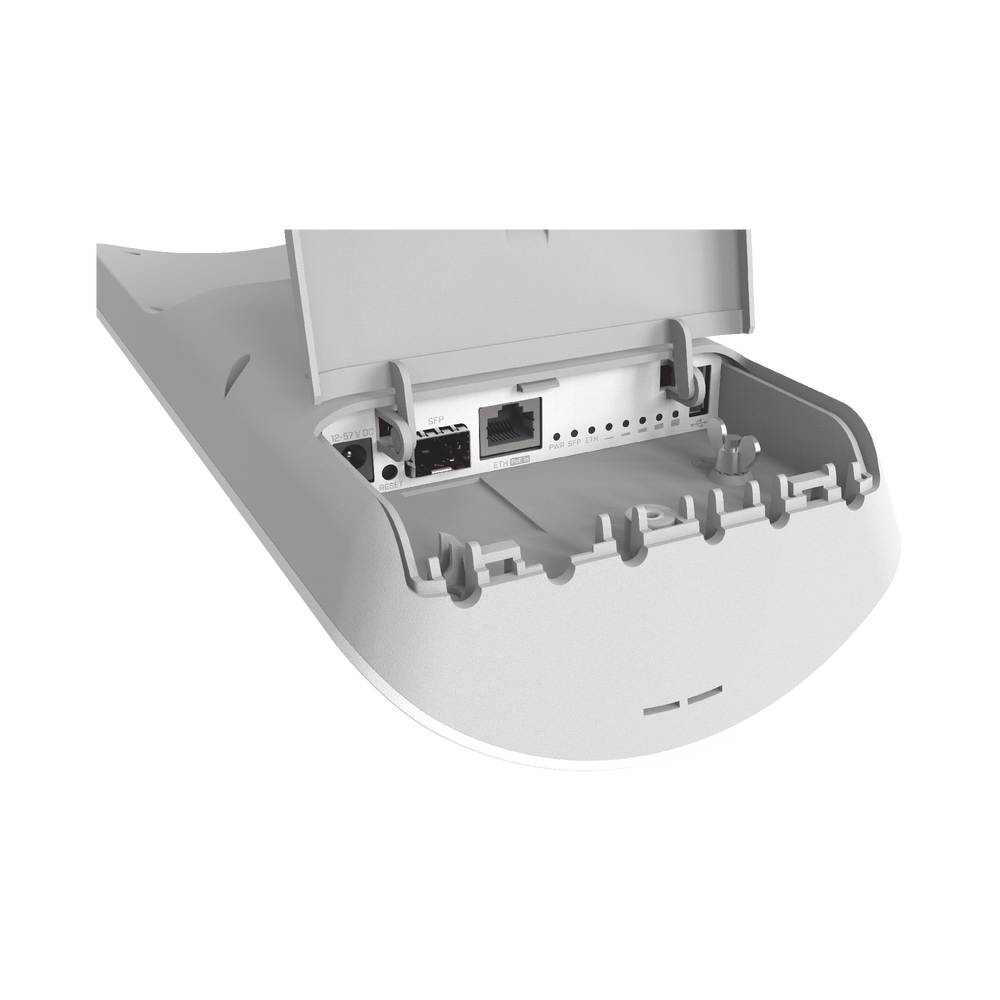

Creating an efficient point-to-multipoint connection used to be complicated, but not anymore: the mANTBox 52 15s works well in any setup. Dual-band wireless capability lets you use 2.4 GHz and 5 GHz devices simultaneously. There's a Gigabit Ethernet port and an SFP port for fiber connections.
We've doubled the RAM and added a new quad-core CPU that can handle even the heaviest loads. The mANTBox 52 15s can even seamlessly provide IPsec hardware offload. Depending on the rest of your setup, you can reach a distance of up to 20 km with the built-in dual-polarization antenna.
Specs
| Details | |
|---|---|
| Product code | RBD22UGS-5HPacD2HnD-15S |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU cores | 4 |
| Dimensions | 140 x 348 x 82 mm |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40 ° C to + 70 ° C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE on input voltage | 12-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input voltage | 12-57 V |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 2.4 GHz | 300 Mbit/s |
| Number of 2.4 GHz wireless chains | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 12 |
| 2.4GHz Wireless Chip Model | IPQ-4019 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
| Maximum wireless data rate of 5 GHz | 867 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 15 |
| 5GHz Wireless Chip Model | IPQ-4019 |
| 5 GHz wireless generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Share
Out of stock
MODELO: RBD22UGS-5HPACD2HND-15S
