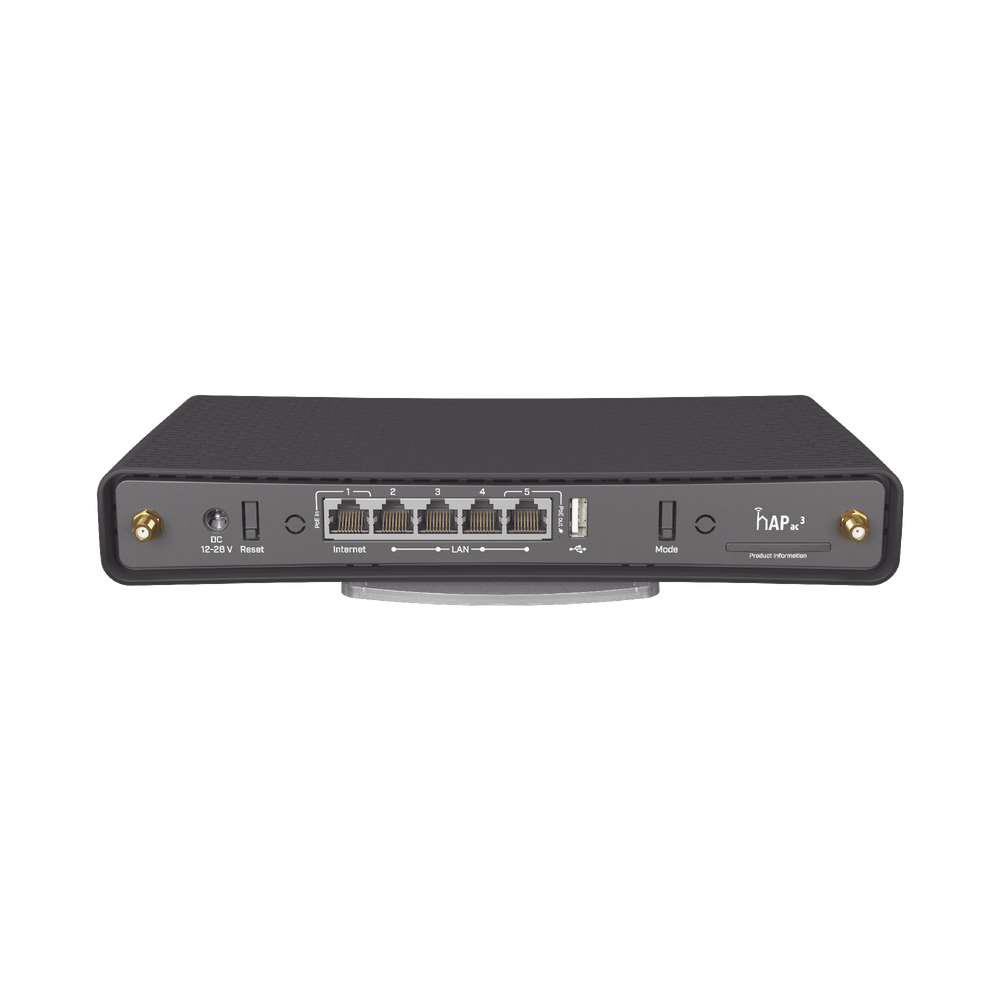

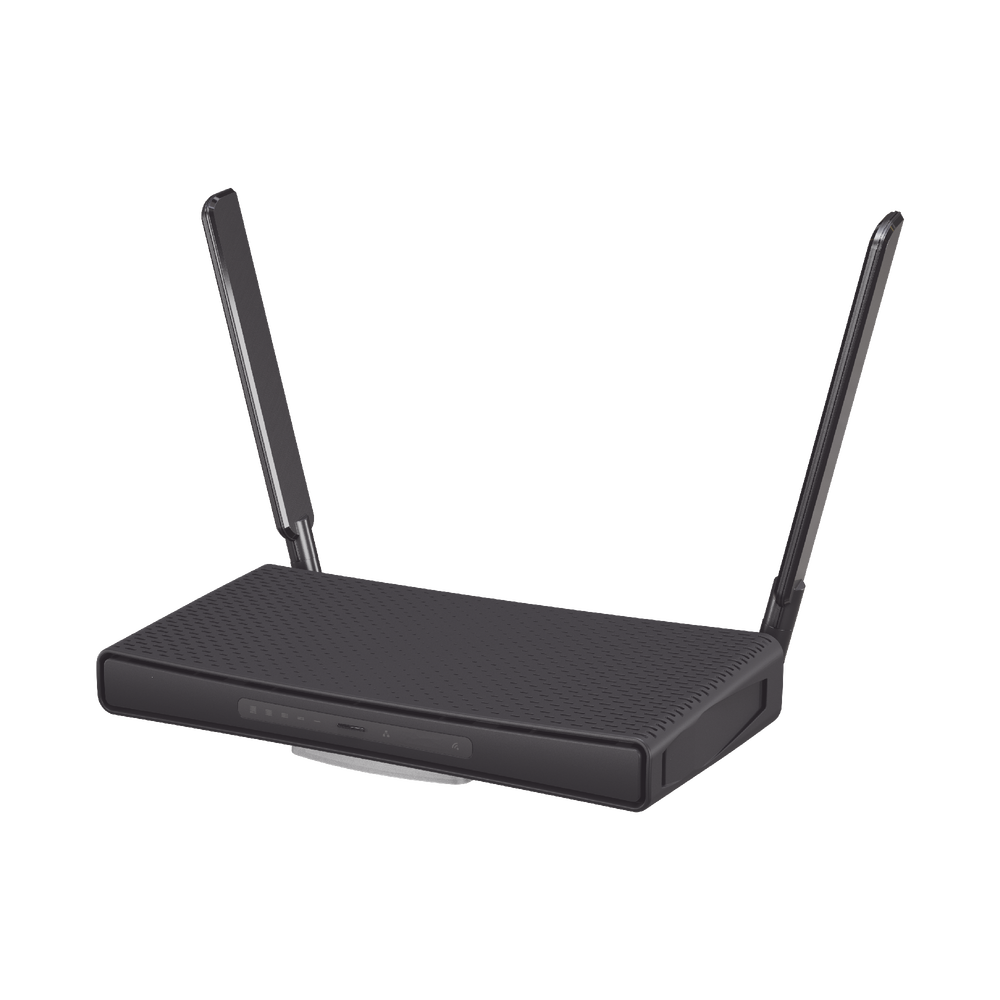

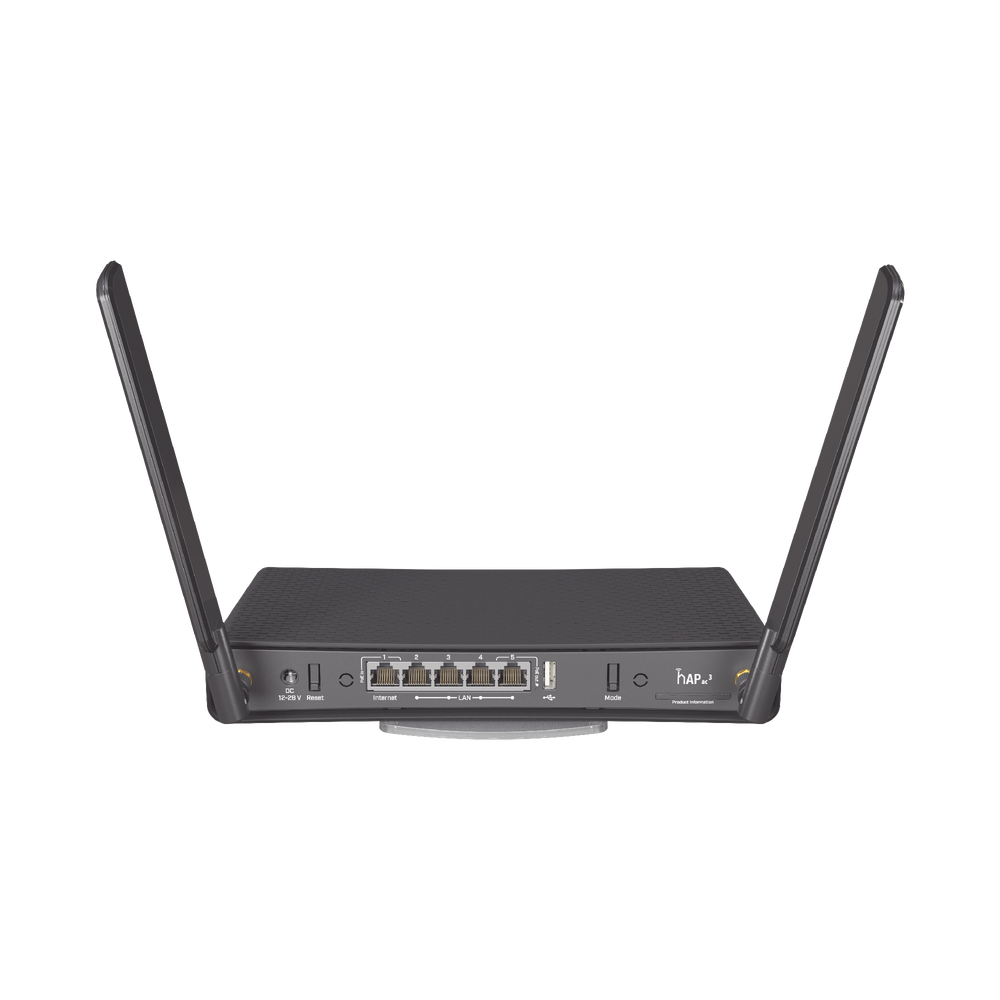

(hAP ac 3) Dual-band wireless router with 5 Gigabit Ethernet ports and high-gain external antennas
Forget the endless search for the perfect router and scrolling through endless reviews and specifications! We've created a single, affordable residential access point that has all the features you'll need for years to come.
Is your old router struggling to reach every corner of your home? Forget that! We've included high-gain external wireless antennas with exceptional coverage. Just a strong, stable wireless connection in every room from now on!

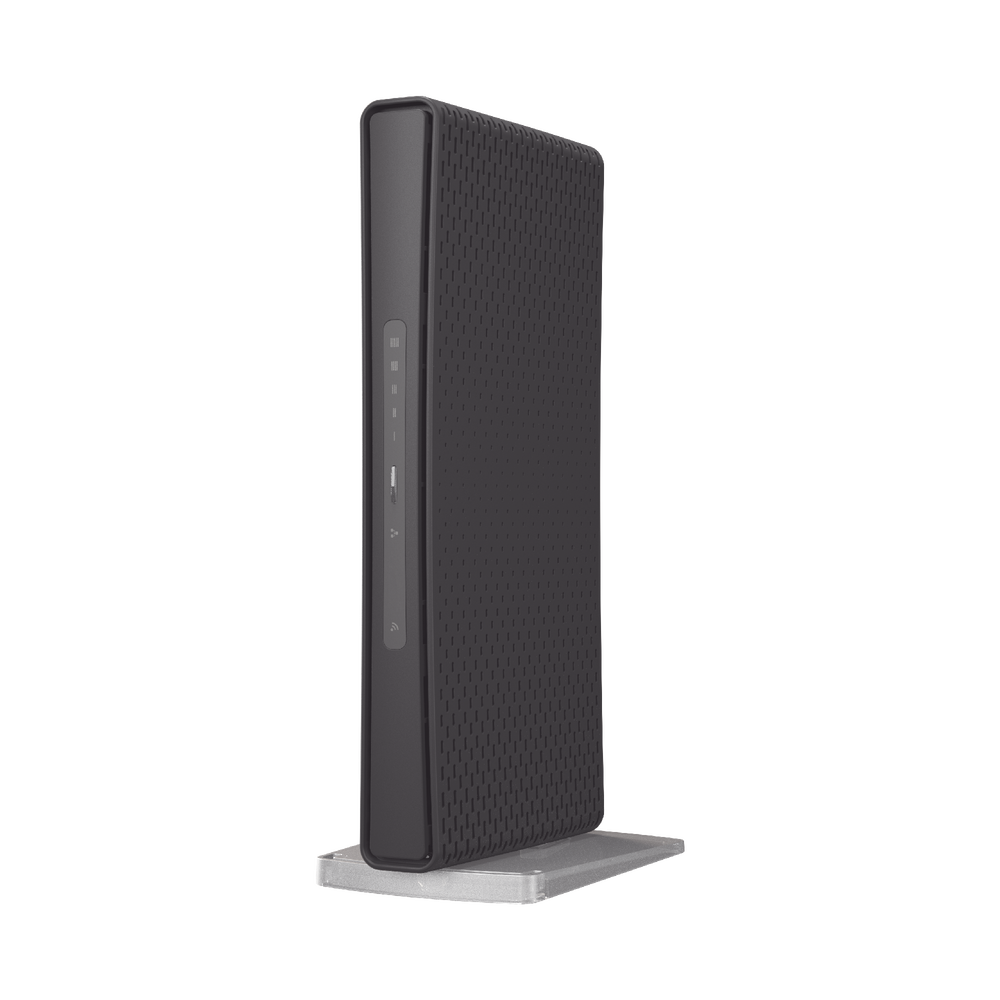

With five Gigabit Ethernet ports, 256 MB of RAM, and a quad-core CPU, the hAP ac3 can satisfy even the largest and most demanding homes. With PoE support, it can power or be powered by other devices. There's a 128 MB NAND flash drive and a full-size USB port that you can use to add additional storage. The new housing allows the device to be mounted vertically or horizontally. A wall-mount kit is also included.
Specs
| Details |
|---|
| Product code |
RBD53iG-5HacD2HnD |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4019 |
| CPU core count |
4 |
| Nominal CPU frequency |
716 MHz |
| Dimensions |
251 x 129 x 39 mm |
| RouterOS License |
4 |
| Operating system |
Routeros |
| RAM size |
256 MB |
| Storage size |
128 MB |
| Storage type |
Nand |
| Room temperature tested |
-40 °C to 70 °C |
| MTBF |
Approximately 100,000 hours at 25C |
Wireless capabilities
| Details |
|---|
| 2.4 GHz Max Wireless Data Rate |
300 Mbit/s |
| Number of 2.4 GHz wireless chains |
2 |
| 2.4 GHz wireless standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
3 |
| 2.4GHz Wireless Chip Model |
IPQ-4019 |
| 2.4 GHz wireless generation |
Wi-Fi 4 |
| 5GHz Max Wireless Data Rate |
867 Mbit/s |
| Number of 5 GHz wireless chains |
2 |
| 5 GHz Wireless Standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
5.5 |
| 5GHz Wireless Chip Model |
IPQ-4019 |
| 5 GHz wireless generation |
Wi-Fi 5 |
| AC speed |
AC1200 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports |
5 |
| Number of 1G Ethernet ports with PoE-out |
1 |
Peripherals
| Details |
|---|
| Number of USB ports |
1 |
| USB Power Reset |
Yeah |
| USB slot type |
USB Type A |
| Maximum USB current (A) |
1 |
Feeding
| Details |
|---|
| PoE in |
Passive PoE |
| PoE on input voltage |
18-28 V |
| Number of DC inputs |
2 (DC connector, PoE-IN) |
| DC Jack Input Voltage |
12-28 V |
| Maximum energy consumption |
30 W |
| Maximum power consumption without accessories |
12 W |
| Fan Count |
Passive |
PoE-out
| Details |
|---|
| PoE-out ports |
Ether5 |
| PoE out |
Passive PoE |
| Maximum output per port output (input < 30 V) |
0.5 A |
| Maximum output total (A) |
0.5 A |
Certification and approvals
| Details |
|---|
| Certification |
CE, FCC, IC, EAC, ROHS |
Other
Ethernet test results
