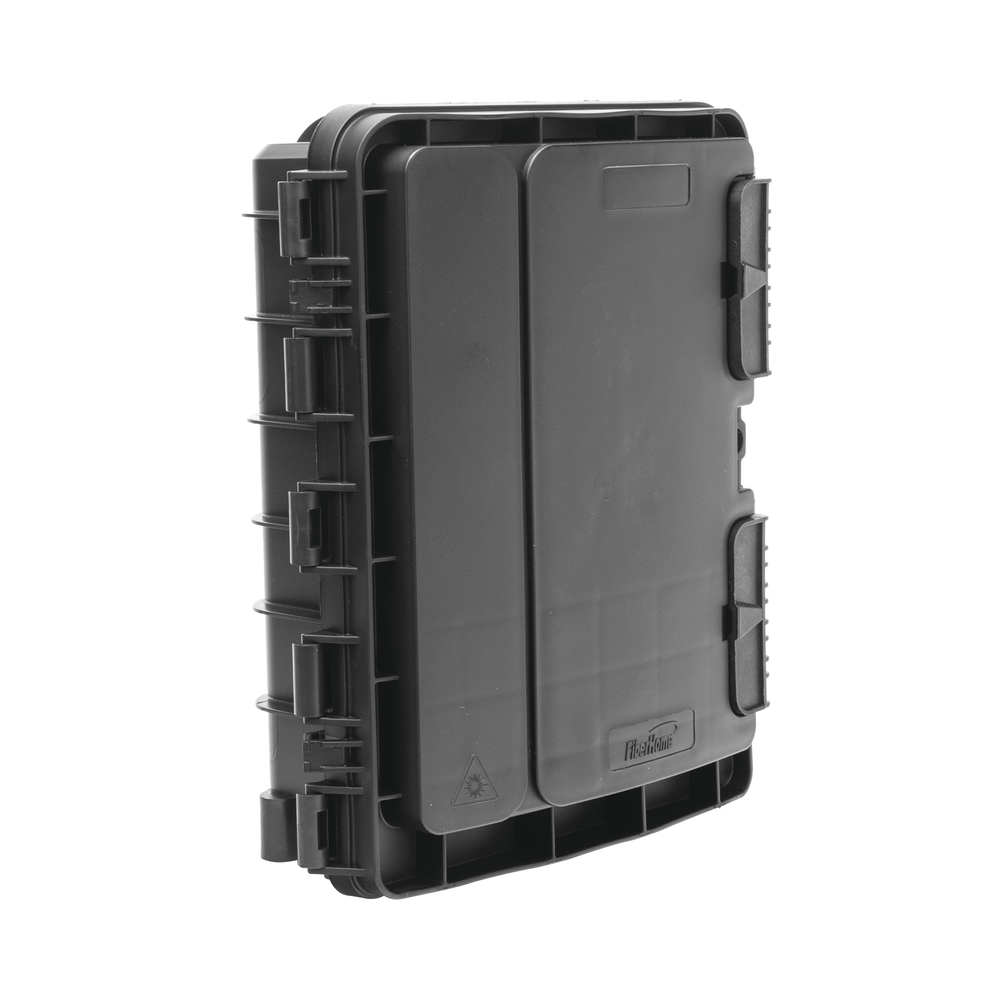

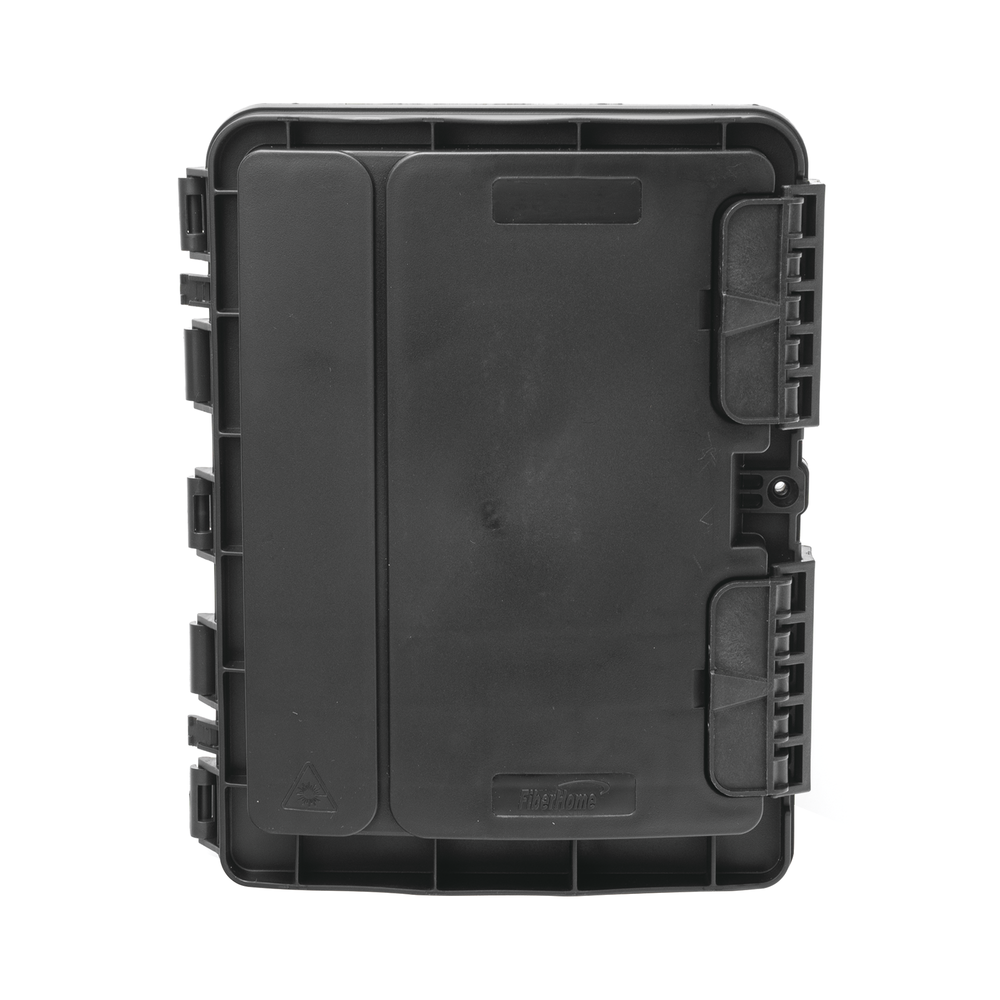

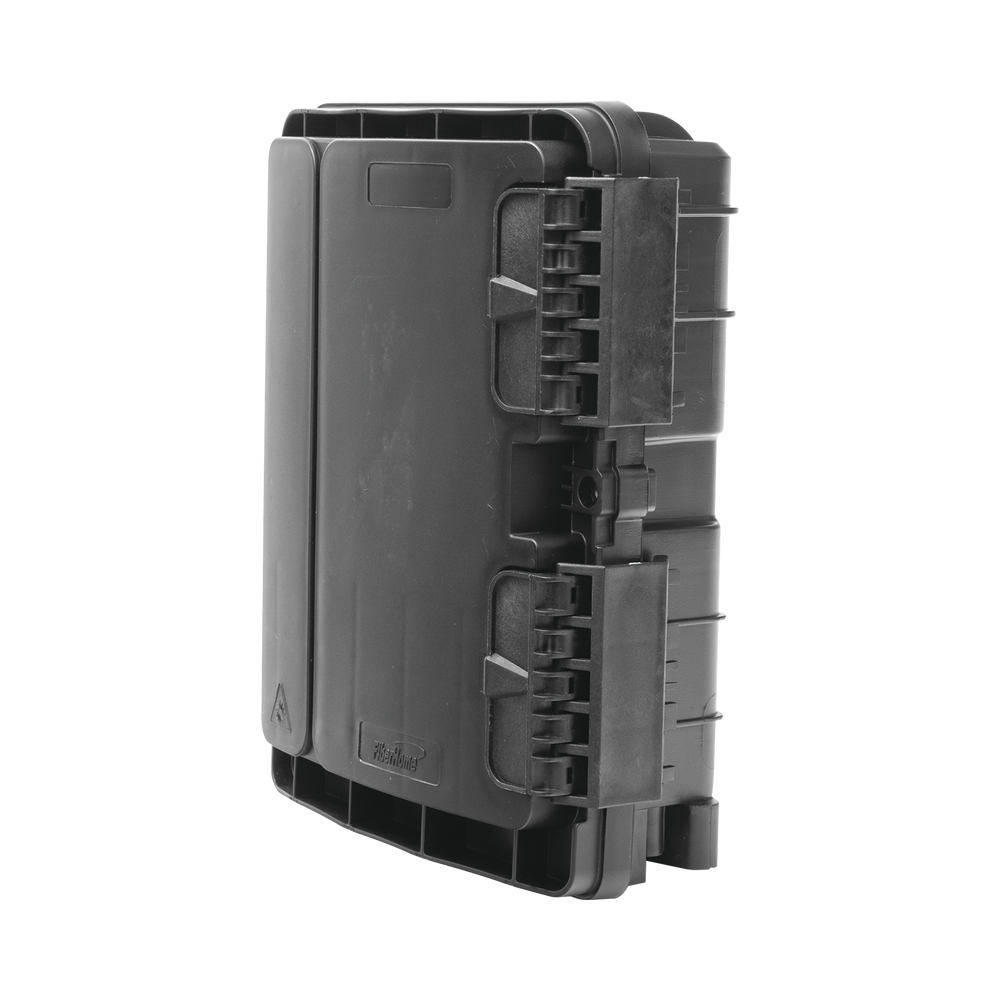

Splice closure for 20 fiber optic fusions, Outdoor, 8 SC/APC couplers, includes 1x8 splitter, IP65

Splice closure for 20 fiber optic fusions, Outdoor, 8 SC/APC couplers, includes 1x8 splitter, IP65

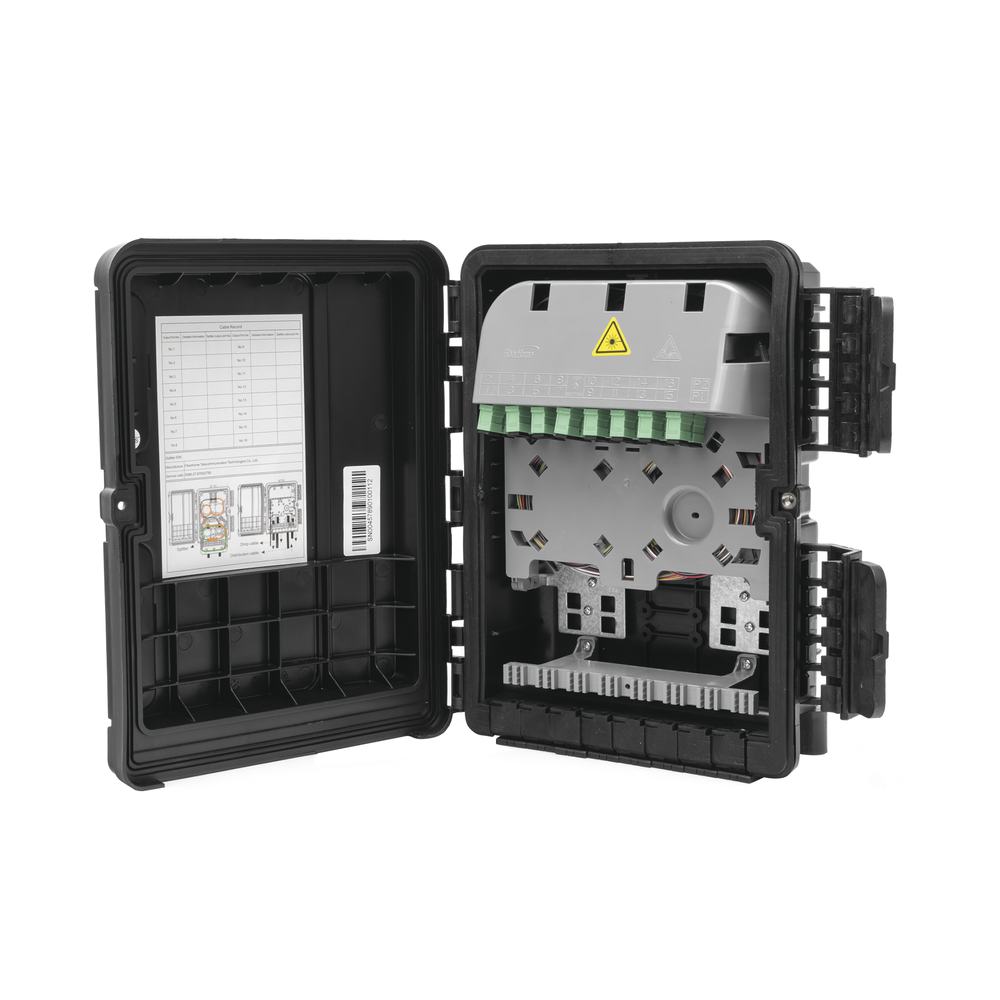

The FDP-420A Splice Closure is a fiber optic subscriber access box used as one of the elements in the construction of an FTTH network. It is designed to provide a protected access point between the distribution cable and the drop cable. This product protects internal components from external environmental damage. The distribution input signal is spliced ​​at the splitter input, and the outputs are connected to the drop fiber using couplers. The FDP-420 series is suitable for both LCP and NAP applications in PON architecture.

Characteristics

• Application: Exterior
• Good resistance to UV rays
• Numerous applications, such as direct, branch and half-span splices
• High-strength material with good climate adaptability
• Protection level: IP65

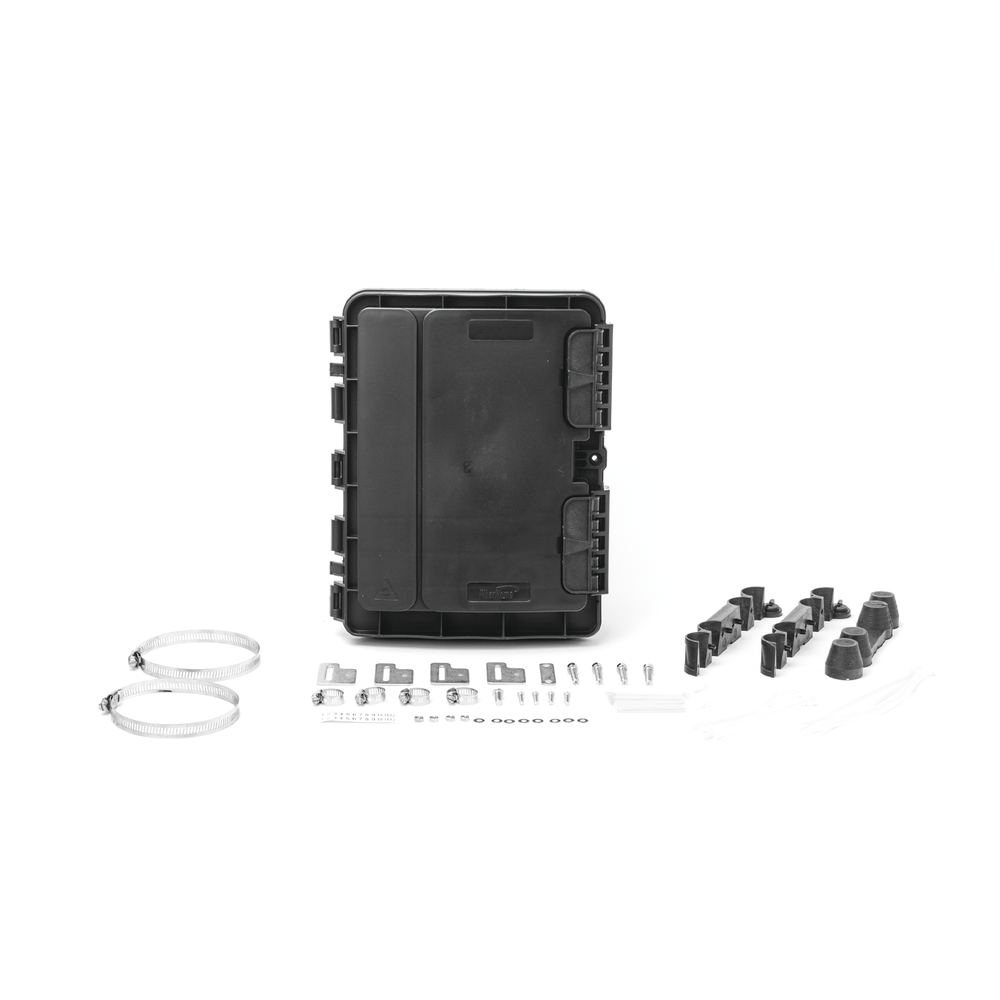

• Pole mount (includes accessory)
• Supports the installation of splitters
• Excellent sealing performance. Compatible with various types of fiber optic cables.
• Dimensions (mm): 305 x 248.5 x 120 (Height x Width x Depth)
• 16 output ports for drop fiber

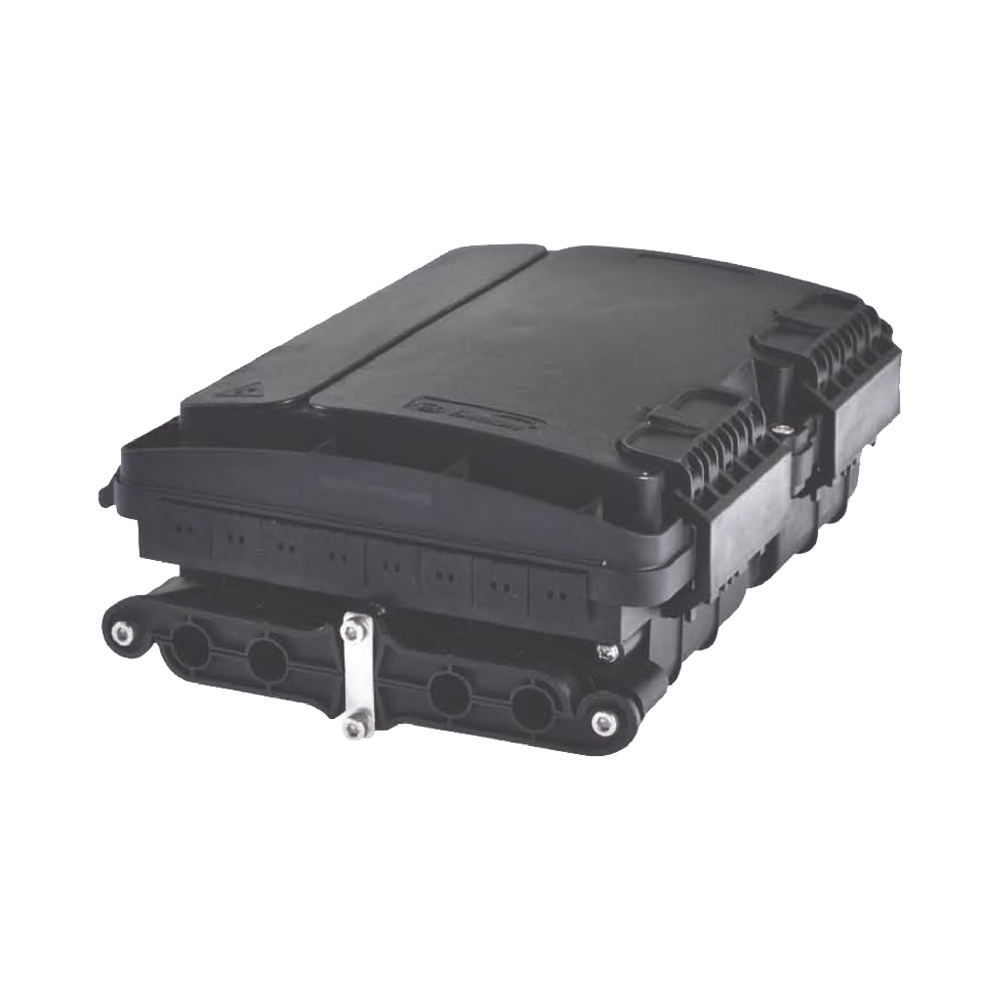

• 4 ports for distribution cable (Φ 5-16 mm)
• Black color
• Operating Temperature (°C): -40ºC ～ + 65ºC
• Includes 1x8 splitter with SC/APC output connectors and 8 SC/APC couplers

Pole mount
