Passive infrared exit button with relay

The EX-H22 and EX-M22 exit buttons are passive infrared (contactless) motion sensors. The new exit button is designed for surface mounting, suitable for use in European or American electrical boxes. The passive infrared technology of the buttons features an illuminated red/green LED ring to indicate the button status.

The sensors are designed for use as request-to-exit (REX) buttons in access control systems, directly activating an electric lock, or magnetic locks with up to 30 VDC and 1A.

Technical Specifications

-Input voltage 8–30 VDC

- Switch voltage range 30 VDC [OC], Maximum switch current range 1 A

- Sensitivity range from 5 hsat to 20 cm

- Red / Green LED Indicator

2.2 Environmental Characteristics

- Operating environment: Indoor/Outdoor use (with protection)

- Operating temperature range -10ËšC to 50ËšC (14ËšF to 122ËšF)

- Storage temperature range -20°C to 60°C (-4°F to 140°F)

- Operating Humidity 10% to 90%

2.3 Physical Characteristics

Dimensions (W x H x D) EXH22N00: 114 x 70 x 10 mm (4.49 x 2.76 x 0.39 in.)

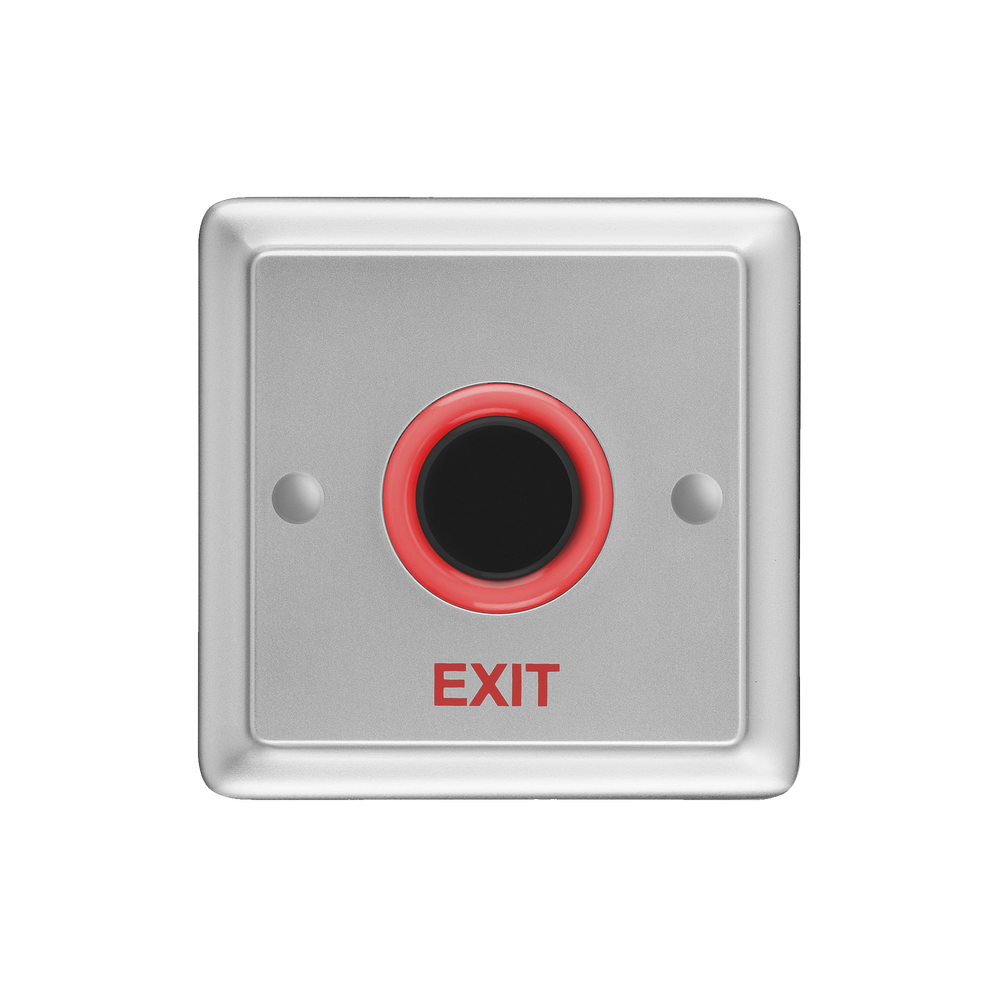

EXM22N00: 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.)

EXH22N00 Weight: 50 g (1.76 oz)
