Cat6A Patch Cord, Small Diameter 28 AWG, Shielded S/FTP, CM/LS0H, 1.5m, Blue

Cat6A Patch Cord, Small Diameter 28 AWG, Shielded S/FTP, CM/LS0H, 1.5m, Blue

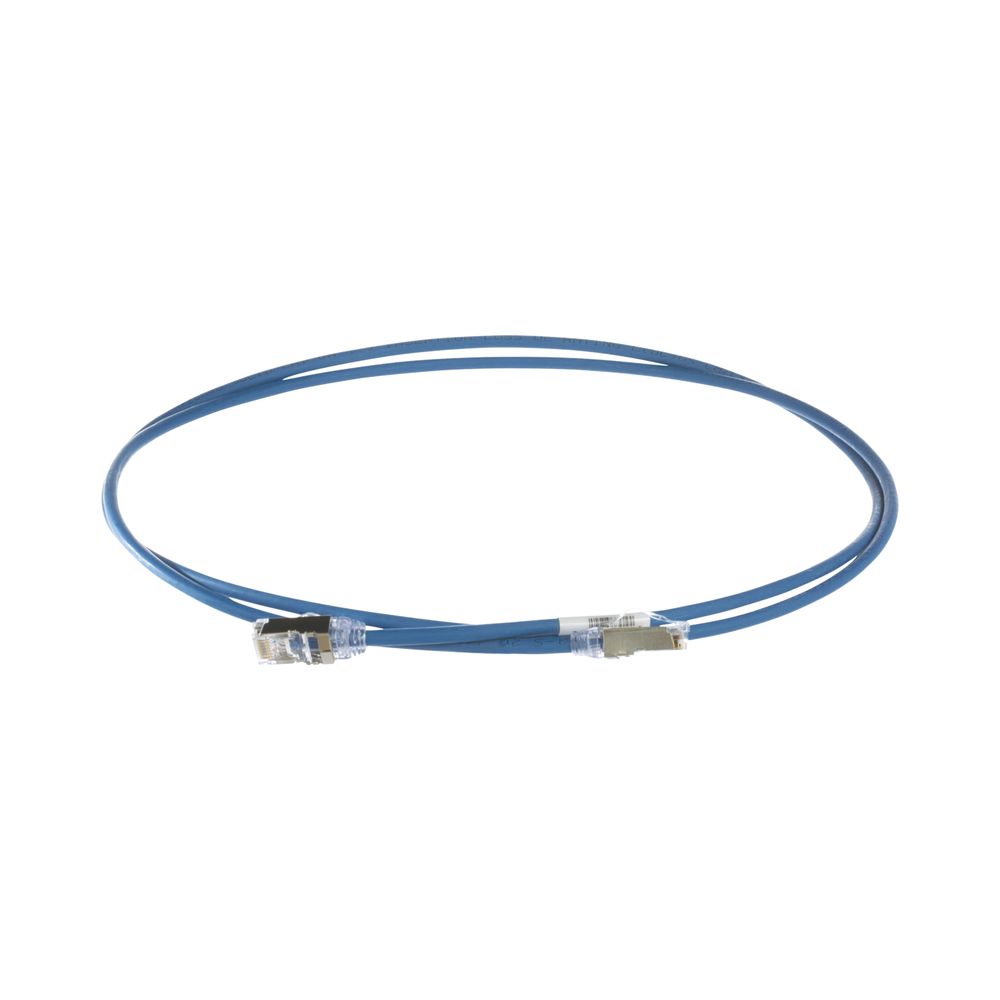

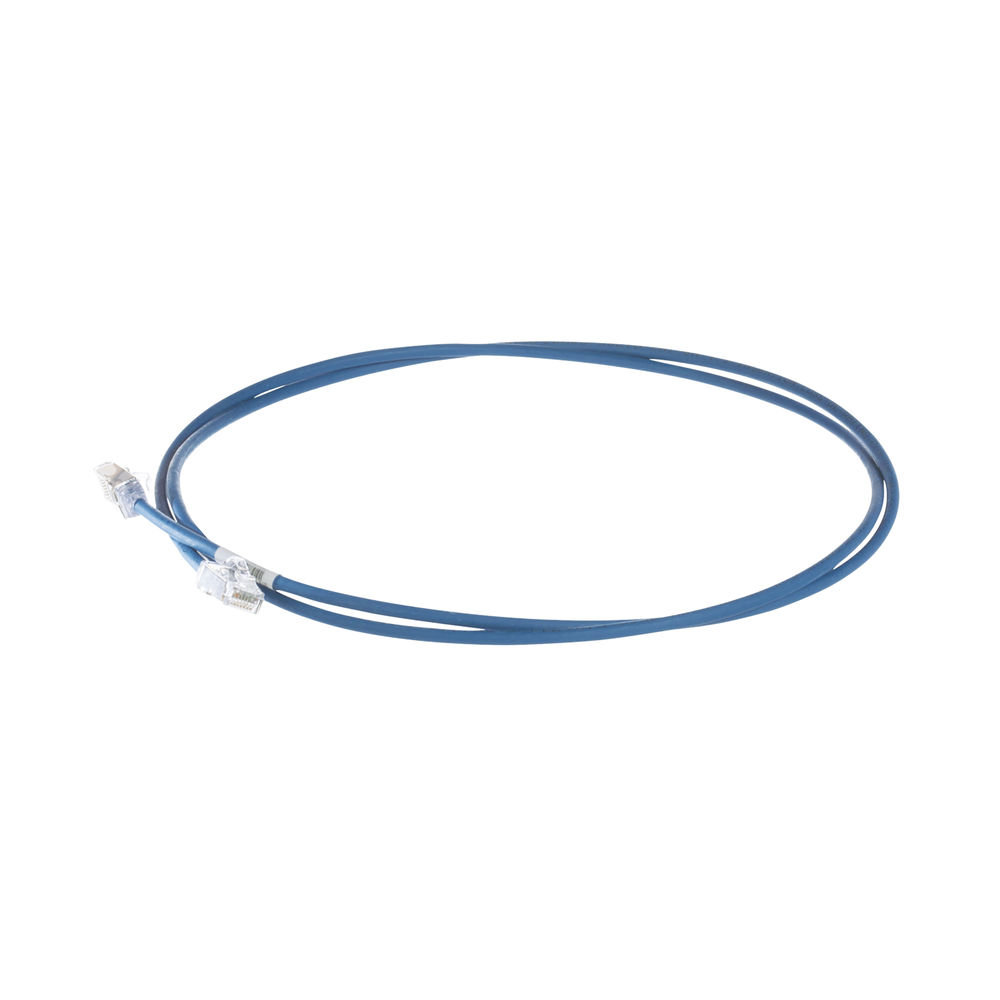

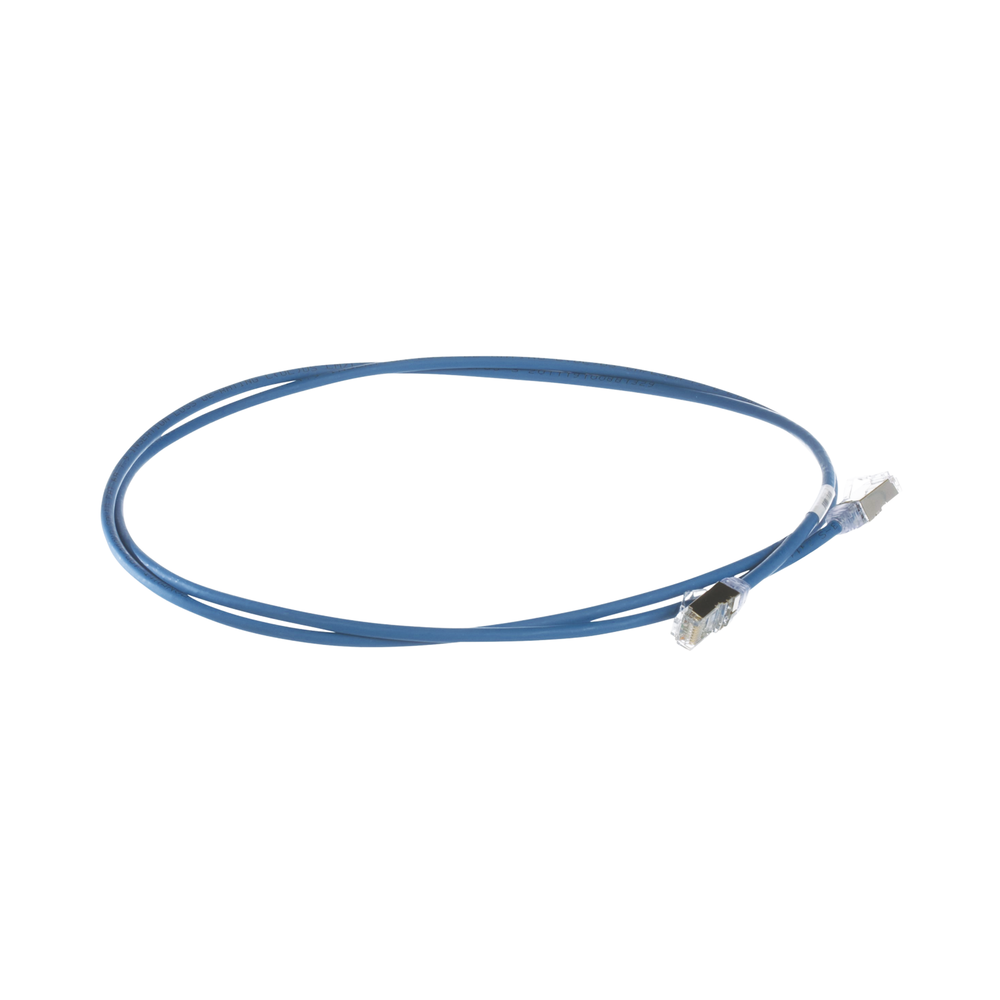

The TX6A-28™ Cat 6A Shielded Patch Cord is constructed of solid, twisted-pair, 28 AWG shielded CM/LSZH jacket with enhanced performance modular plugs. The use of 28 AWG wire ensures a small diameter connection, making it easier to install and work with. The patented tangle-free latch prevents snagging and provides easy release, saving time with frequent moves, adds, and changes. The patch cable is 1.5 meters long, 0.185 inches (4.7 mm) nominal diameter, and is blue.

Technical Specifications:

• Performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz.
• Nominal diameter: 4.7 mm.
• FCC and ANSI Compliance: Meets ANSI/TIA-1096-A requirements; 50 micro-inch gold-plated contacts for superior performance.
• Flammability rating: CM/LSZH.
• PoE Compliance: Rated for 2500 cycles with IEEE 802.3af/802.3at and 802.3bt Type 3 and Type 4.
