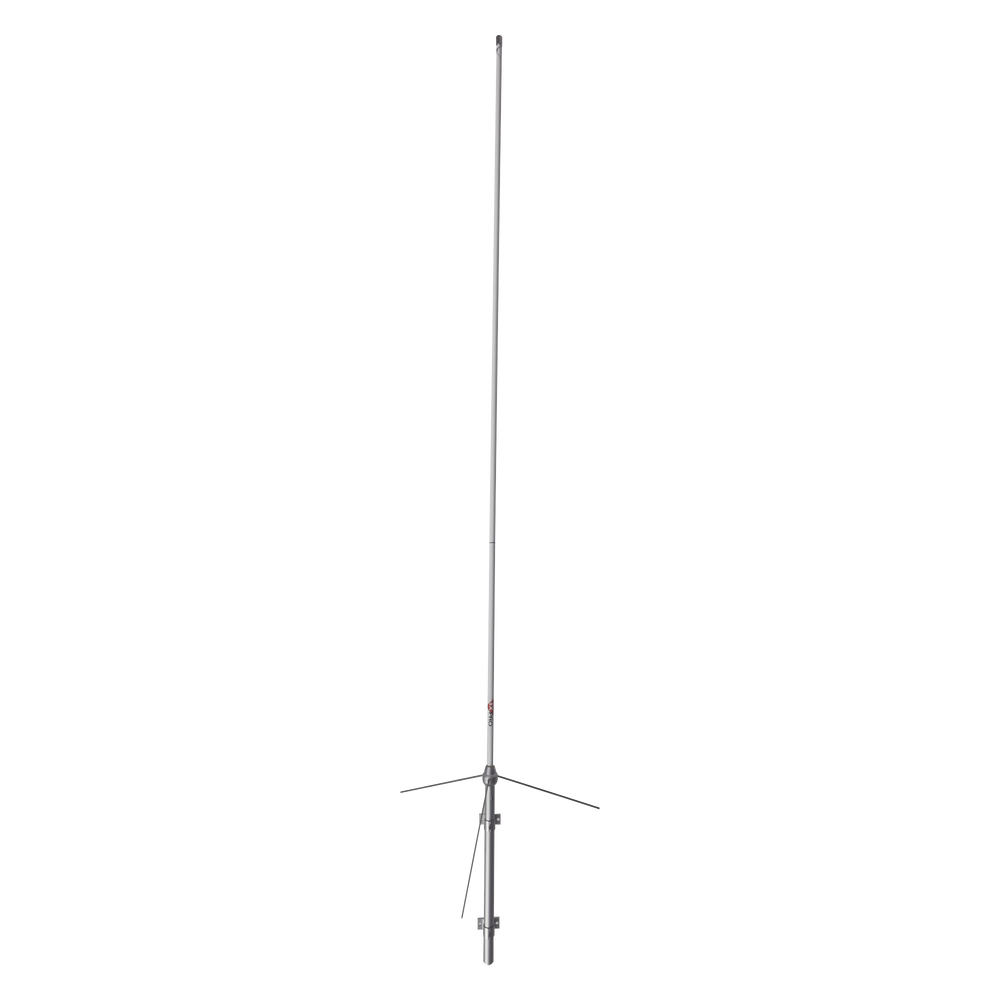

VHF Fiberglass Antenna for 136-174 MHz, 6.7 dB gain, 5 MHz bandwidth, 200 Watt.

VHF Fiberglass Antenna for 136-174 MHz, 6.7 dB gain, 5 MHz bandwidth, 200 Watt.

The TXAB series base station antennas are an icon of performance and quality, as the quality of our communication antennas is the most important objective.

Their low wind profile makes them an ideal choice in problematic locations with a large antenna population, making them the best option due to their excellent performance.

Its electrical design provides a low radiation angle and a stable pattern, in addition to being manufactured under strict quality control.

Combining these features with its low cost results in a complete package: QUALITY, PERFORMANCE AND PRICE.

Fiberglass VHF Antenna for 136-174 MHz.

• Frequency Range: 136-174 MHz. (Requires adjustment to operating frequency).
• Gain: 6.7 dB.
• Bandwidth: 5 MHz.
• Power: 200 Watts.
• Connector: UHF Female.
• Length: 3.2 m.
• Wind resistance: 177 km/h.
• Construction: Fiberglass. (2 sections)

The TXAB13674FG2 model from TXPRO is a VHF antenna ideal for base stations and repeaters. Its adjustable fiberglass antenna is an excellent choice for locations with high humidity.

Fiberglass, 6.7 dB gain, 136-174 MHz frequency
