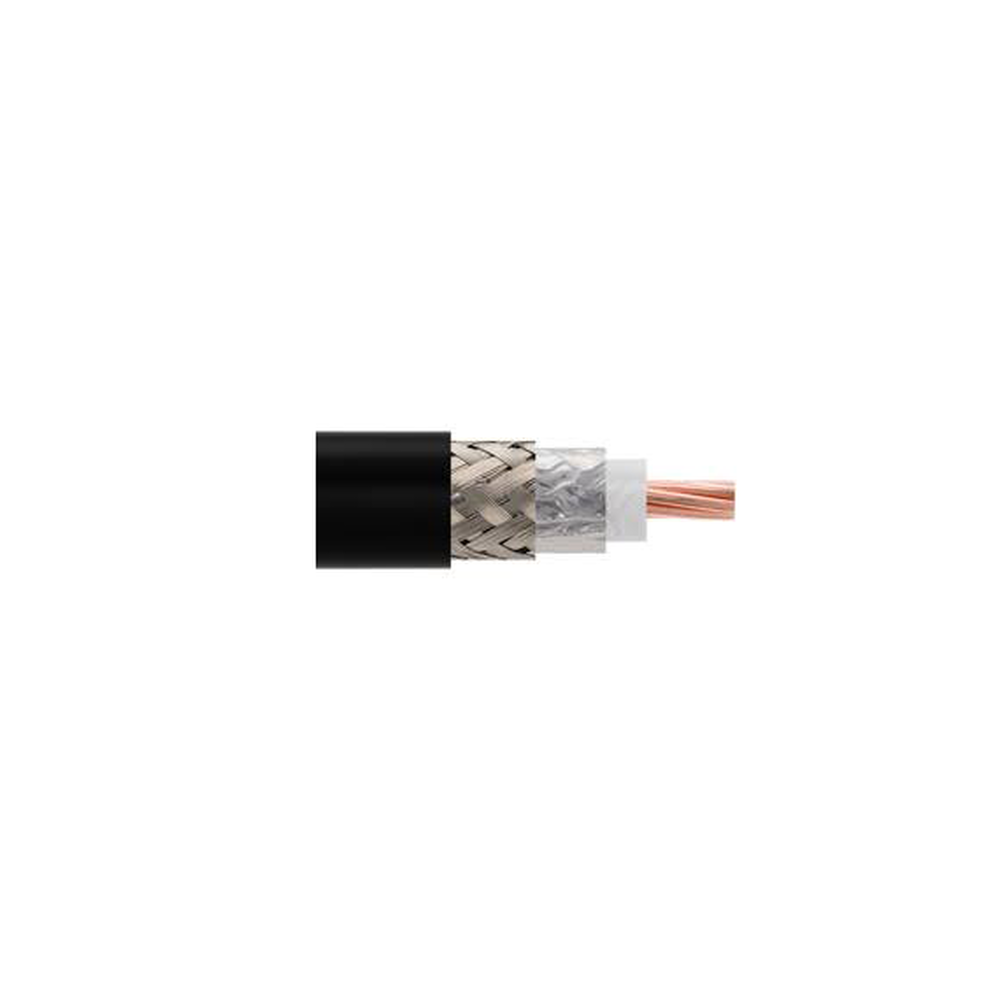

Meter of 1/2" Ultra Flexible 50 Ohm Coaxial Cable

Meter of 1/2" Ultra Flexible 50 Ohm Coaxial Cable

Times LMR Ultra Flexible and low loss coaxial cable, recommended for applications where there are repetitive movements or bending.

Advantages offered by the LMR600UF cable

• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Antenna installation.
• Jumpers for communication systems.
• Any application that requires repetitive movements or bending.

Specs

Impedance: 50 Ohm.
Cable Outer Diameter: 14.99 mm
Speed ​​Factor: 87%.
Inner Conductor Diameter: 4.47 mm.(AWG 5.5).


Center Conductor Material: Solid copper clad aluminum.
Attenuation at 30 mts. at 450 MHz:  1.7 dB.
Attenuation at 30 mts. at 800 MHz: 2.3 dB.
Shielding: Tinned Copper Mesh + 100% Aluminum Laminated Tape
Shielding Effectiveness: greater than 90 dB
Dielectric Insulation: High Density Foamed Polyethylene.
Minimum Bending Radius: 152.4 mm.
Weight per meter: 0.2 Kg.
Maximum Frequency: 6 GHz.
Nominal Power : 1.3 kW at 450 MHz.
Operating Temperature: -40 ºC to +85 ºC.

20 years of service abroad, Tinned copper braid, Super flexible cable
