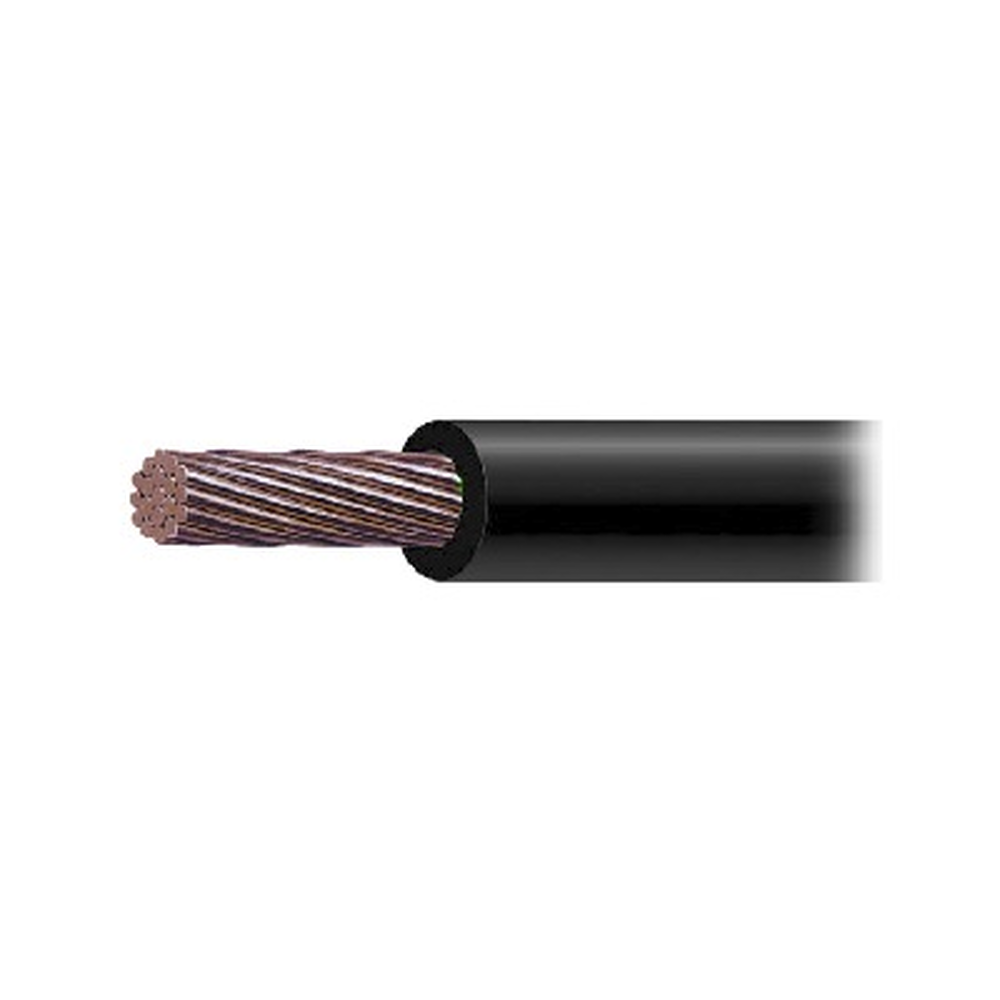

THW-LS Coated Copper Electrical Cable Gauge 3/0 AWG 19 Wires Black Color (100 meters).

THW-LS Coated Copper Electrical Cable Gauge 3/0 AWG 19 Wires Black Color (100 meters).

Soft copper conductor stranded with self-extinguishing PVC insulation. **Sold in 100-meter coils**

Physical Characteristics.

• Gauge: 3/0 AWG (Four Zeros).
• Thread Count: 19.
• Conductor Area: 107 mm².
• Conductor Diameter: 13.41 mm.
• Insulation Thickness: 2.03 mm.
• Outer Diameter: 17 mm.
• Weight per Meter: 1.126 kg.
• Coating Color: Black.
• Presentation: Roll with 100 m.
  Approximate data, subject to manufacturing tolerances.

Specs:
NMX-J-010-ANCE.

Benefits:
Indiana THW-LS Slide-On installs more easily in duct, reducing wiring time.

Applications:
THW-LS high-security conductors are manufactured for reliable use in dry, wet, or oil locations, and installed in duct, conduit, or trays.

Its excellent self-extinguishing properties make it ideal for installation in residential and small commercial buildings.

It is recommended for integration of Physical Earths.

Operating Temperature:
In dry places 90° C. In wet places 75° C.
