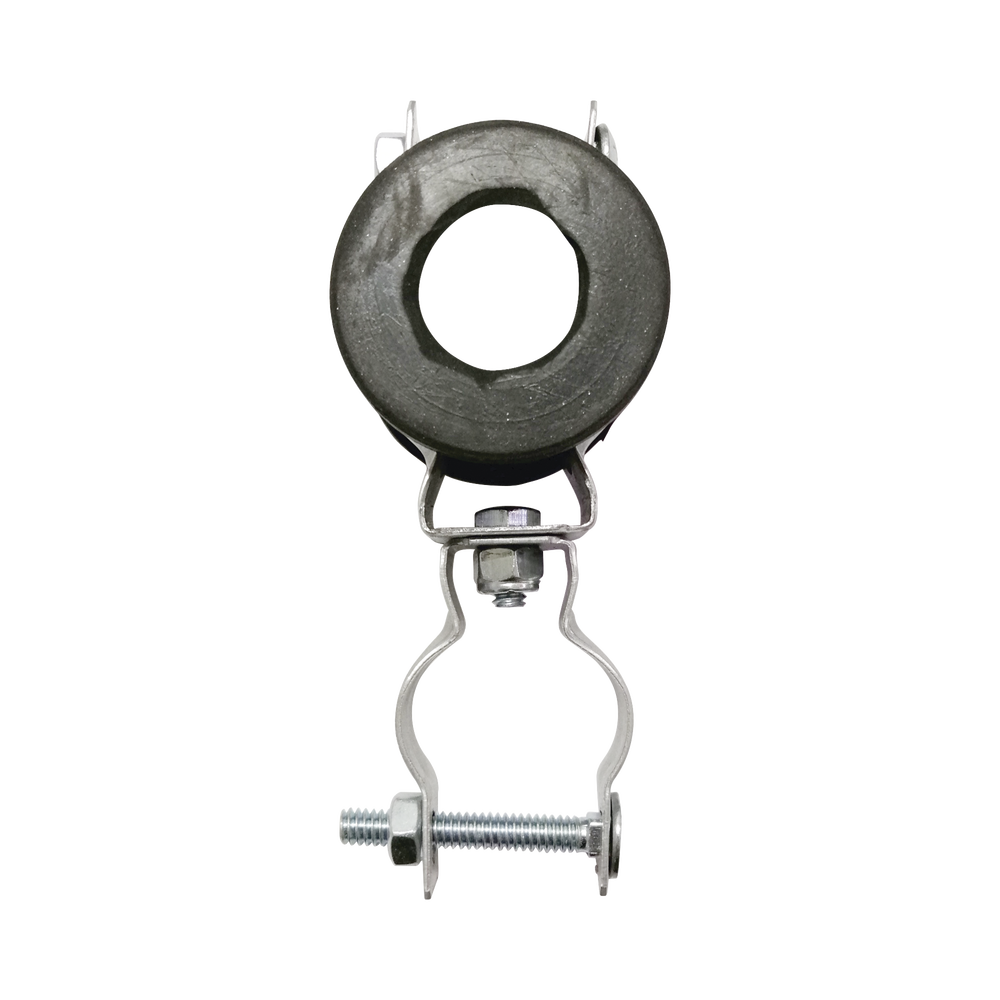

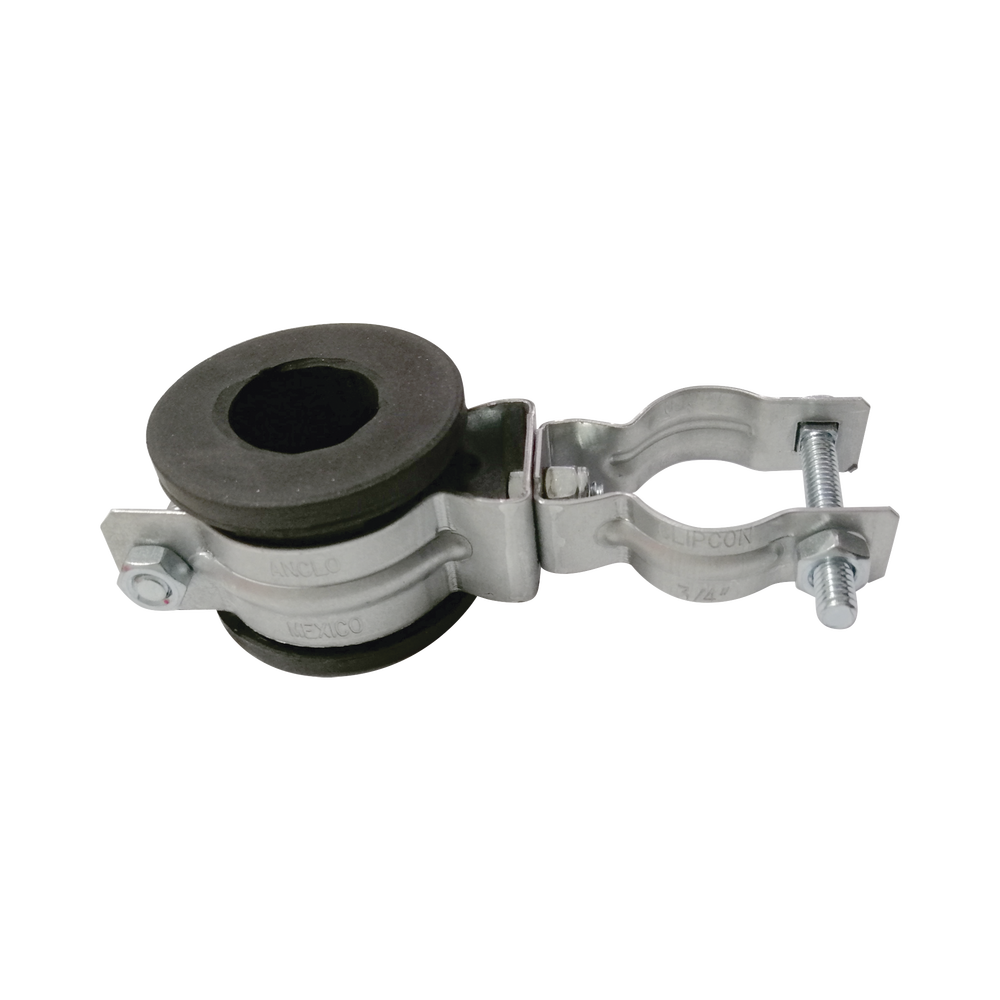

Lightning Rod Down Insulator on Tower STZ30, STZ30G, STZ35, STZ35G, STZ45 and STZ45G

Lightning Rod Down Insulator on Tower STZ30, STZ30G, STZ35, STZ35G, STZ45 and STZ45G

The Tower-Mounted Lightning Rod Drop Isolator is used to protect tower-mounted equipment such as antennas, CCTV cameras, radio frequency antennas, etc. from being damaged by an induction lightning strike.

It provides a separation of 6 to 7 cm between the tower and the drop cable, and can be used to house cables with a maximum gauge of 250 mcm.

Benefits

It provides safe dielectric insulation to prevent direct induction in the discharge phase due to a lightning strike.

Applications

• Guyed towers with CCTV.
• Guyed towers with telecommunications antennas .

Characteristics

Dielectric insulating bushing assembled with hardware for fastening to towers with pipe diameters from 3/4' (STZ30 and STZ30G) to 1 14' (STZ35, STZ35G, STZ45 and STZ45G)
