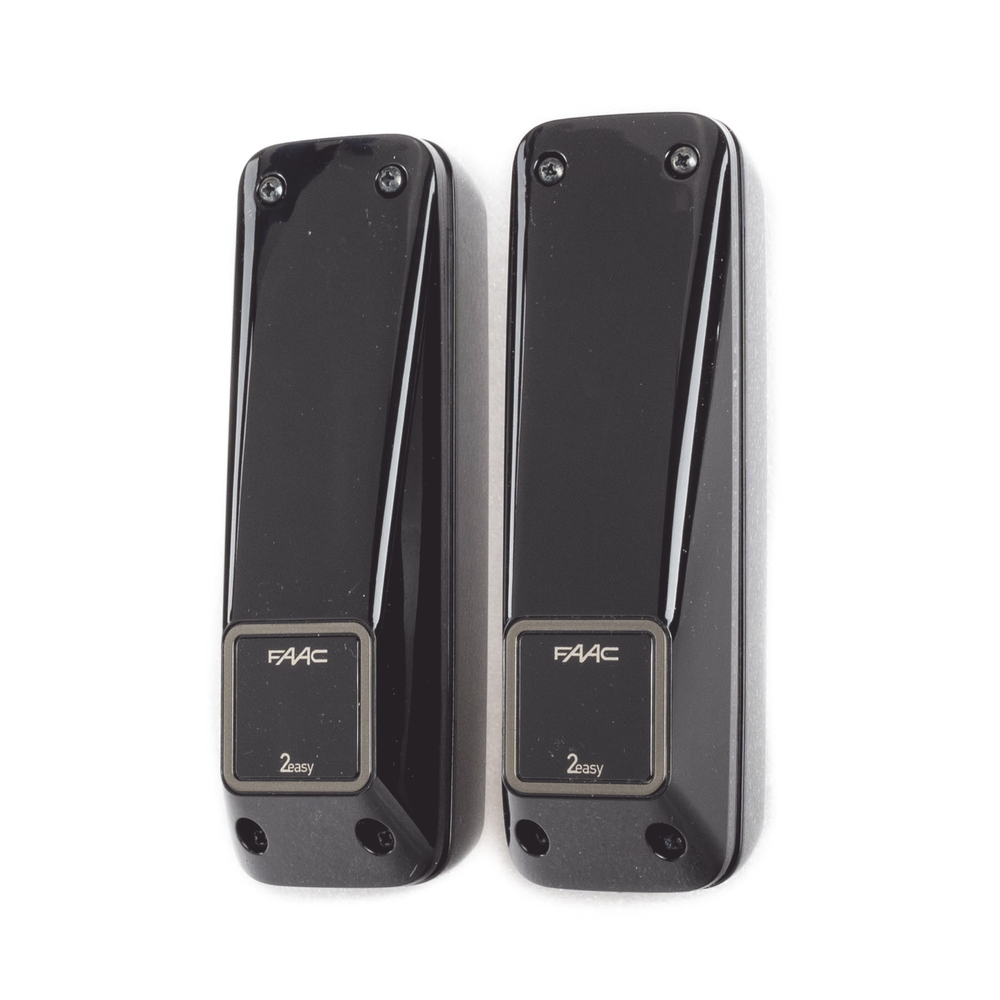

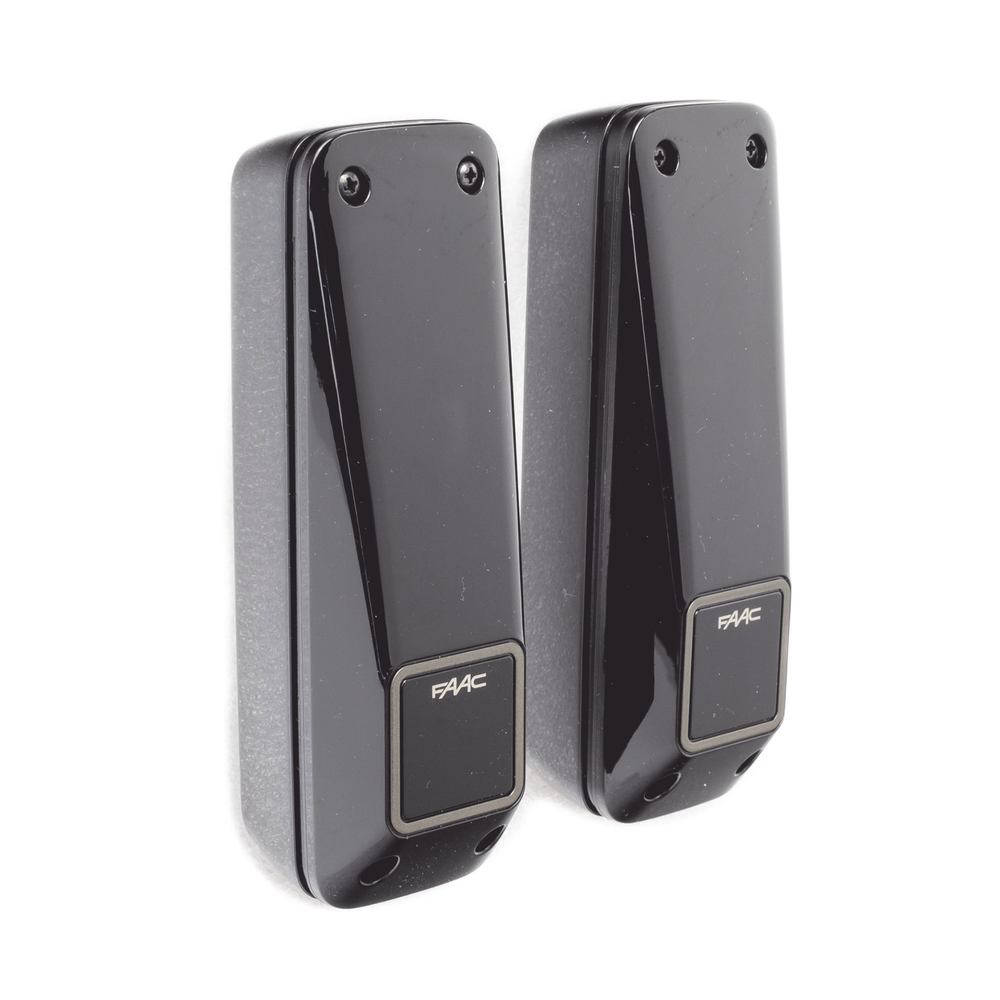

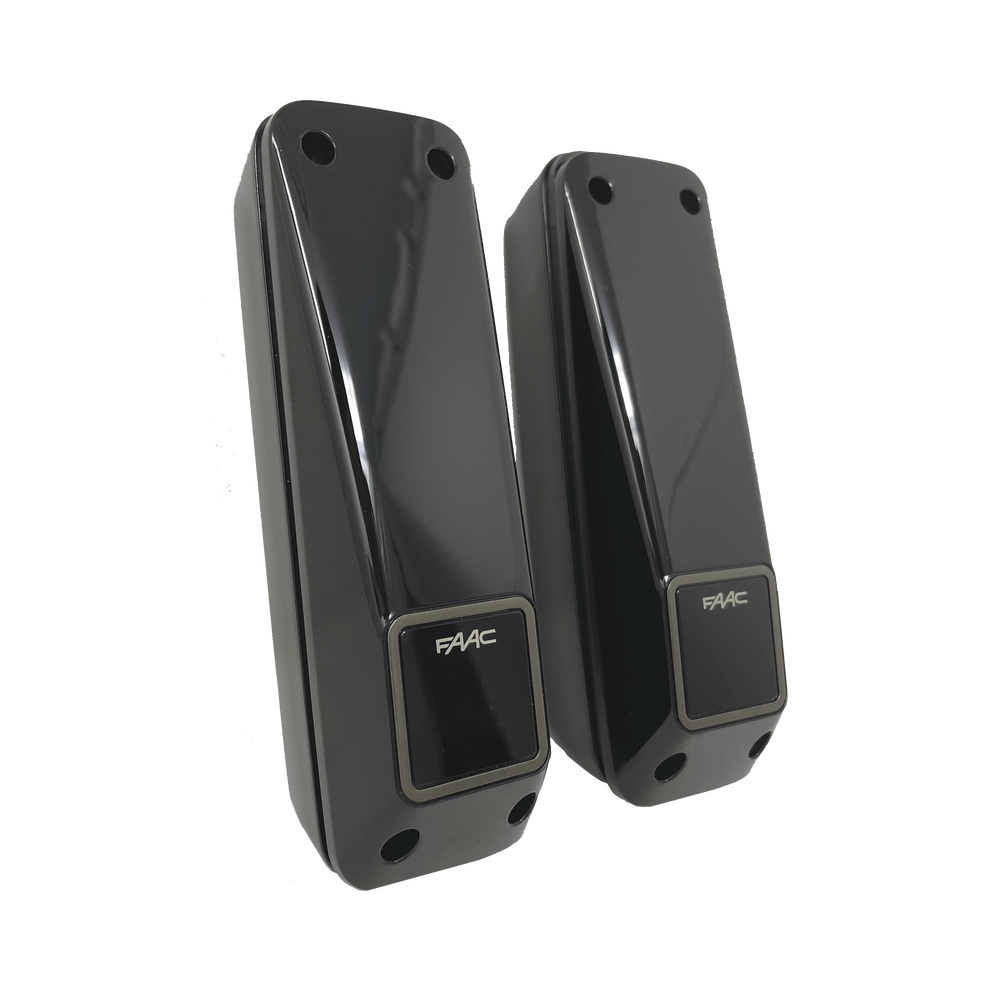

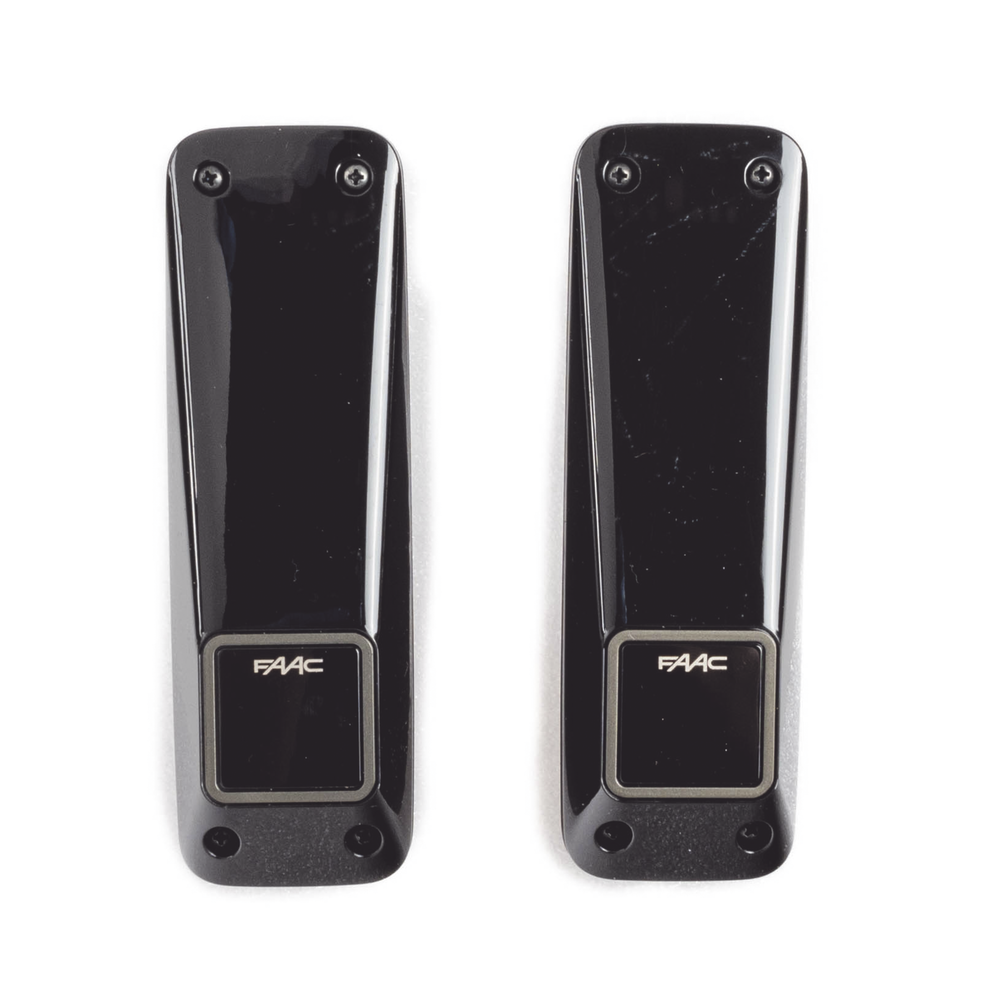

XP20D Infrared Photocell (Transmitter with Receiver) / Range up to 20 meters / Use in vehicle access barriers and motors

XP20D Infrared Photocell (Transmitter with Receiver) / Range up to 20 meters / Use in vehicle access barriers and motors

$456.628 COP
$499.436 COP $456.628 COP
Sale Sold out
Shipping calculated at checkout.

XP20D Infrared Photocell (Transmitter with Receiver) / Range up to 20 meters / Use in vehicle access barriers and motors

Main features:
  • Alignment Mode: Automatic
  • Technology: NC Relay
  • Nominal capacity: 20 m
  • Protection index: IP 54
Physical and Electrical Characteristics:
  • Power supply: 24 Vac / 24 Vdc
  • Consumption: Tx=20 mA, Rx=30 mA
  • Operating temperature: -20°C/+55°C
Highlighted Features:
  • Horizontal mechanical adjustment angle: -90° / +90°
  • Vertical optical self-alignment angle: ±7° (20m) ±13.5° (5m)
  • Compatibility with all motors and vehicle access barriers.

Simple alignment

Allows for up to 180° rotation adjustment on both the transmitter and receiver, making it faster and safer for difficult-to-align installations.

What does the XP20D model include?

  • 1 IR transmitter with COM/NC relay output, requires separate 24 Vac / 24 Vdc power supply.
  • 1 IR receiver, requires separate 24 Vac / 24 Vdc power supply.

    Out of stock

    MODELO: 785102
