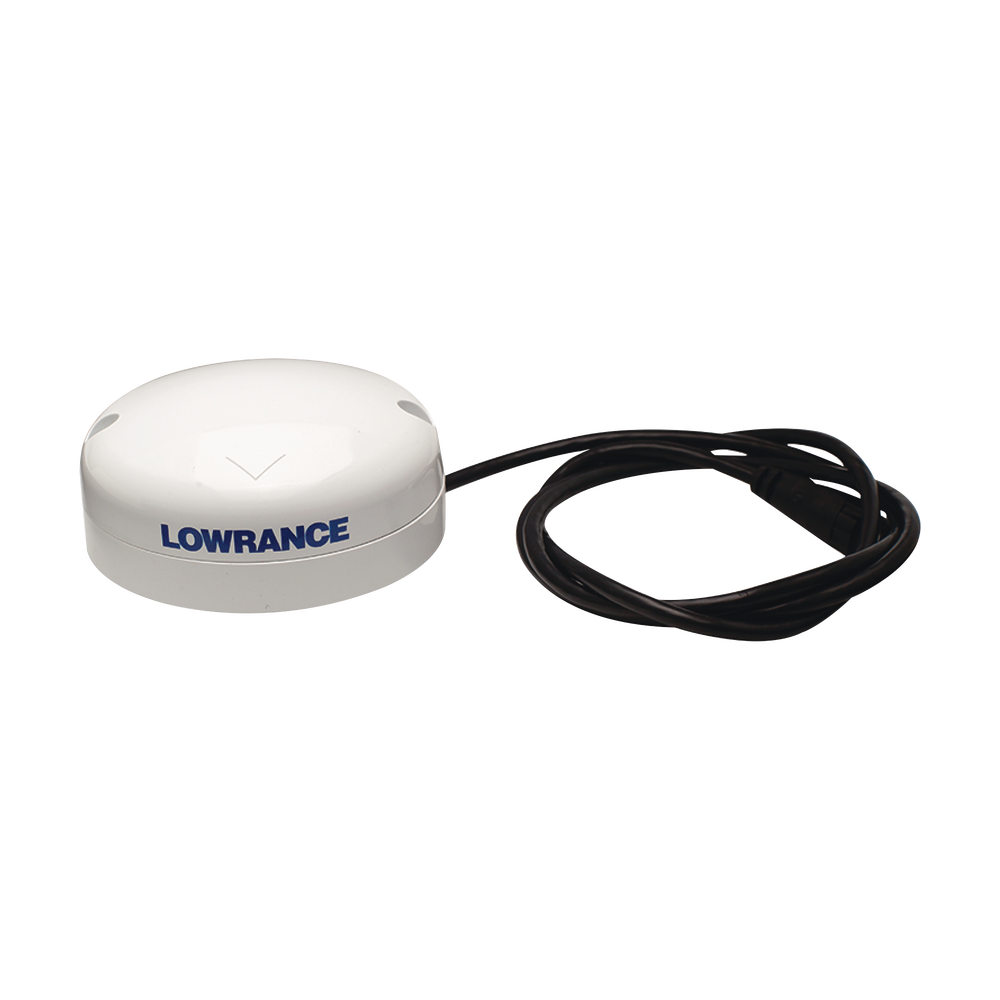

GPS Point-1 antenna with built-in compass

GPS Point-1 antenna with built-in compass

PRECISION GPS / GLONASS RECEIVER WITH ELECTRONIC COMPASS

The Lowrance Point-1 AP is the ideal position and heading device for your Lowrance autopilot. The Point-1 provides extremely accurate and fast boat speed and position updates. Plus, unlike other position-only antennas, the Point-1 provides heading for precise boat steering at any speed and for radar/chart overlays. Key Features

• NMEA 2000® position and heading sensor.
• Supports GPS and GLONASS, compatible with Galileo with future software updates.
• Supports SBAS including WAAS/EGNOS/MSAS.
• 10Hz updates for smooth and precise location.
• The integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate ground tracking even at low speeds.
• Compact and rugged design for all marine environments and fully waterproof.

Specification:

Networks

NMEA 2000 Certification Yes

NMEA 2000 Micro C Connectors

Can

Power supply (supply voltage) 9v-18v

GPS Navigation

GPS receiver 32 channels

Heading accuracy 3 degrees

Horizontal accuracy 5 m

Shift Rate 3 degrees

Satellite Reconditioning <5 seconds

Boot time <3 seconds

Cold start <50 seconds

Pitch / Roll Angle @ 30 degrees 1 degree error

Technical / Environmental

Diameter 90 mm (3.54in)

Product height 38 mm (1.50in)

Product weight 0.3 pounds (approximately)

Includes:

• N2K-T-RD - NMEA 2000® T-connector for connecting additional equipment to the network.
• N2KEXT-15RD - 4.5m NMEA 2000® cable for connection to additional equipment or as a network cable extension.
