TP-LINK

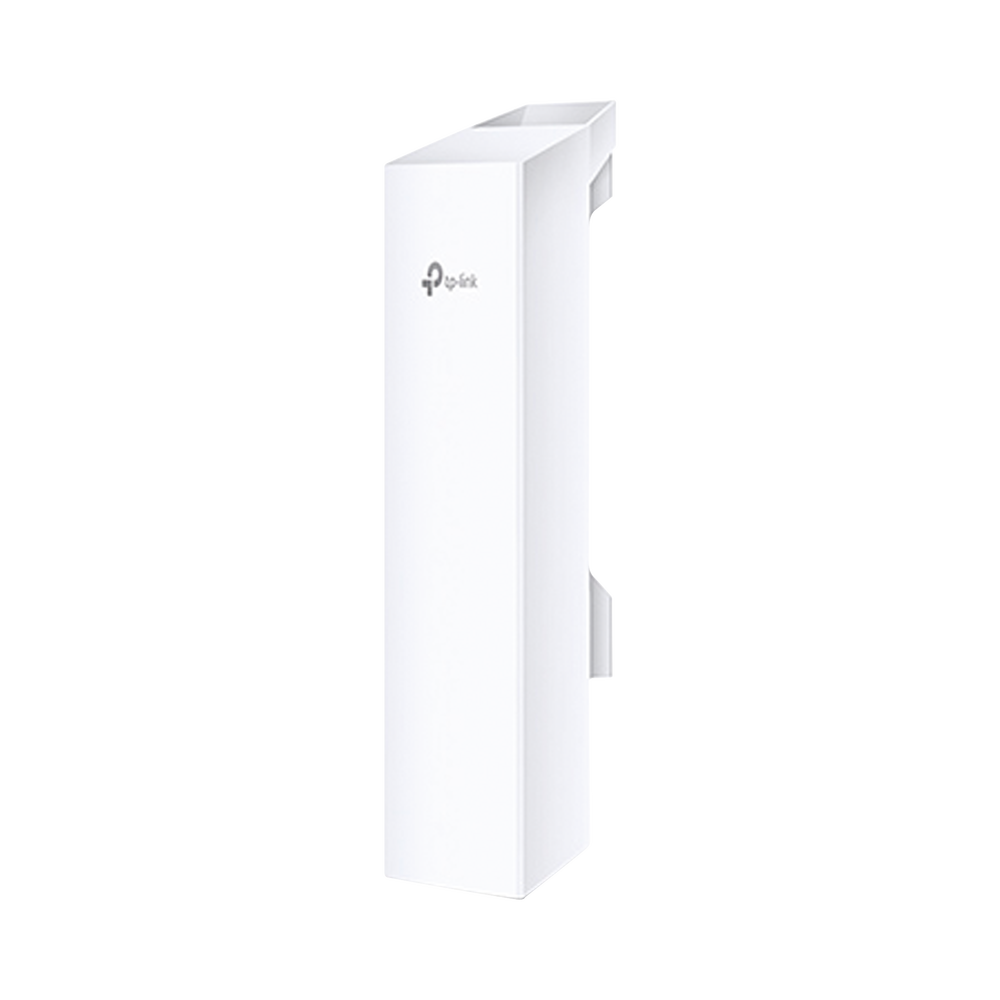

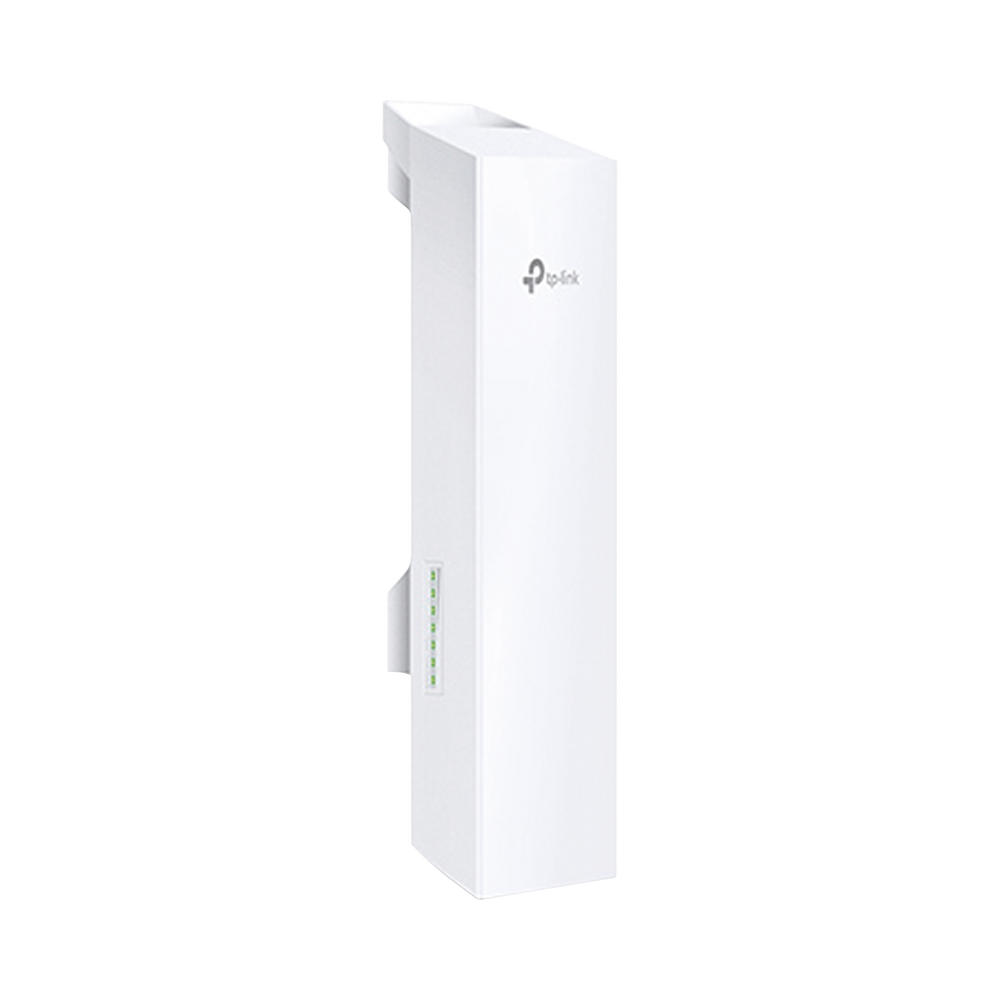

Wi-Fi N Access Point 300Mbps at 2.4GHz, 2 integrated 12dBi antennas, 2X2 MIMO.
Wi-Fi N Access Point 300Mbps at 2.4GHz, 2 integrated 12dBi antennas, 2X2 MIMO.
Regular price
$307.095 COP
Regular price
$332.084 COP
Sale price
$307.095 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Wi-Fi N Access Point 300Mbps at 2.4GHz, 2 integrated 12dBi antennas, 2X2 MIMO.
Outdoor CPE 2.4Gz 300Mbps 12dBi
- Built-in 12dBi 2x2 MIMO directional dual-polarized antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance, capacity and latency performance, ideal for PTMP applications.
- Centralized Management System - Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operating modes
- Passive PoE adapter supports up to 60 meters (200 feet). Power over Ethernet port allows the device to be reset remotely.
| HARDWARE FEATURES | |
|---|---|
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 Shielded Ethernet Port 10/100Mbps (LAN0,Passive PoE in) 1 Shielded Ethernet Port 10/100Mbps 1 Ground terminal 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4.5pins; -7.8pins) Voltage Range: 16-27VDC |
| Energy Consumption | 10.8 Watts Max Note: When implemented using passive PoE, the power obtained from the power supply is higher by a certain amount depending on the length of the connecting cable. |
| Dimensions (WxDxH) | 11×3.1×2.1 inches (276×79×60 mm) |
| Antenna Type | 12dBi 2x2 Dual Polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, refer to the data sheet. |
| Protection | 15KV ESD Protection 6KV lightning protection |
| Fenced | The outdoor ASA stabilizes the plastic material IPX5 waterproof certification |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Owner Protocol | TDMA mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic) |
| Frequency | 2.4~2.483GHz Note: The available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power | 30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmit power may vary across different channels depending on under the limitations of the countries or regions in which the device is used. |
| SOFTWARE FEATURES | |
|---|---|
| Wireless Settings | Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Administration | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent (v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| System tools | Wireless Signal Quality Indicators: Signal Strength/Noise/CCQ Transmission/CPU/Memory Monitors: Performance/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| System Level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| POE ADAPTER FEATURES | |
|---|---|
| Dimensions (W x D x H) | 110×57×33.5mm |
| Interfaces | 1 AC Jack with ground 1 Shielded Ethernet Port 10/100Mbps/1000Mbps (Power + Data) 1 Shielded Ethernet Port 10/100Mbps/1000Mbps (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | 0~0.8A: Green 0.8A~1.0A: Red |
| Input | 100-240VAC, 50/60Hz |
| Input Voltage | 100VA~240VAC @ 50Hz~60Hz |
| Input Current | 0.8A Max @ 100VAC |
| Output | 24VDC, 1.0A Max +4, 5 pins; -7, 8 pins. (Supports up to 60m Power over Ethernet) |
| Output Voltage | 24VDC(+4.5pins; -7.8pins) |
| Efficiency | >80% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IPX5 |
| Package Contents | Wireless Outdoor CPE Passive PoE Adapter 24V 1A Pole Mount Straps AC power cable Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend using one of the following web browsers for the best experience: Google Chrome, Safari, and Firefox. Internet Explorer is not recommended. |
| Atmosphere | Operating Temperature: -40°C~70°C (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Share
Out of stock
MODELO: CPE220
