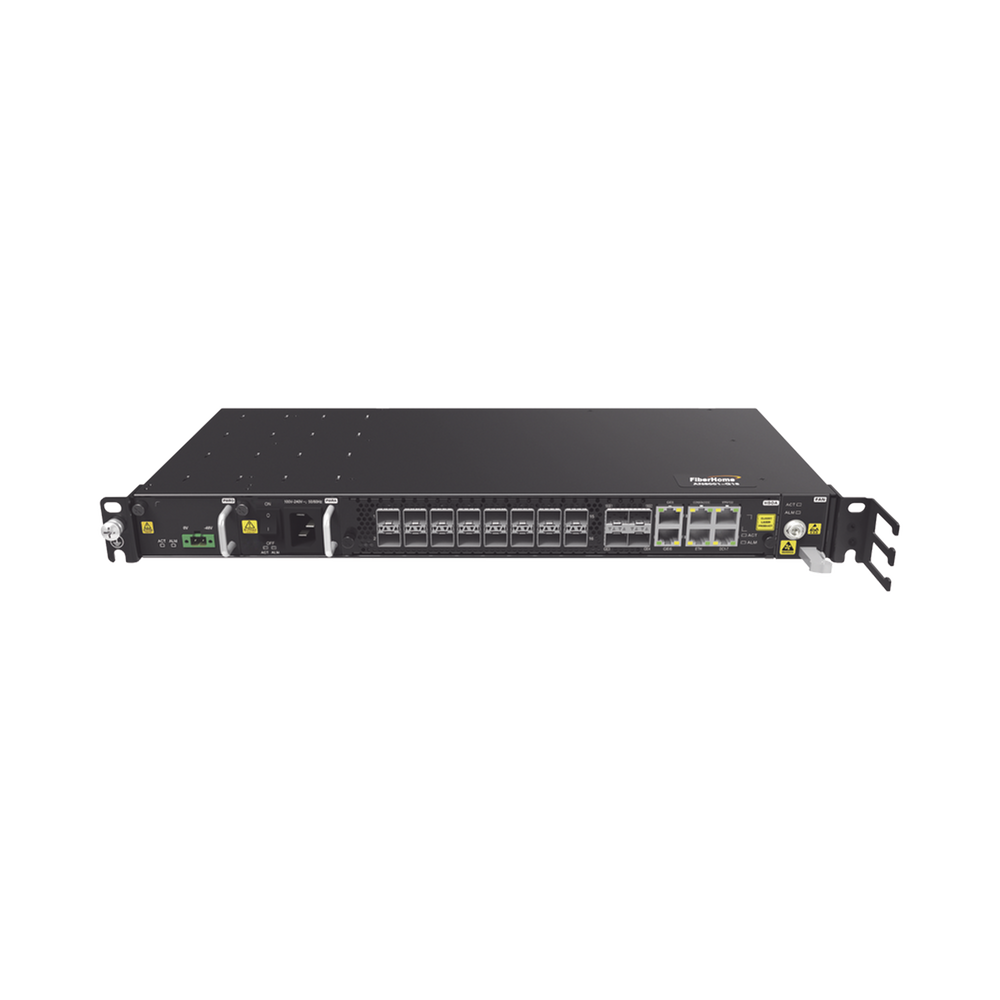

Carrier Class Mini OLT with 16 GPON Ports Service Card, Dual Redundant AC+DC Power Supply, 1RU
Carrier Class Mini OLT with 16 GPON Ports Service Card, Dual Redundant AC+DC Power Supply, 1RU
Couldn't load pickup availability
Carrier Class Mini OLT with 16 GPON Ports Service Card, Dual Redundant AC+DC Power Supply, 1RU
The FiberHome Mini OLT is a compact, high-performance device. It features an included 16-port GPON service card and is designed to connect up to 2,048 ONTs or ONUs (clients), using 1:64 or 1:128 splitters. It complies with international standards ITU-T G.984 and IEEE 802.3ah.
Applications:
- Internet providers with FTTH technology
- Compatible with VoIP, TDM, Data, IPTV, and CATV
Design:
- Standard 19in 1 Rack Unit for universal mounting
- Up to 2048 UNs (recommended up to 1024 UNs)
- Hot Plug connection on all PON ports
- Throughput: 88 Gbps
- Includes service card with 16 GPON ports, 2 Gigabit Uplink SFP ports, 2 10GE Uplink (SFP+) ports and 2 Gigabit Uplink RJ45 ports
- 2 Power supplies with 1+1 redundancy, 1 of -48 VDC and another of 100-240 VAC
- Maximum consumption: 90W
Important Note: GUI administration and configuration requires an Operation and Maintenance software license (UNM2000 or UNM2000/500). Consult with the Engineering Department.
Installation: For proper heat dissipation, you need a free rack unit at the top and bottom.
A maximum of 3 OLTs can be installed in a cabinet:
Main Features:
Classification |
Function |
Layer 2 switching functions |
Supports 802.1Q VLAN. |
Supports selective QinQ (VLAN Stacking). | |
| Supports setting MAC address aging time for OLT and ONU. | |
Supports dynamic Layer 2 port aggregation and implements LACP. | |
Port Mirroring |
Supports port mirroring input and output. |
Supports Flow mirroring function. | |
| Port Aggregation |
Supports IEEE 802.3ad protocol. |
Supports LACP static or dynamic port aggregation. | |
Port Isolation |
Supports GPON port isolation. |
| Supports uplink port isolation. | |
QoS functions |
Supports 4-level HQoS functions. |
Supports IPv4/IPv6 QoS. | |
Multicast Functions |
Supports IGMP Proxy/Snooping and MLD Proxy. |
Supports IGMP V1/V2/V3 and MLD V1/V2 protocols. | |
Supports multicast VLAN. | |
Voice Functions |
Supports VoIP voice service. |
Supports H.248 and SIP protocols . | |
Supports PPPoE configuration. | |
Supports DHCP configuration. | |
| Supports voice intercom within the PON port. | |
Layer 3 Functions |
Supports Layer 3 VLAN interface. |
Supports proxy ARP. | |
Supports DHCP Relay, DHCP Snooping and DHCP Server. | |
| Rogue DHCP Server Isolation. | |
Supports OSPF-based dynamic routing. | |
Supports static routing. | |
Line identification function |
Supports DHCPv6 Option18/Option37 relay agent function. |
Supports DHCP option82 and PPPoE+. | |
Network functions |
Supports cascading over Ethernet networks. |
Supports Bi-Directional Forwarding Detection (BFD). | |
| Supports STP protocol (IEEE802.1D), RSTP protocol (IEEE 802.1w) and MSTP protocol (IEEE 802.1s). | |
Supports ERPS function. | |
Operation and maintenance |
Supports remote operation and user management. |
Out of stock
MODELO: AN6001-G16-KIT
