Dual OS Switch 24 Gigabit Ethernet Ports and 2 SFP+ Ports, For Desktop
Dual OS Switch 24 Gigabit Ethernet Ports and 2 SFP+ Ports, For Desktop
Couldn't load pickup availability
Dual OS Switch 24 Gigabit Ethernet Ports and 2 SFP+ Ports, For Desktop
A home network setup doesn't have to be a compromise. This compact and quiet switch boasts some serious server-room-grade features: a pair of 10G SFP+ cages, 512MB of RAM, 24 Gigabit Ethernet ports, and a built-in CPU large enough to handle basic home user needs, including firewalls, NATs, and even VPNs. And it's extremely affordable—we've kept the price on par with previous-generation desktop switches!

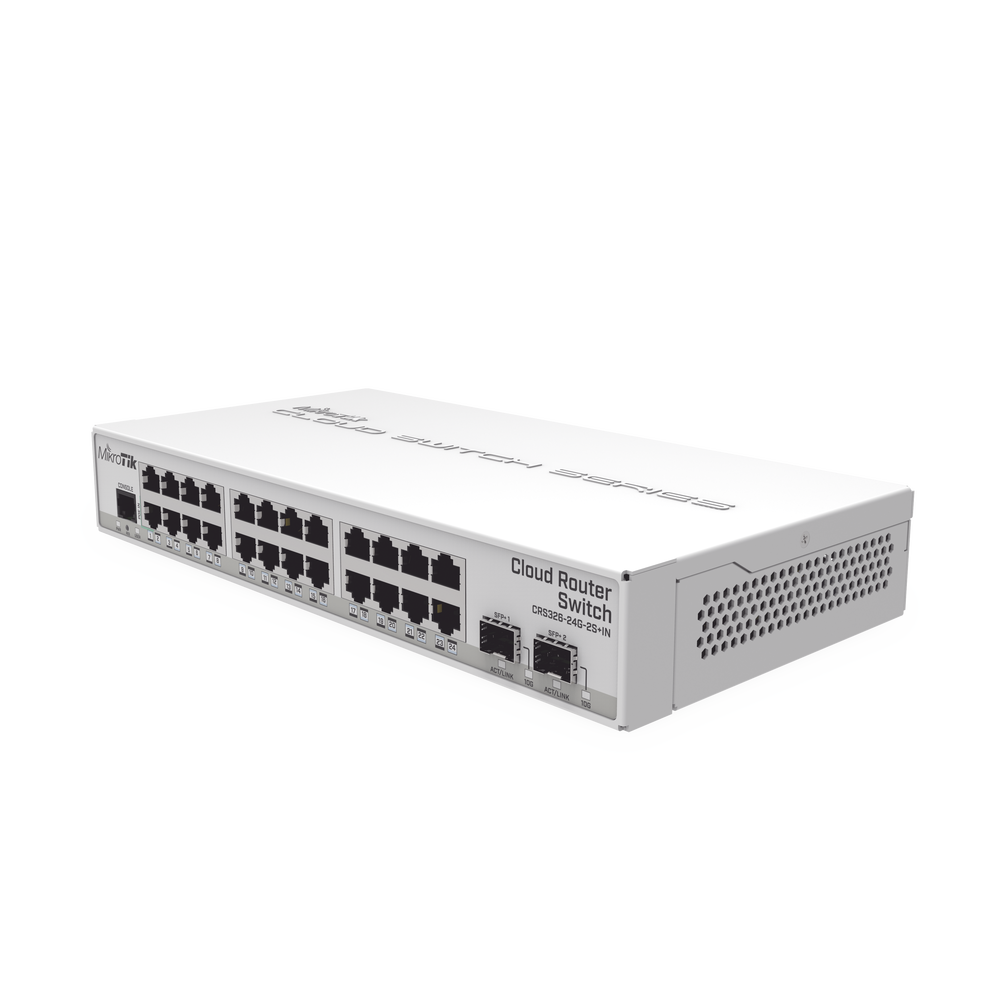

Like many other MikroTik switches, the CRS326-24G-2S+IN offers the dual-boot option, allowing you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to even the finest home setups. And it's very easy to transport! But make no mistake: this tiny switch has all the power and features of its larger rackmount analog, the CRS326-24G-2S+RM—nothing has been removed!
The CRS326-24G-2S+IN provides all the basic functionality of a managed switch, plus more: port-to-port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limiting, and even the ability to adjust some MAC and IP header fields. The SFP+ cage supports both 1.25G and 10G SFP+ modules.
Specs
| Details | |
|---|---|
| Product code | CRS326-24G-2S+IN |
| Architecture | ARM 32-bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| Nominal CPU frequency | 800 MHz |
| Dimensions | 285 x 144 x 44 mm |
| RouterOS License | 5 |
| Operating system | RouterOS / SwitchOS |
| RAM size | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200,000 hours at 25C |
| Room temperature tested | -40 °C to 60 °C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE on input voltage | 10-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC connector input voltage | 10-30 V |
| Maximum energy consumption | 21 W |
| Fan count | Passive |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Certification and approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
Ethernet test results
| CRS326-24G-2S+INr2 | 98DX3236 all port test | ||||||
| Mode | Configuration | 1518 bytes | 512 bytes | 64 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104.3 | 1266.6 | 273.5 | 1120.3 | 449 | 229.9 |
| Bridging | 25 bridge filter rules | 104 | 1263.0 | 104.6 | 428.4 | 104.5 | 53.5 |
| Routing | none (fast path) | 104.3 | 1266.6 | 273.9 | 1121.9 | 343.5 | 175.9 |
| Routing | 25 simple queues | 104.3 | 1266.6 | 136.9 | 560.7 | 137.4 | 70.3 |
| Routing | 25 IP filter rules | 64.8 | 786.9 | 65.9 | 269.9 | 65.8 | 33.7 |
Parts included
Out of stock
MODELO: CRS326-24G-2S+IN
