MIKROTIK
(CRS309-1G-8S+IN) Dual OS Managed Switch, 1G RJ45 Port, 8 10G SFP+ Ports for Desktop
(CRS309-1G-8S+IN) Dual OS Managed Switch, 1G RJ45 Port, 8 10G SFP+ Ports for Desktop
Regular price
$2.066.747 COP
Regular price
$2.020.170 COP
Sale price
$2.066.747 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
(CRS309-1G-8S+IN) Dual OS Managed Switch, 1G RJ45 Port, 8 10G SFP+ Ports for Desktop

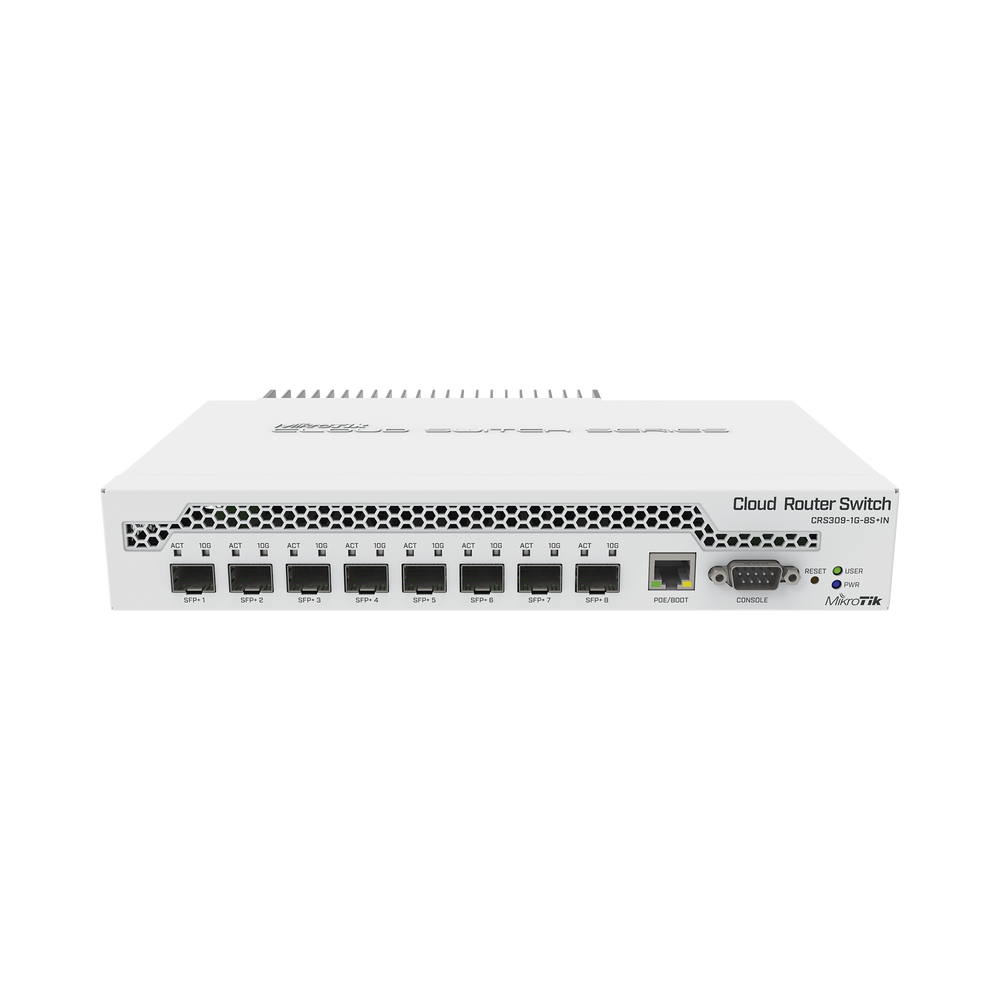

The CRS309-1G-8S+ is a very compact yet powerful network switch. It has eight SFP+ slots, each supporting up to 10 Gbps, resulting in a total switching capacity of 162 Gbps and a total non-blocking throughput of 81 Gbps.
The device also has a dual-core 800MHz CPU, 512MB of RAM, a management Ethernet port with PoE power input, RS232 serial port, a ground terminal, and is capable of dual booting (choose which OS you prefer, RouterOS or SwOS).
Specs
| Details | |
|---|---|
| Product code | CRS309-1G-8S+IN |
| Architecture | ARM 32-bit |
| CPU | 98DX8208 |
| CPU core count | 2 |
| Nominal CPU frequency | 800 MHz |
| Dimensions | 272 x 191 x 44 mm |
| RouterOS License | 5 |
| Operating system | RouterOS / SwitchOS |
| RAM size | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200,000 hours at 25C |
| Room temperature tested | -40 °C to 70 °C |
Feeding
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE on input voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC connector input voltage | 12-57 V |
| Maximum energy consumption | 23 W |
| Maximum power consumption without accessories | 17 W |
| Fan count | Passive |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 8 |
Peripherals
| Details | |
|---|---|
| Serial port | RS232 |
Other
| Details | |
|---|---|
| CPU Temperature Monitor | Yeah |
Certification and approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
Ethernet test results
| CRS309-1G-8S+IN | 98DX8208 all port test | ||||||
| Mode | Configuration | 1518 bytes | 512 bytes | 64 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 217.5 | 2641.3 | 231.1 | 946.6 | 243.6 | 124.7 |
| Bridging | 25 bridge filter rules | 117.4 | 1425.7 | 117.4 | 480.9 | 145.2 | 74.3 |
| Routing | none (fast path) | 207.6 | 2521.1 | 217.6 | 891.3 | 229.5 | 117.5 |
| Routing | 25 simple queues | 121.1 | 1470.6 | 122.7 | 502.6 | 145.2 | 74.3 |
| Routing | 25 IP filter rules | 83.6 | 1015.2 | 83.1 | 340.4 | 88.9 | 45.5 |
Share
Out of stock
MODELO: CRS309-1G-8S+IN
View full details
