(netPower 16P) Dual OS Managed Switch, 16 PoE Ports, 2 10G SFP+ Ports for Outdoor
(netPower 16P) Dual OS Managed Switch, 16 PoE Ports, 2 10G SFP+ Ports for Outdoor
Couldn't load pickup availability
(netPower 16P) Dual OS Managed Switch, 16 PoE Ports, 2 10G SFP+ Ports for Outdoor

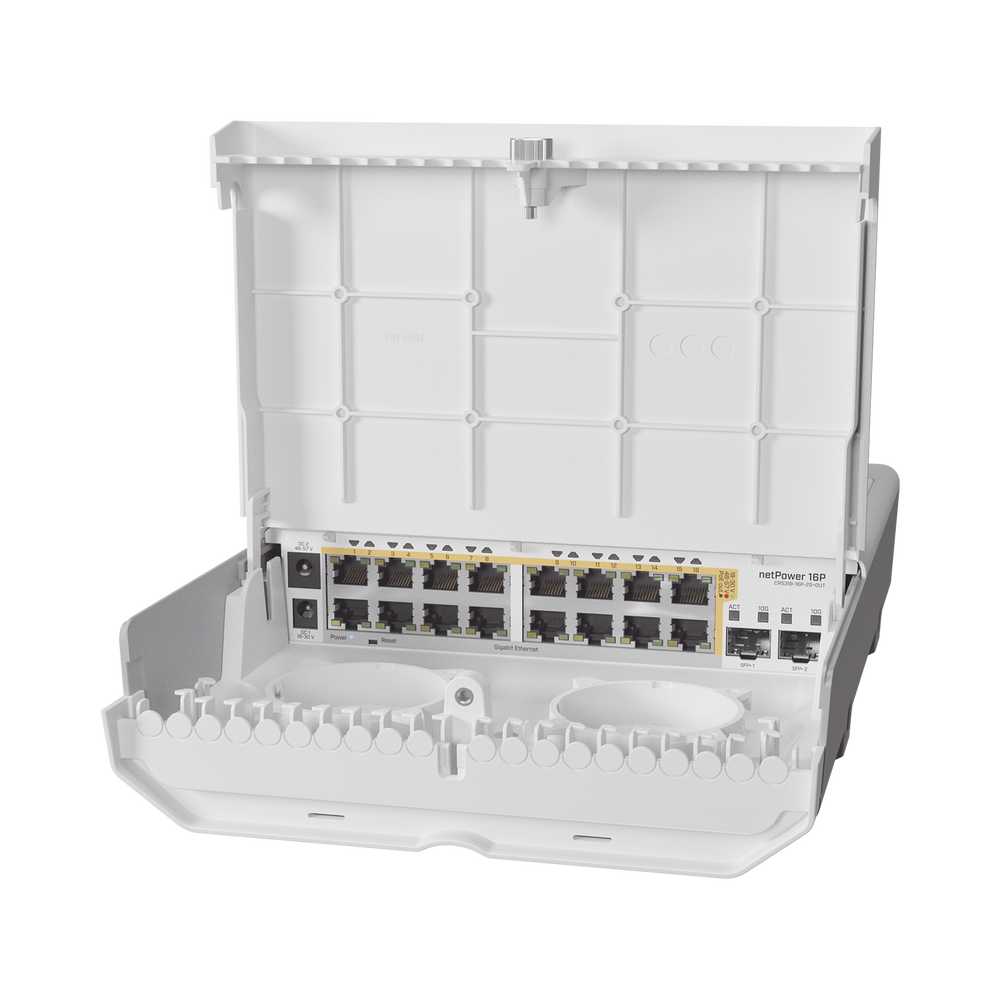

Powering a multitude of access points or IP cameras and a few uplinks on a tower has never been easier. The netPower 16P has 16 Gigabit Ethernet ports with PoE output and two SFP+ ports for 10G fiber uplinks.

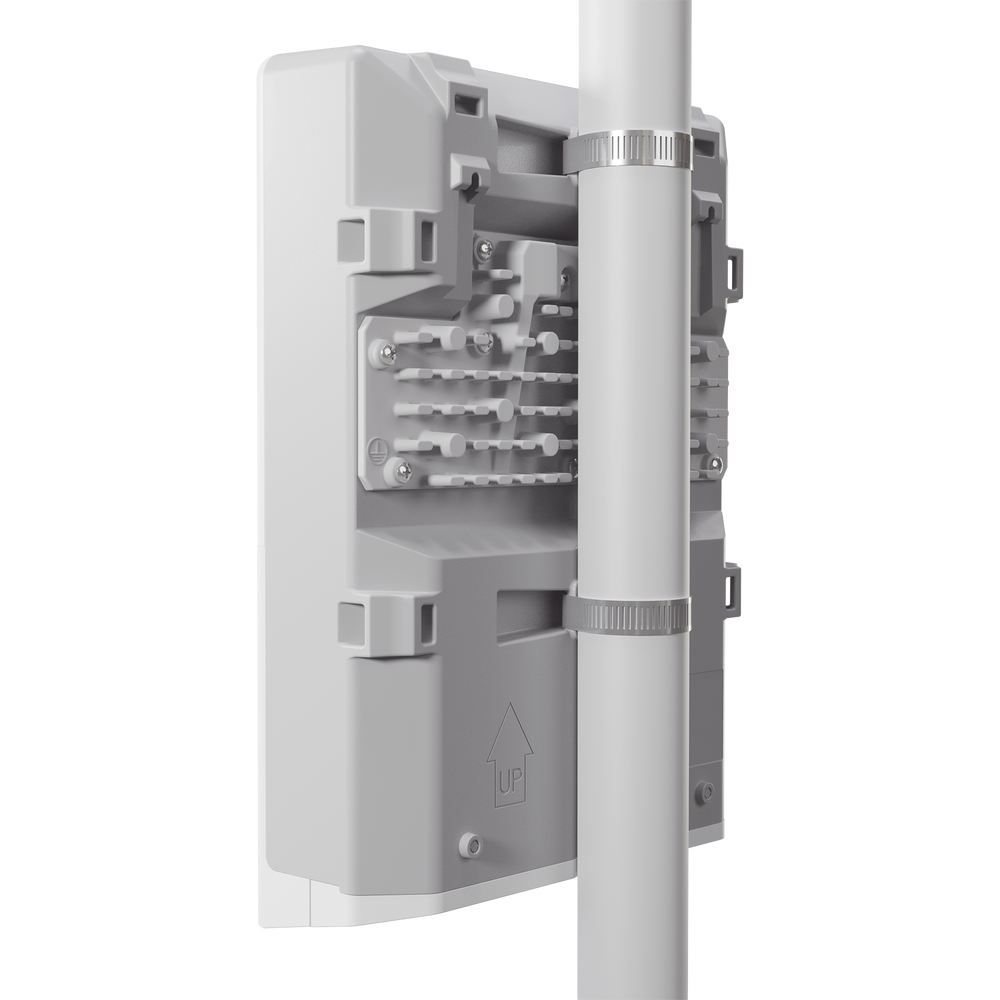

Its rugged and compact outer casing allows the switch to be mounted in all types of environments, from wet attics and shafts to towers, masts, and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, a switching capacity of 72 Gbps, and a forwarding rate of 53.6 Mpps.
The device itself does not have a built-in voltage converter. It requires a 24V power supply for 24V power point output and/or a 48V power supply for 48V power point output (IEEE 802.3 at/af).
* The power supply is NOT included. Feel free to use your preferred power source, such as a battery, etc. Also compatible with MikroTik 24HPOW, 48POW, and 48V2A96W power supplies.
Specs
| Details | |
|---|---|
| Product code | CRS318-16P-2S+OUT |
| Architecture | ARM 32-bit |
| CPU | 98DX226S |
| CPU core count | 1 |
| Nominal CPU frequency | 800 MHz |
| Dimensions | 303 x 212 x 78 mm |
| RouterOS License | 5 |
| Operating system | RouterOS/SwitchOS |
| RAM size | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200,000 hours at 25C |
| Room temperature tested | -40 °C to 70 °C |
Feeding
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack) |
| DC connector input voltage | 18-30 V / 48-57 V |
| Maximum energy consumption | 316 W |
| Maximum power consumption without accessories | 16 W |
| Fan count | Passive |
PoE-out
| Details | |
|---|---|
| PoE output ports | Ether1-Ether16 |
| PoE out | 802.3af/at |
| Maximum output per port (input < 30 V) | 1.1 A |
| Maximum output per port (input > 30 V) | 0.6 A |
| Maximum total (A) | 2.8A (18V-30V) and 1.4A (48V-57V) x2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 16 |
| Number of 1G Ethernet ports with PoE output | 16 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Other
| Details | |
|---|---|
| CPU Temperature Monitor | Yeah |
| Voltage monitor | Yeah |
Certification and approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
Parts included
The device comes with a pre-installed and licensed operating system. No separate purchase is required, and the product is ready to use. The device includes free software updates for the life of the product, or for a minimum of 5 years from the date of purchase.
- Dual RouterOS/SwitchOS operating system, 4 10G SFP+ ports, 802.3af/at power
Out of stock
MODELO: CRS318-16P-2S+OUT
