MIKROTIK
(CRS328-4C-20S-4S+RM) Cloud Router Managed Switch L3, 4 TP/SFP combo ports, 20 SFP ports, 4 SFP+ ports
(CRS328-4C-20S-4S+RM) Cloud Router Managed Switch L3, 4 TP/SFP combo ports, 20 SFP ports, 4 SFP+ ports
Couldn't load pickup availability
(CRS328-4C-20S-4S+RM) Cloud Router Managed Switch L3, 4 TP/SFP combo ports, 20 SFP ports, 4 SFP+ ports

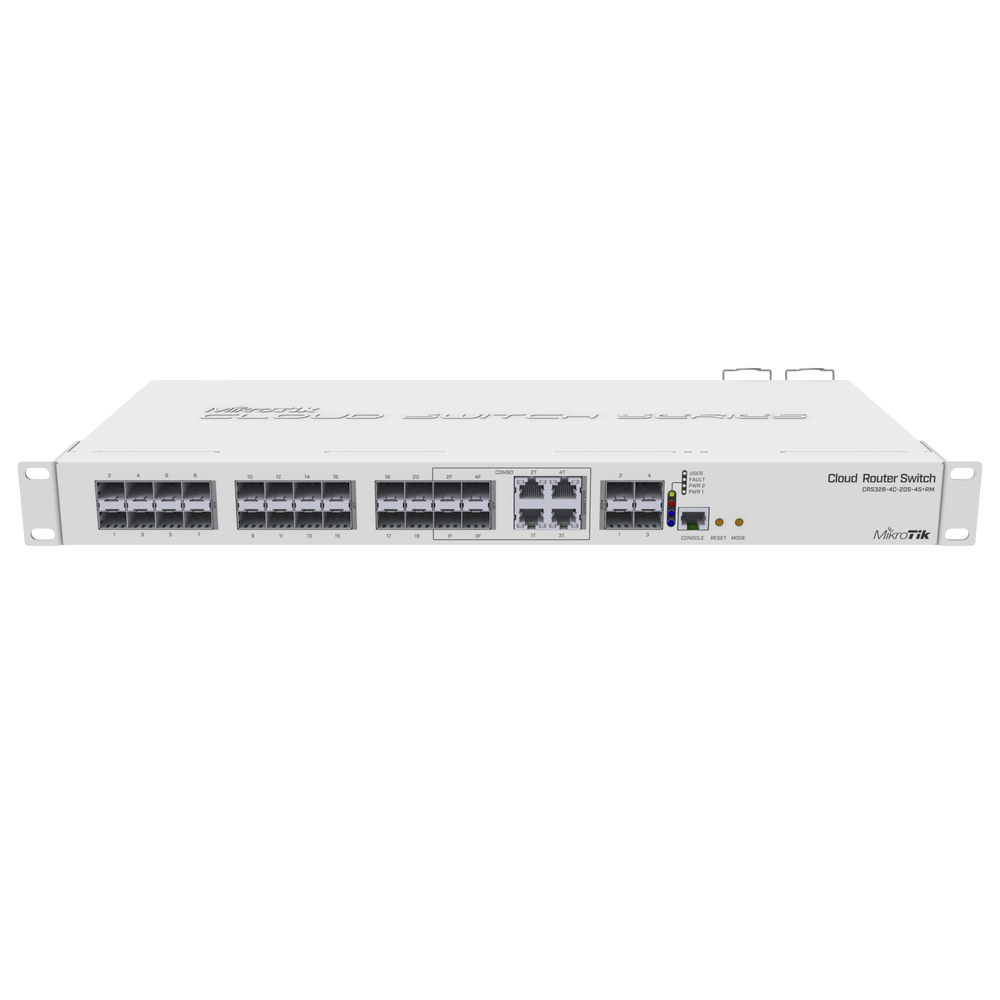

The CRS328-4C-20S-4S+RM is a 28-port standalone switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules, and four combo ports, where you can choose to use either SFP or RJ45 ports from the combo group. These ports are also software-selectable, so if you've connected all eight cables, you can use scripting to decide which four combo ports will be active.

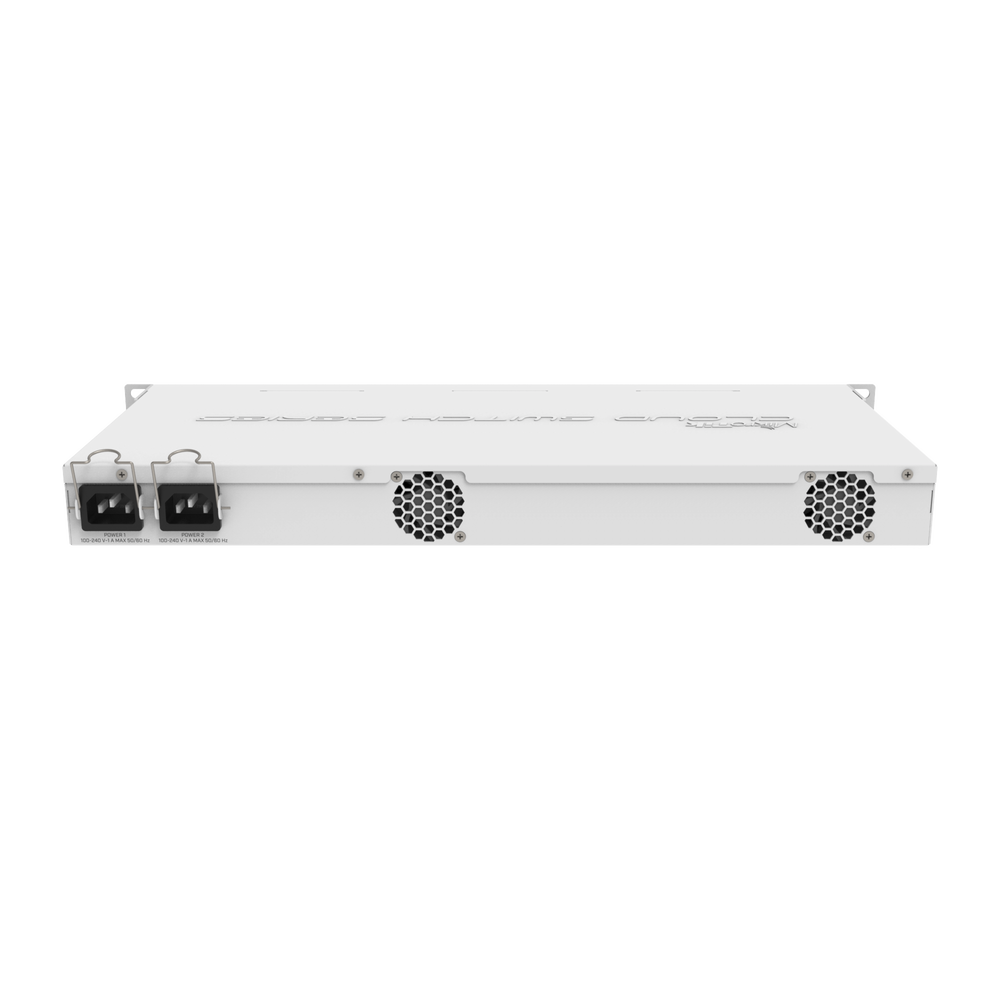

The device comes in a 1U rack-mount case with dual 100-240V power supplies with failover functionality. An RJ45 console port is available for management and debugging, and a mode button can be customized to execute any RouterOS command.
The device has a "dual boot" feature that allows you to choose between two operating systems: RouterOS or SwOS.
Specs
Details | |
---|---|
Product code | CRS328-4C-20S-4S+RM |
Architecture | ARM 32-bit |
CPU | 98DX3236 |
CPU core count | 1 |
Nominal CPU frequency | 800 MHz |
Dimensions | 443 x 194 x 44 mm |
RouterOS License | 5 |
Operating system | RouterOS / SwitchOS |
RAM size | 512 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200,000 hours at 25C |
Room temperature tested | -20 °C to 60 °C |
Feeding
Details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Maximum energy consumption | 43 W |
Fan count | Passive |
Ethernet
Details | |
---|---|
Ethernet Combo Ports | 4 |
Fiber
Details | |
---|---|
SFP ports | 20 |
SFP+ ports | 4 |
Peripherals
Details | |
---|---|
Serial port | RJ45 |
Other
Details | |
---|---|
CPU Temperature Monitor | Yeah |
Voltage monitor | Yeah |
Mode button | Yeah |
Certification and approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
Parts included
The device comes with a pre-installed and licensed operating system. No separate purchase is required, and the product is ready to use. The device includes free software updates for the life of the product, or for a minimum of 5 years from the date of purchase.
