• (ACUSENSE / Evita Falsas Alarmas) DVR 4 Megapixel / 4 Canales TURBOHD + 2 Canales IP / 1 Bahía de Disco Duro / Audio Coaxitron
1 4

HIKVISION

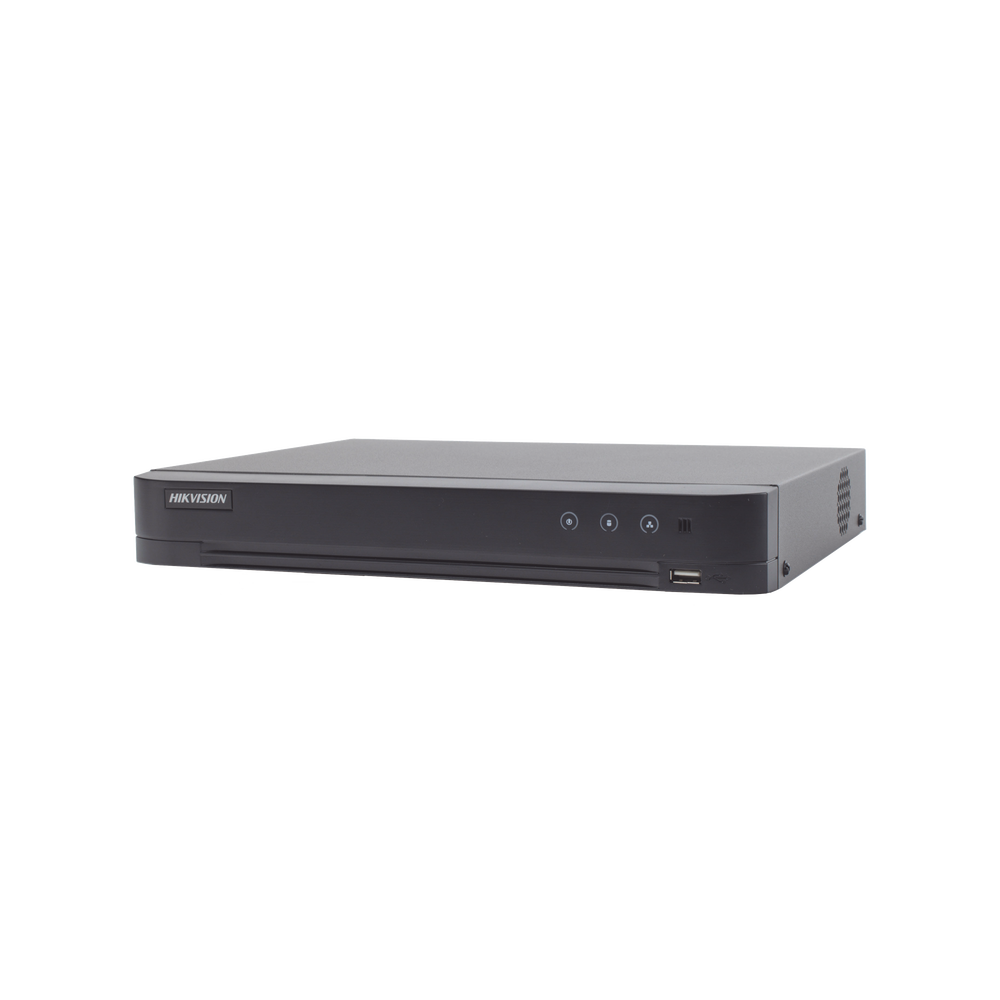

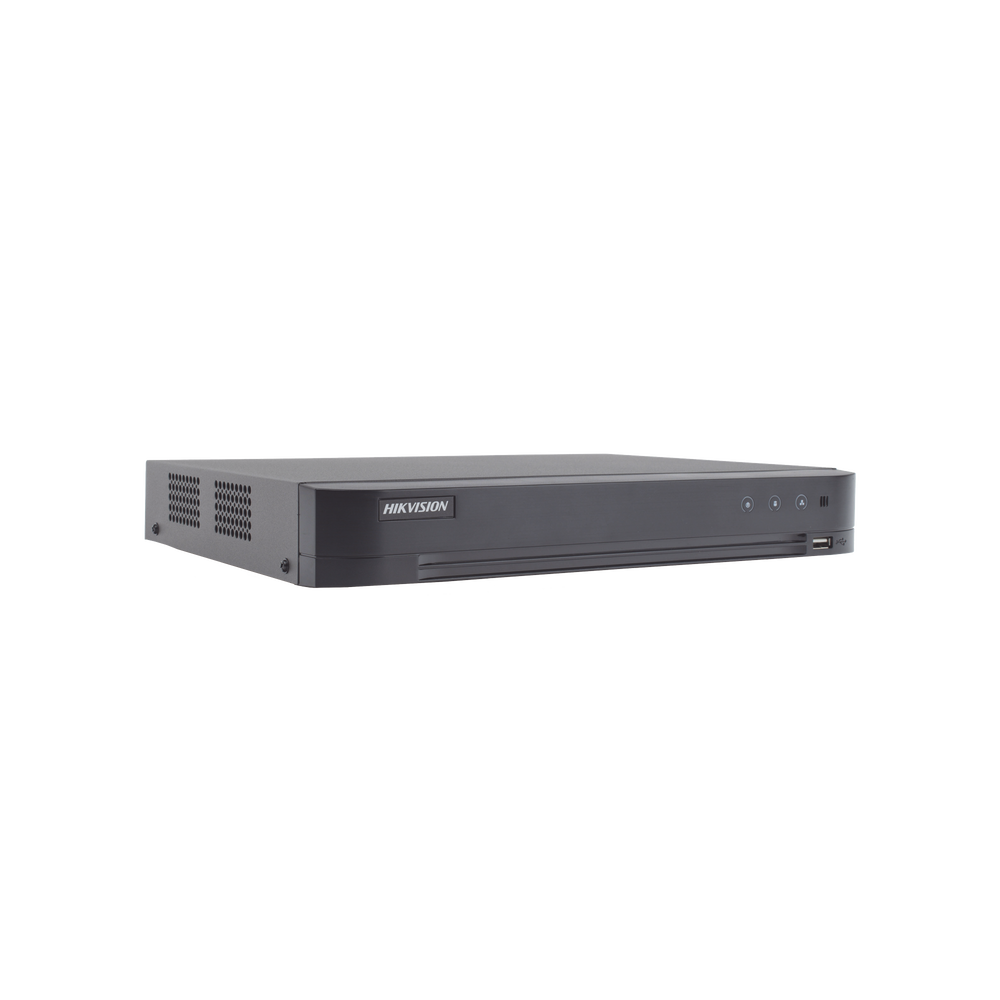

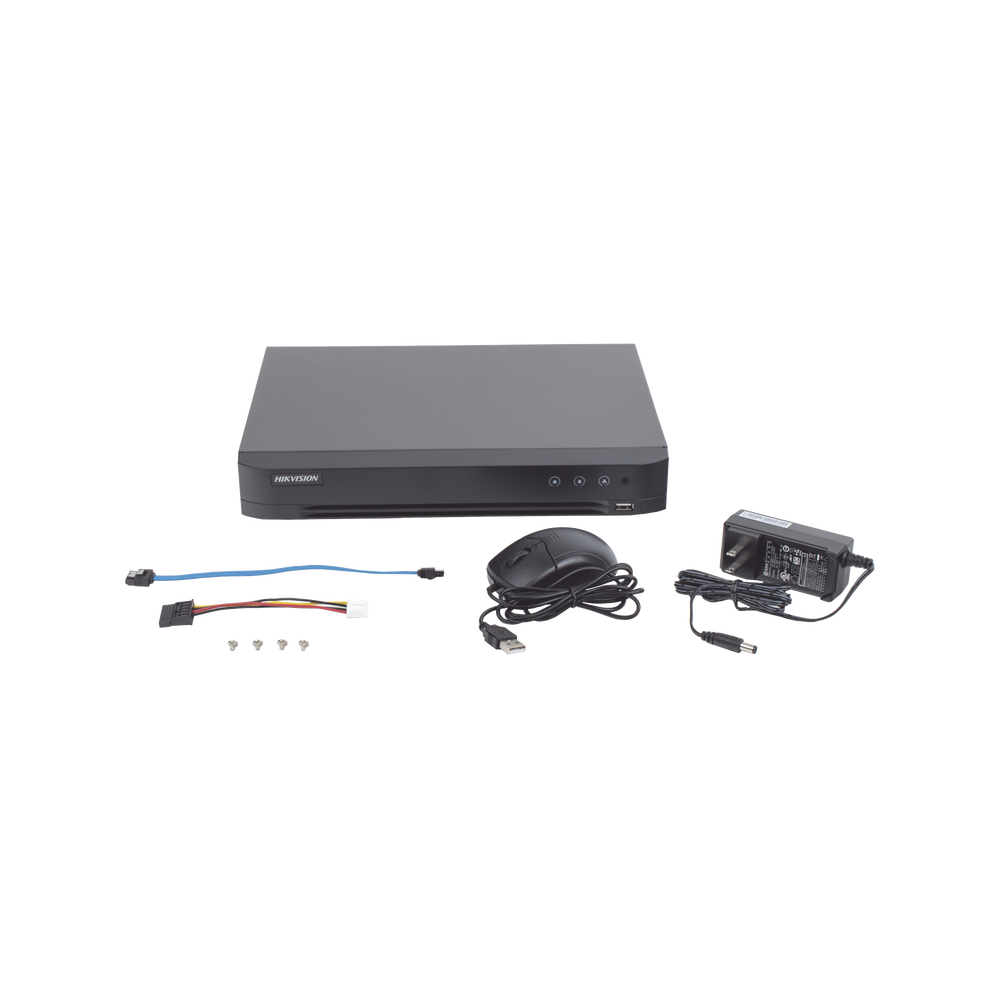

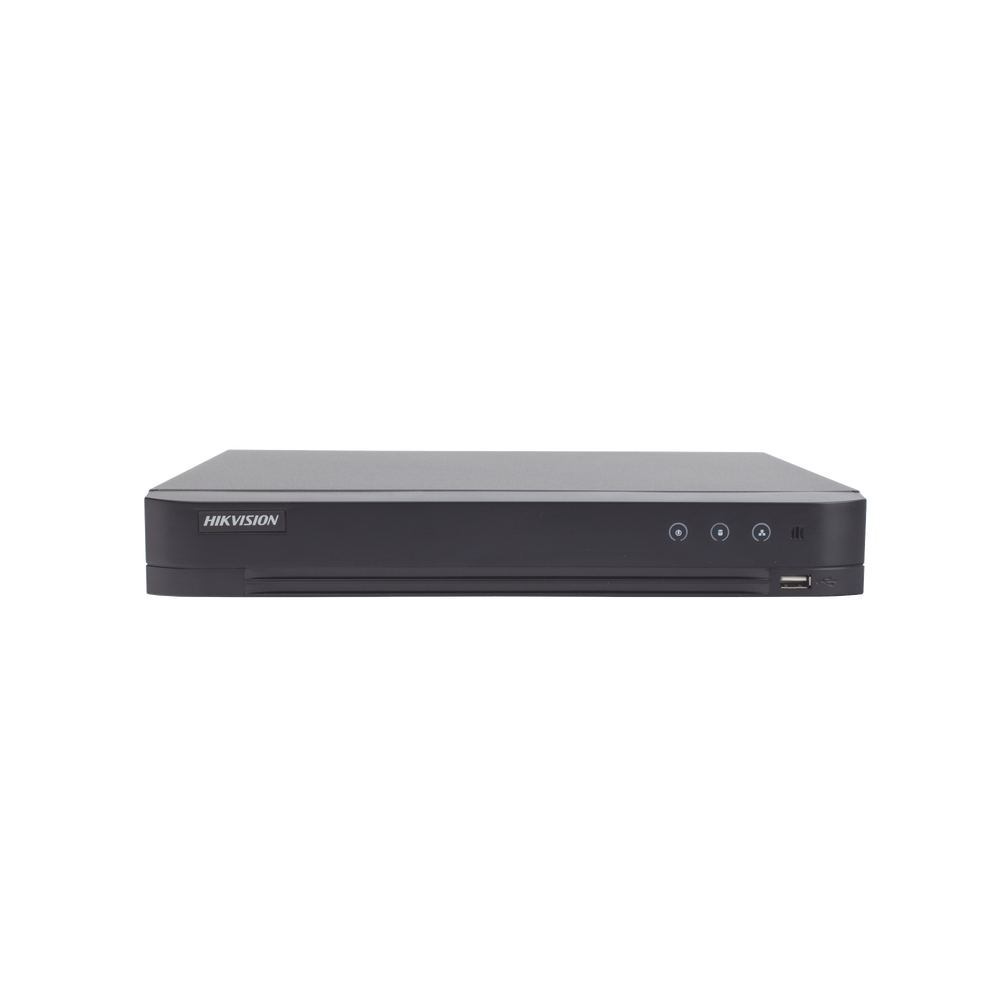

(ACUSENSE / Avoid False Alarms) 4 Megapixel DVR / 4 TURBOHD Channels + 2 IP Channels / 1 Hard Drive Bay / Coaxitron Audio

(ACUSENSE / Avoid False Alarms) 4 Megapixel DVR / 4 TURBOHD Channels + 2 IP Channels / 1 Hard Drive Bay / Coaxitron Audio

$339.049 COP
$370.835 COP $339.049 COP
Sale Sold out
Shipping calculated at checkout.

(ACUSENSE / Avoid False Alarms) 4 Megapixel DVR / 4 TURBOHD Channels + 2 IP Channels / 1 Hard Drive Bay / Coaxitron Audio

New Graphical Interface Firmware 4.70 or Higher

Add Equipment to Hik-Connect from Recorder

AcuSense vs Traditional Analytics

Artificial Intelligence with AcuSense

Create an Account on Hik-Connect

Line Crossing in Less than 90 Seconds

AcuSense Restricted Areas

AcuSense Warehouses

Avoid False Alarms

Audio, Video and Data over the Same Cable

Important note:

Thanks to the new updates (improvements) the DVR now allows accepting 4 Megapixel TURBOHD cameras that were originally dedicated to supporting 3 Megapixel, the DVR will be able to record at 4 Megapixel Lite, meaning that it is a signal coupling that allows accepting 4 Megapixel TURBOHD cameras with Lite recording.

  • 4 Megapixel Actual = 2560 X 1440.
  • 4 Megapixel Lite = 1280 X 1440.

Main features:
  • Turbo HD Series Version 5.0
  • It allows you to disable analog TURBOHD channels and install IP cameras on all of them. You can install up to 6 IP cameras in total. For each analog TURBOHD channel that is disabled, an additional IP channel is generated.
  • Pentahybrid DVR: HD-TVI / HD-CVI / Analog / IP / AHD.
  • Remote Access: PC (WINDOWS / MAC), Smart Phone (iPhone, iPad, Android).
  • Internet Explorer browser compatibility.
  • Multi-site client software up to 64 channels (iVMS-4200).
  • Support Hik-Connect P2P.
  • Supports Hik-Connect Domain / DynDNS DDNS service.
  • Advanced Features: Line Crossing Detection & Intrusion Detection.
  • 1 audio input and 1 output.
  • Supports 1 HDD up to 10TB (not included).
  • Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc.).

Audio is received via the TVI signal.

To connect the IP channels you need to use a POE switch (not included)

Physical and Electrical Characteristics:
  • Power supply: 12 Vdc (power supply included).
  • Power consumption without HDD: 18 watts.
  • Operating temperature: -10 ºC to 55 ºC.
  • Dimensions: 315 x 242 x 45 mm (W × D × H)
  • Weight: 1.78 Kg without HDD.
  • Not compatible with remote control
  • Warranty: 2 Years.

Compression and resolution:

  • Compression: H.265+ / H.265 / H.264+ / H.264.
  • Supports 4 TURBOHD / analog channels + 2 IP channels = 6 channels in total.
  • Supports 5 Technologies (TVI / AHD / CVI / CVBS / IP):
    • 4 Megapixel Lite@ 15 IPS
    • 3 Megapixel @ 15 IPS
    • 2 Megapixel @ 30 IPS
    • 1 Megapixel @ 30 FPS
    • Analog 1200TVL (CVBS) @ 30 IPS
    • IP up to 6 Megapixel
    • Note: Accepts 4MP, 2MP and 1MP cameras on all BNC channels (3MP cameras only on channel 1).
Highlighted Features:

The DVR supports two video channels with human body detection or vehicle detection, allowing us to be more precise when recording and downloading any other type of movement.

It's necessary to consider which of the analytics will be used, as it's not possible to use both at the same time. When human body detection is activated, vehicle detection cannot be activated, and vice versa.

  • Human and Vehicle Filter Configuration Guide click here

Supports audio on all its channels via coaxitron using cameras with integrated audio ( see compatible models ).

To use 2-way audio it is recommended to place a microphone in the audio input, a camera with audio via coaxitron is not recommended for 2-way audio.

Devices with AcuSense can filter out up to 95% of false alarms, with the effectiveness of this filtering depending on the distance and viewing angle of the target and camera. Some pets and insects can trigger alerts based on this.

Resources

AcuSense Technology

AcuSense technology is based on Hikvision's Deep Learning algorithm. Deep learning algorithms are much more in-depth than conventional intelligent algorithms, which only operate superficially. They perform feature learning, providing amazingly accurate and consistent video content analysis (VCA) performance.

AcuSense is capable of accurately differentiating between a human body and a vehicle in a crowded environment. Not only can it detect human and vehicle intrusion, but it can also filter out false alarms that could have been triggered by moving objects that pose no risk.

The technology also provides a powerful and fast target search function that can analyze recordings and select all human or vehicle images that match the related video clip.

( See AcuSense presentation )

What is H.265+?

It is an intelligent compression format that allows saving up to 80% of storage and bandwidth . For compression to be active, we must have an IP camera and NVR that support the same compression format.

80% less consumption than H.264

Same storage days but with fewer hard drives

Up to 20 Full HD cameras in real time with a bandwidth of 20Mbps

    Supports 5 technologies (HDTVI / AHD / CVBS / CVI / IP)., Audio via coaxitron., Supports H.265+ Intelligent Compression, which allows to consume less hard disk and less bandwidth., Compatible with Hik-Connect (P2P)., 4 TURBOHD channels + 2 IP channels.

Out of stock

MODELO: IDS-7204HQHI-M1/S(C)
