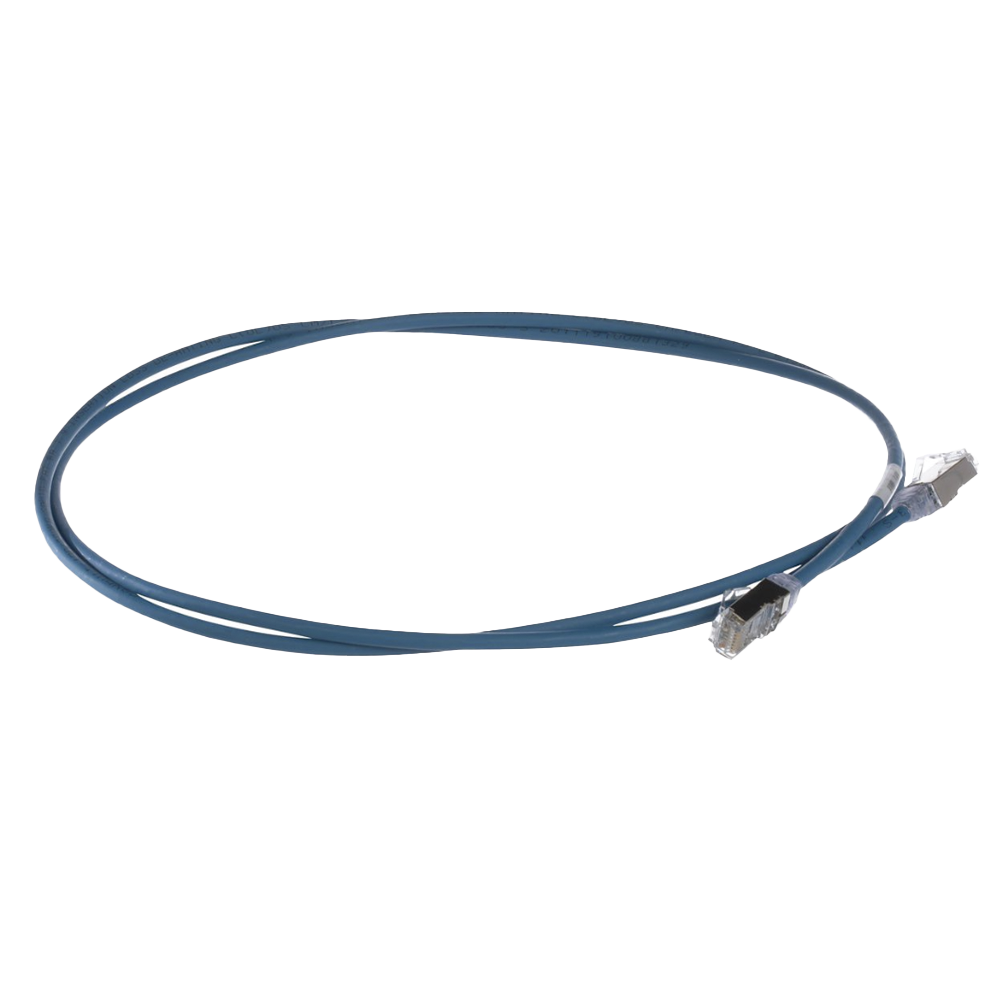

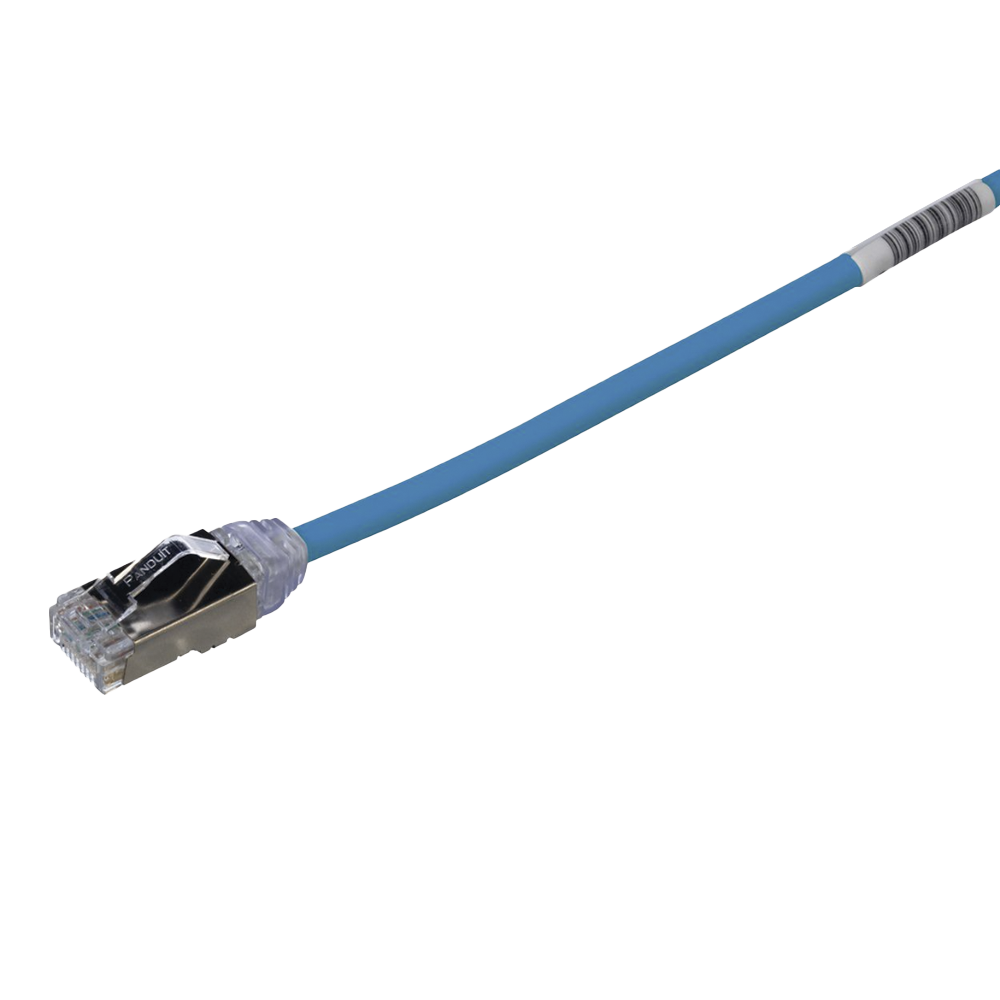

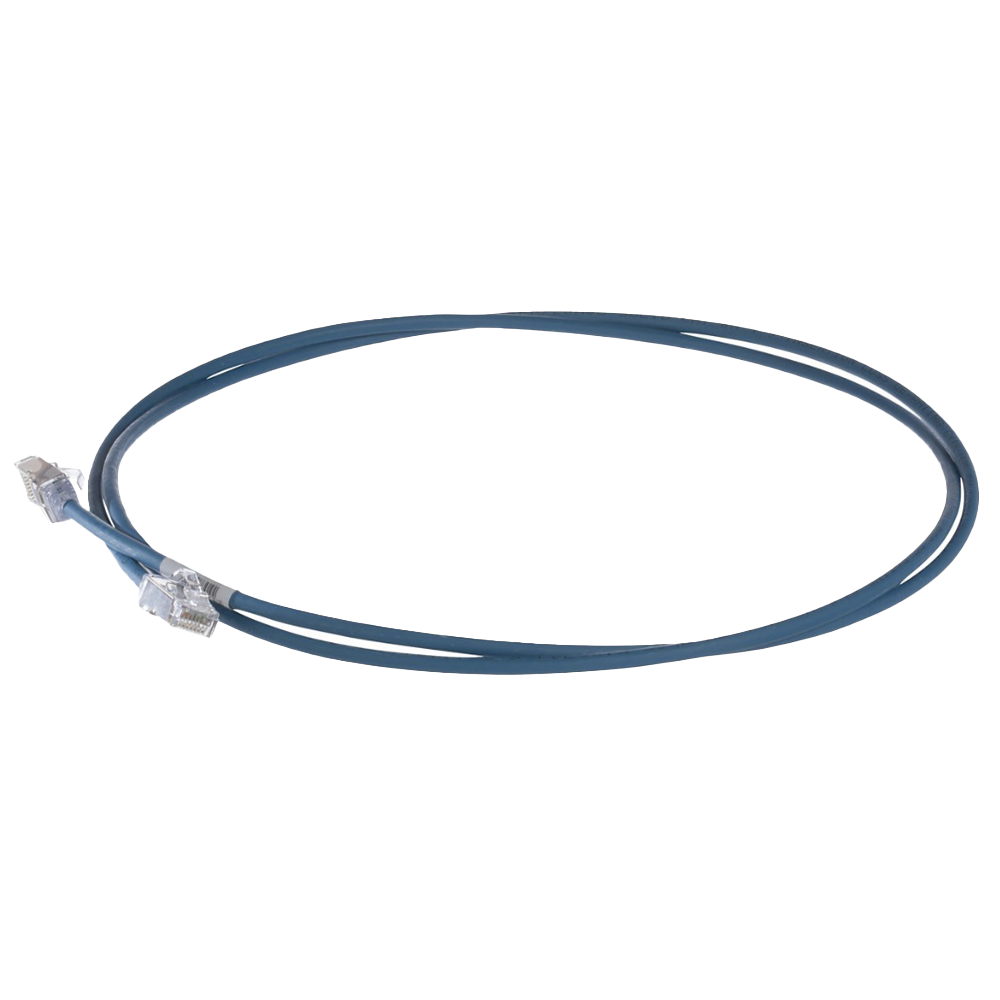

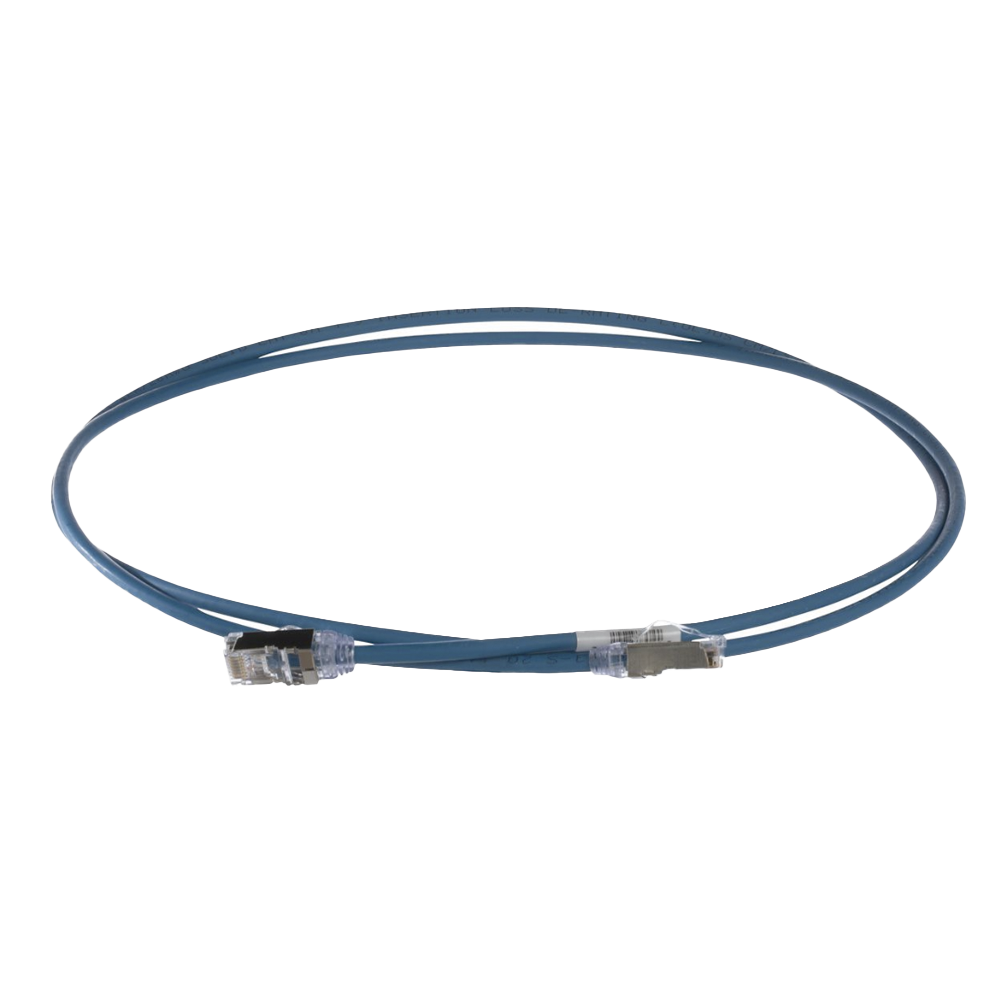

Cat6A Patch Cord, Small Diameter 28 AWG, Shielded S/FTP, CM/LS0H, 3m, Blue
The TX6A-28™ Cat 6A Shielded Patch Cord is constructed of solid, twisted-pair, 28 AWG shielded CM/LSZH jacket with enhanced performance modular plugs. The use of 28 AWG wire ensures a small diameter connection, making it easier to install and work with. The patented tangle-free latch prevents snagging and provides easy release, saving time with frequent moves, adds, and changes. The patch cable is 3 meters long, 0.185 inches (4.7 mm) nominal diameter, and is blue.
Technical Specifications:
Performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz.
Nominal diameter: 4.7 mm.
FCC and ANSI Compliance: Meets ANSI/TIA-1096-A requirements; 50 micro-inch gold-plated contacts for superior performance.
Flammability rating: CM/LSZH.
PoE Compliance: Rated for 2500 cycles with IEEE 802.3af/802.3at and 802.3bt Type 3 and Type 4.
