8 Port 10/100TX 802.3at Unmanaged Industrial PoE Switch, Up to 240W, Gigabit TP/SFP Combo (-40~75 degrees C)

8 Port 10/100TX 802.3at Unmanaged Industrial PoE Switch, Up to 240W, Gigabit TP/SFP Combo (-40~75 degrees C)

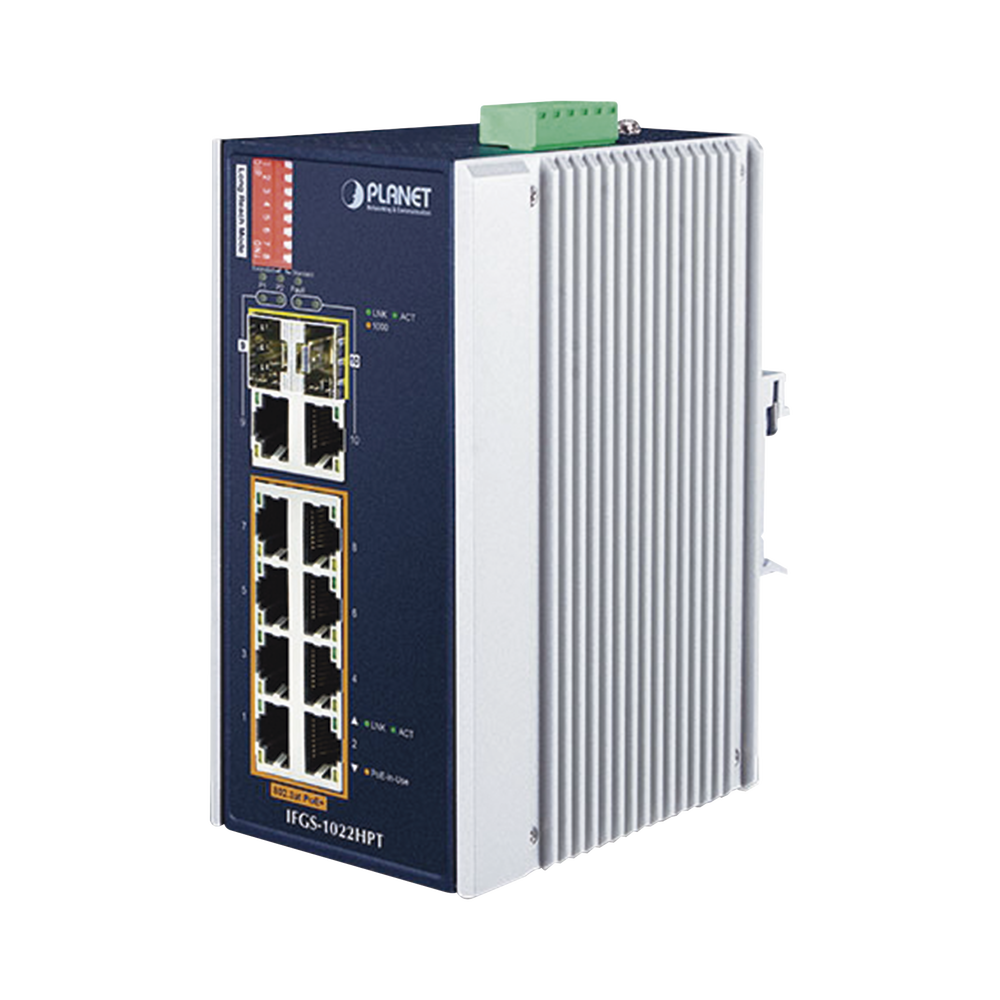

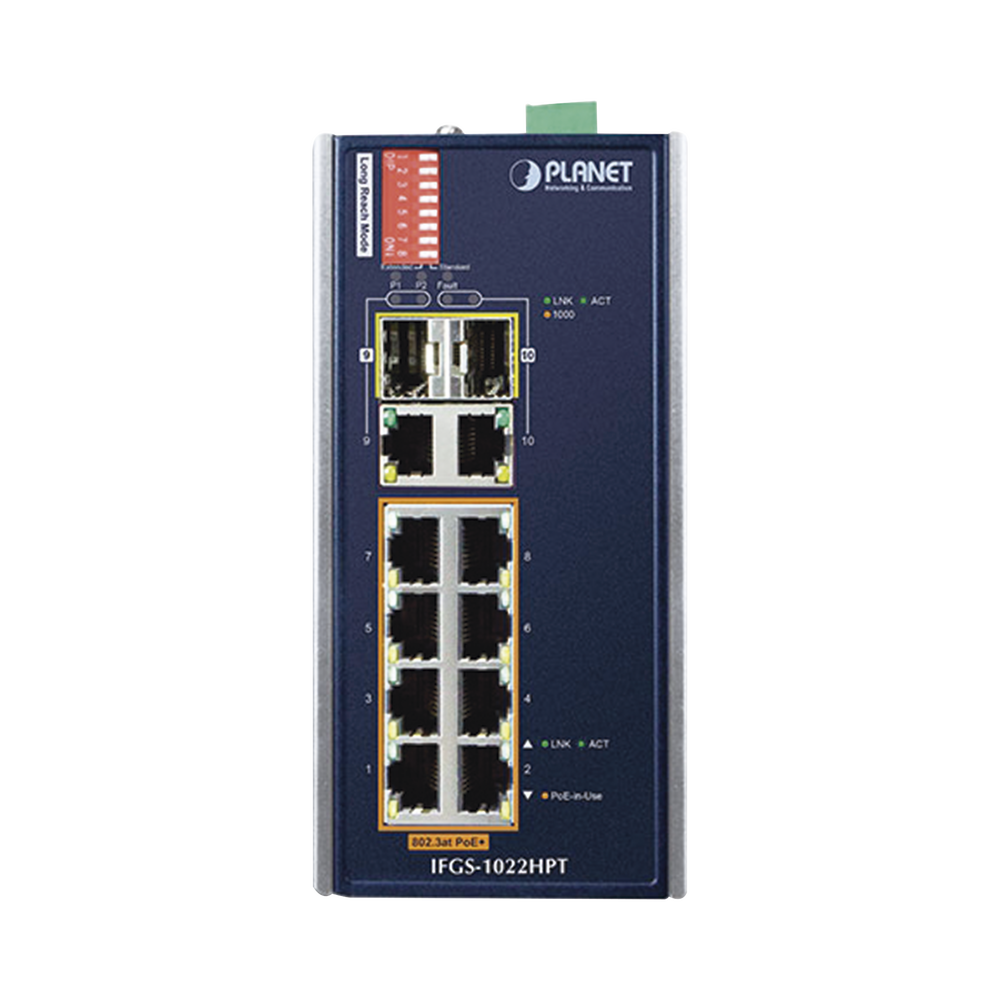

Designed for plug-and-play installation in demanding industrial environments, the IFGS-1022HPT is an industrial-grade DIN-rail type unmanaged switch with 8 10/100BASE-TX PoE+ ports offering 30 -Watt 802.3at PoE + and an additional 2 Gigabit copper/SFP combo interfaces for Gigabit Ethernet and video uplink extension.

Power over Ethernet

• Compliant with IEEE 802.3at Power over Ethernet Plus, PSE end-span
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 IEEE 802.3af/802.3at device ports
• Maximum PoE of 240 W
• Supports PoE power up to 30 watts for each PoE port
• Automatically detects the powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power supply up to 100 meters

Industrial design

• IP30 metal box
• Wall and DIN rail mount design

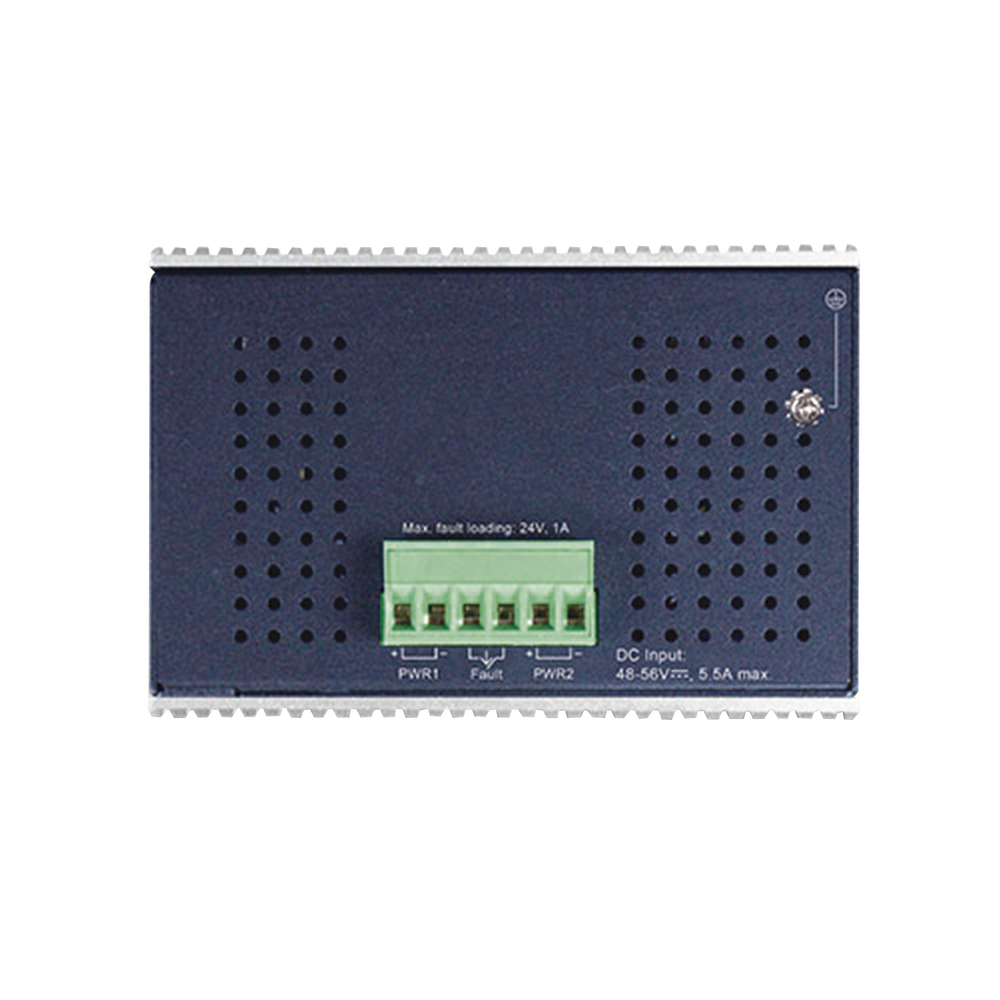

• 48~56V DC, redundant power supply with reverse polarity protection function
• Supports 6000V DC Ethernet ESD protection
• Up to -40 to 75 degrees C operating temperature

Commutation

• 10/100 Mbps (half/full duplex) hardware-based, 1000 Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
• MAC address table size of 16K
• 10K jumbo frame
• IEEE 802.1Q VLAN Transparency
• Hardware DIP switch for selecting " Standard " and " Extend " modes; " Extend " mode features a PoE transmission distance of 30 Watts at 250 m with a speed of 10 Mbps.
• Supports CSMA/CD protocol

8 x 10/100 ports with IEEE 802.3at/af PoE+, 2 x 10/100/1000Base-T Gigabit ports, 2 x 1000BASE-X mini-GBIC/SFP slots, with Extender mode, Up to 250m, IP30 metal housing
