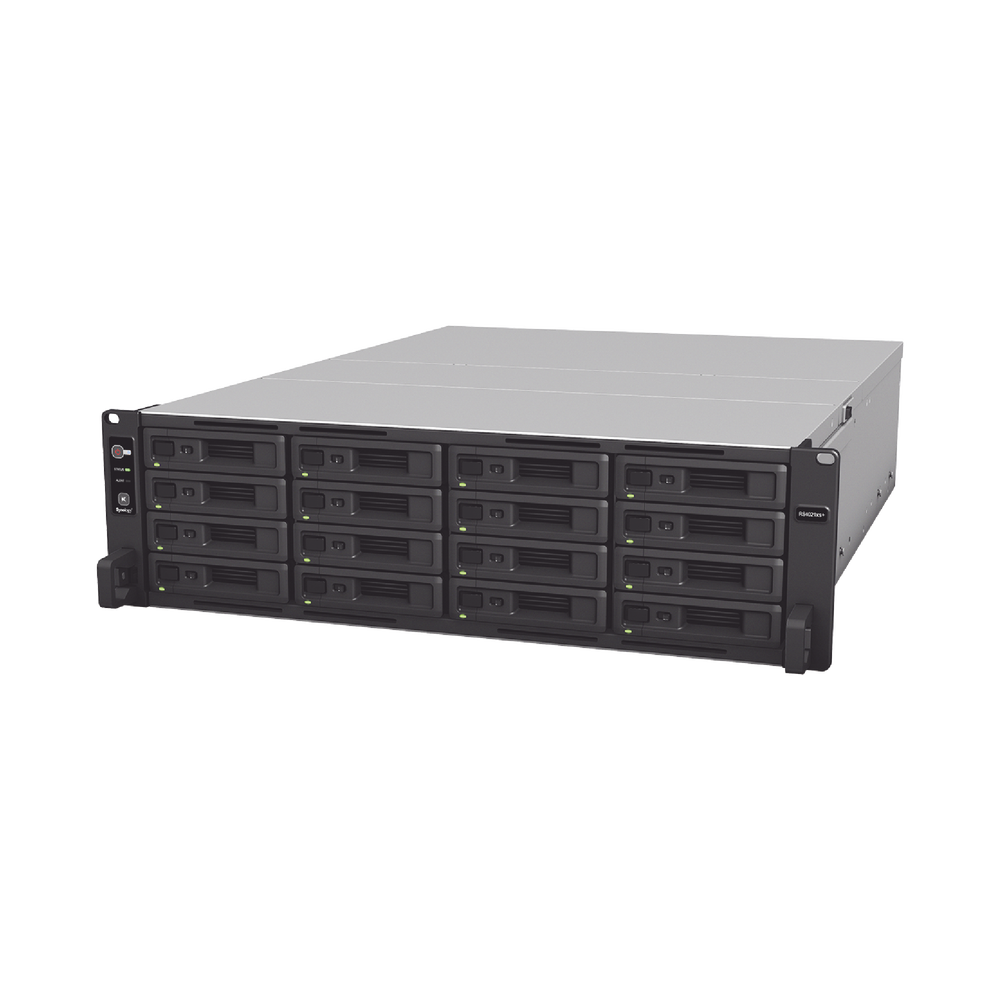

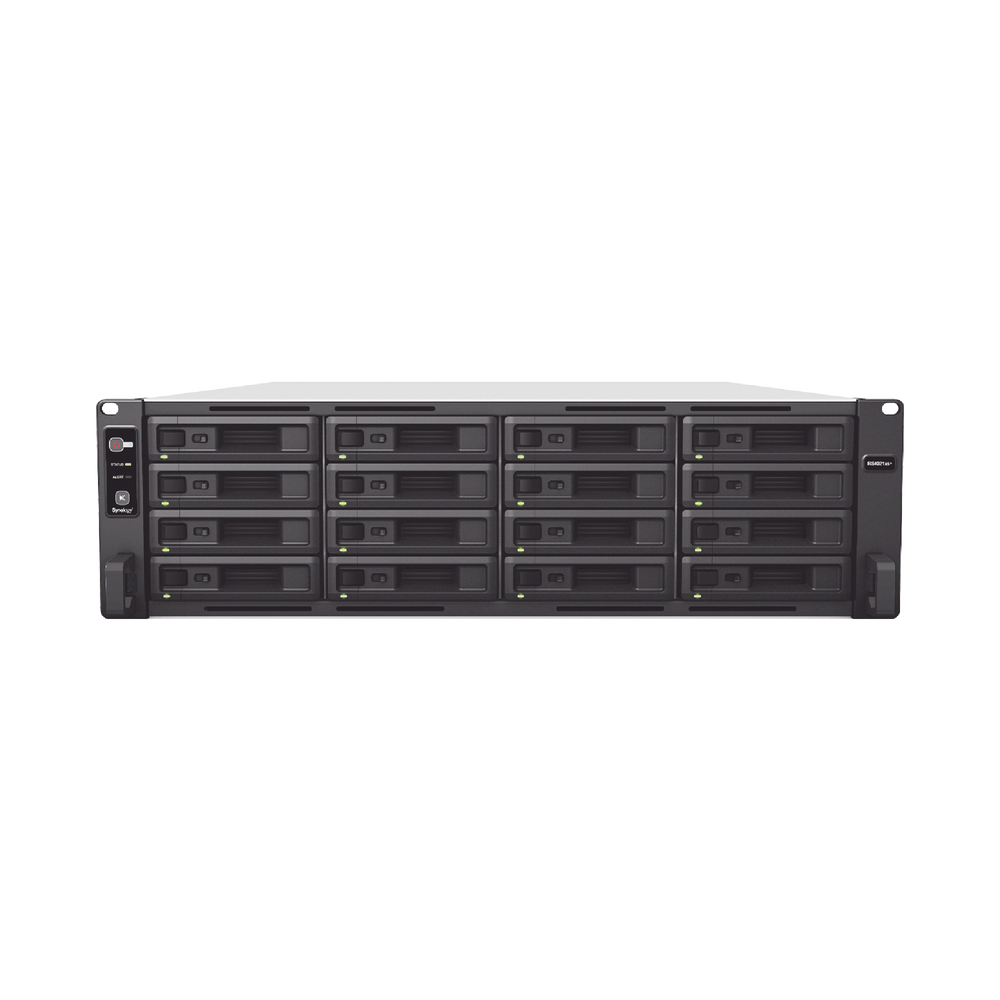

16-Bay Rackmount NAS Server / Up to 640TB

Storage:

• 16 Hard Drive Bays (not included)
• Expandable up to 40 bays with RX1217 expansion unit.
• Supports 3.5”, 2.5” HDD/SSD, SATA HDD/SSD or SAS hard drives.
• Supports hard drives up to 18TB. Check compatibility.
• Capacity up to 288TB internal, up to 720TB using the RX1217 Expansion Unit (x2).

RAID Compatible :

• JBOD.
• RAID 0.
• RAID 1.
• RAID 5.
• RAID 6.
• RAID 10.

Processor

• I Intel Xeon D-1541.
• 64-bit.
• 8 Core 2.1GHz.

• 16GB RAM (Up to 64GB).

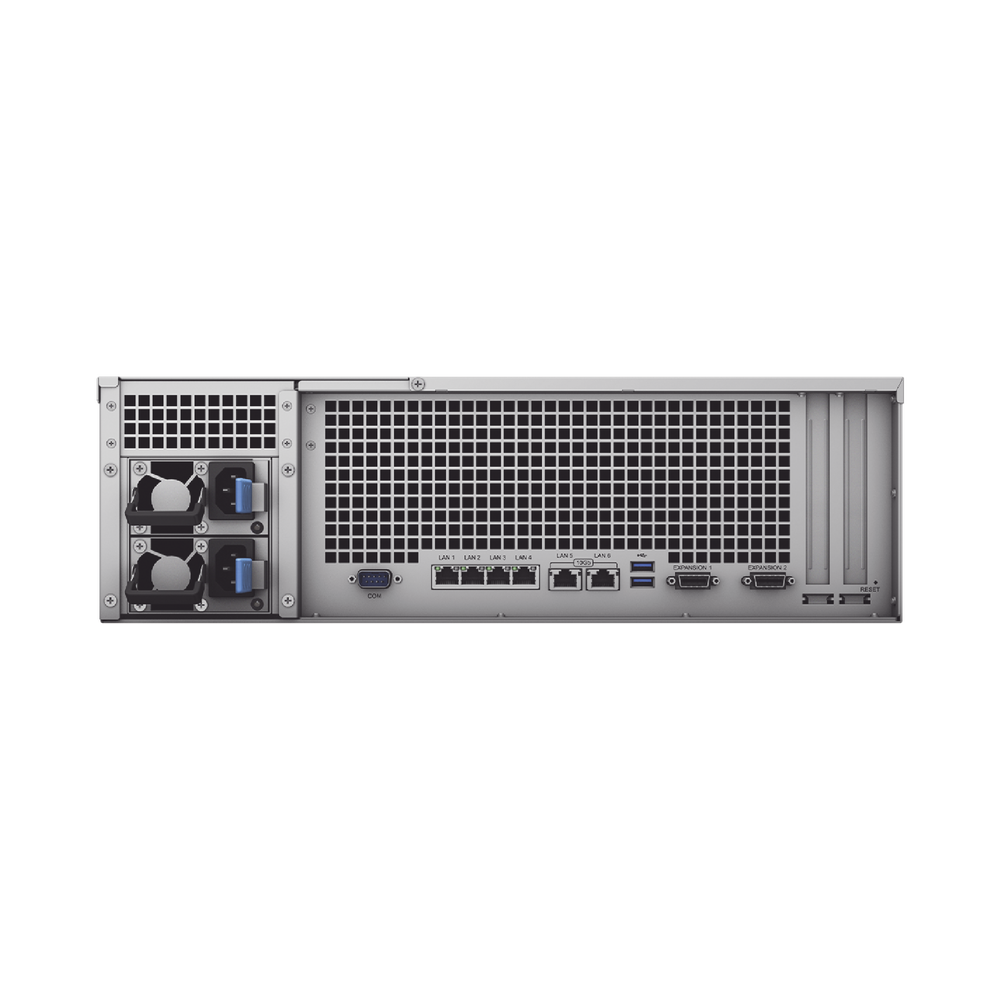

Connection ports

• 4 Gigabit RJ45 Ports (With Failover/Link Aggregation Support).
• 2 RJ45 10GbE Ports (With Failover / Link Aggregation Support)
• 2 USB 3.0 ports.
• 2 Expansion ports.

Physical and Electrical Characteristics:

• Power supply: 100 to 240VAC, redundant source
• Consumption: 141.96W.
• Operating temperature: 5 to 35 °C.
• Dimensions: 132.3 X 482 X 656.5 mm.
• Weight: 17.4Kg.

For 4-post rack mounting (use RKS1317)

Software:

Synology DiskStation Manager (DSM) is an elegant browser-based operating system, making Synology NAS very easy to use.
