Benefits of using EPCOM POWER LINE Anodized Aluminum mounts:

• Mitigate corrosion caused by galvanic pairing, protecting your installations from premature corrosion.
• Wind resistance up to 136 km/h, ideal for areas with strong winds.
• Easy installation and adaptability to your needs due to the wide variety of accessories available.
• 25-year warranty against manufacturing defects!
• Integrated 'Ground Clip' landing system (does not include electrode or landing cable).

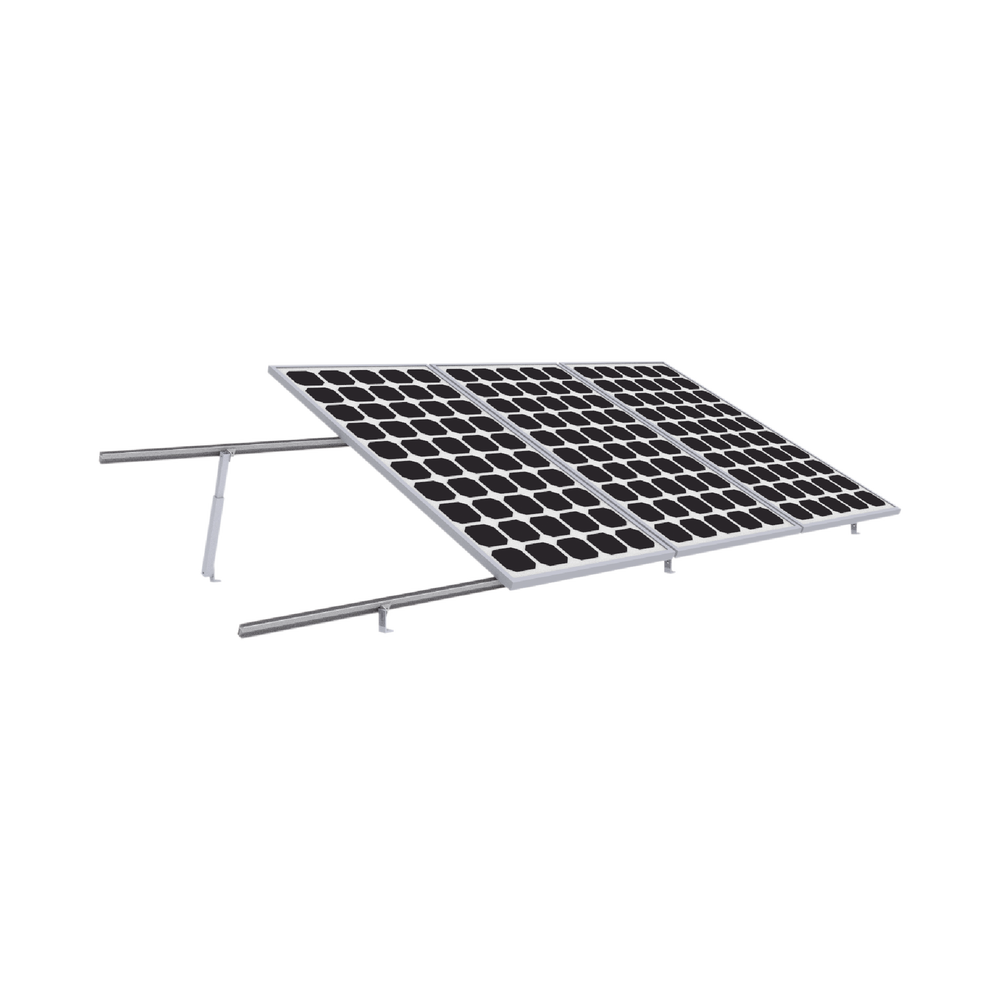

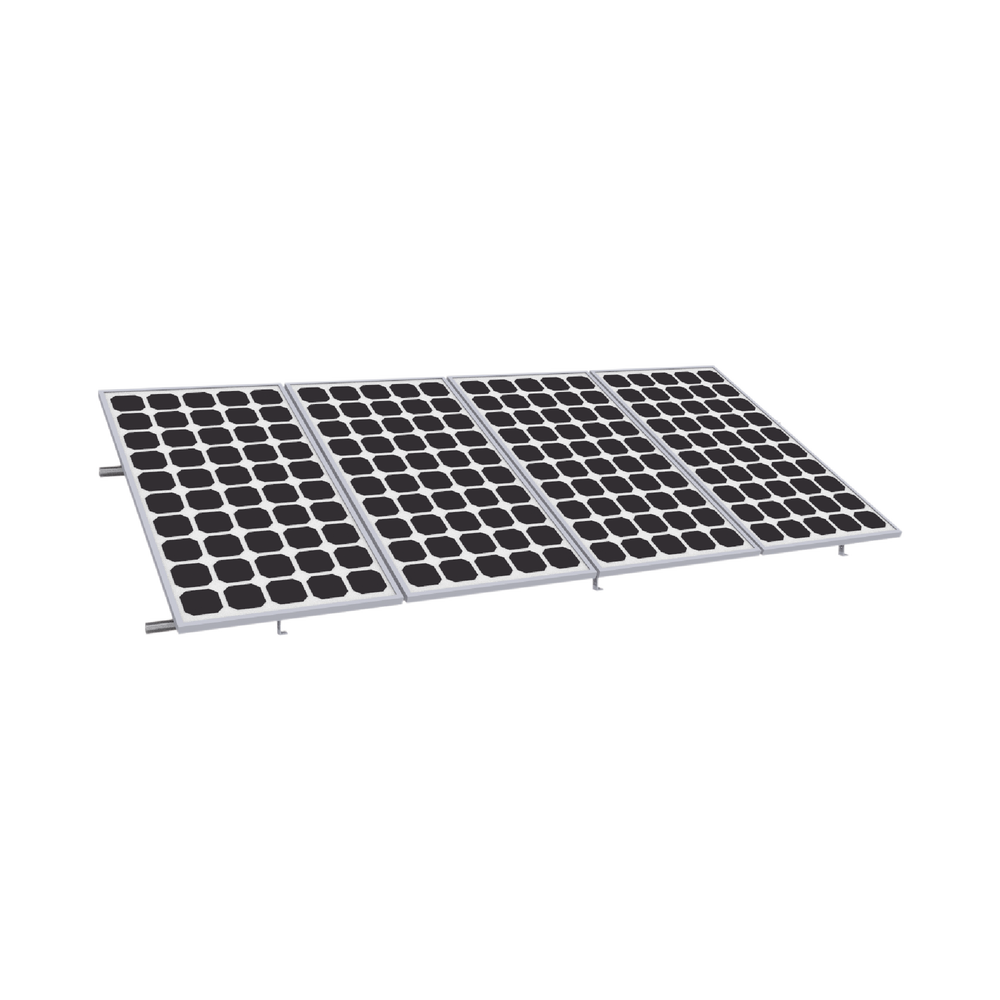

Aluminum mounting for concrete roof or floor, 1x4 photovoltaic module arrangement.

Main Features:

• For arrangement of 1x4 photovoltaic modules of 35mm thickness
• Tilt: 20-45°
• Weight: 21.3 kg
• Maximum wind speed: 136 km/h

Special considerations:

For the installation of 4 modules, the width of each module must be less than 1041 mm.

35mm end fasteners

*It is suggested to check compatibility with the engineering department.

Compatible modules:

- EPL450M144 (4 modules)

- ETM672BH450WW/WB (4 modules)

- EGE450W144M(M6) (4 modules)

- ETM772BH550WW/WB (3 modules)

-EGE550W144M(M10) (3 modules)

Advantages of Epcom Power Line mounting systems

• Materials of the highest quality.
• Quick and easy installation.
• Easy-to-install 'Ground Clip' landing system.
• More robust parts resistant to extreme climates.
• Technical support 365 days a year.
• 25-year warranty.
