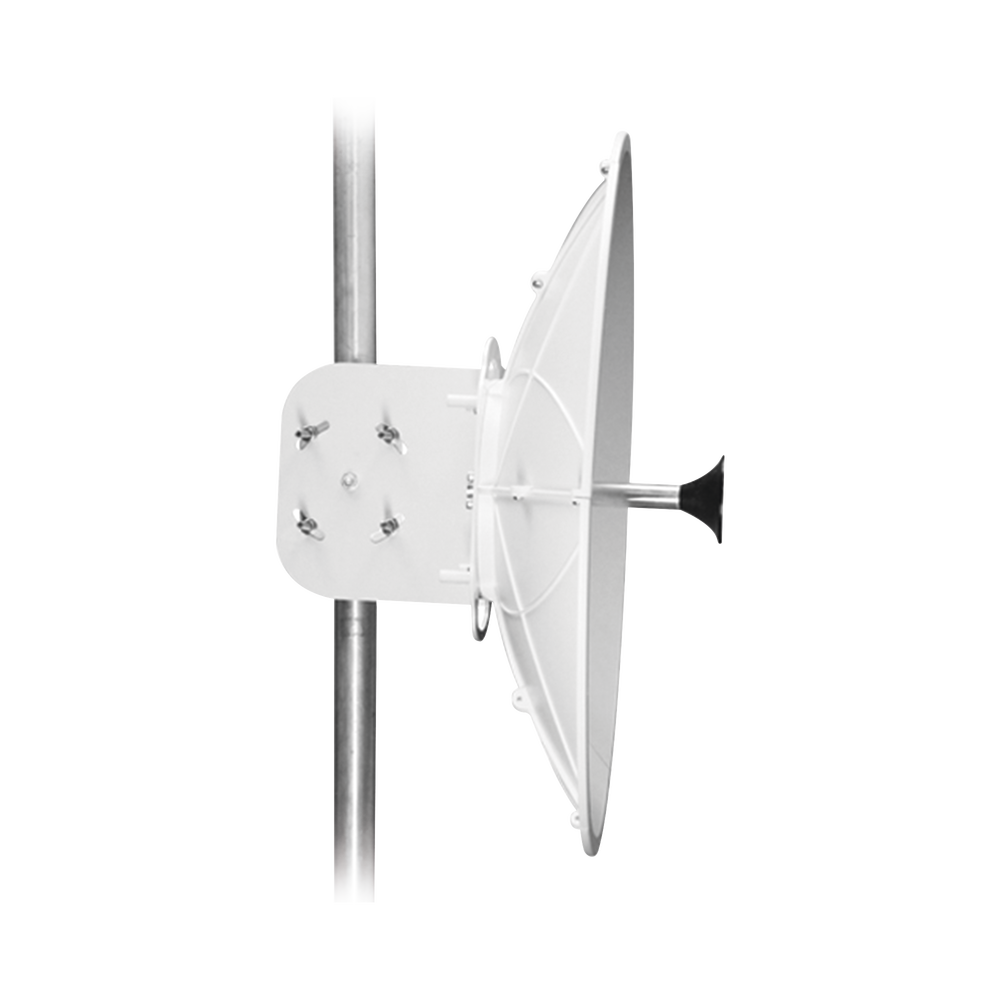

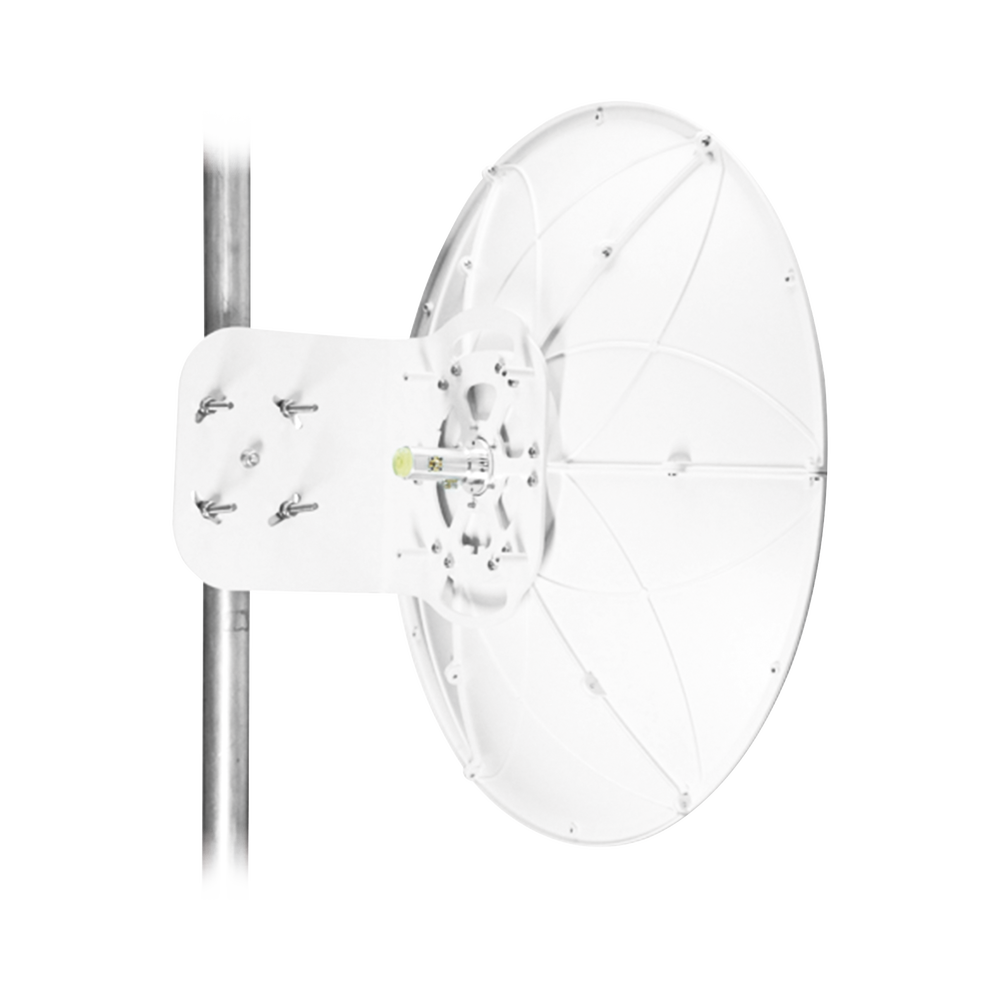

Directional Antenna for AF11, Dual Polarity, 10 to 11.7 GHz, 2 ft, High Gain at 34 dBi, Mounting Included

Directional Antenna for AF11, Dual Polarity, 10 to 11.7 GHz, 2 ft, High Gain at 34 dBi, Mounting Included

Electrical Specification

• Frequency Range 10 to 11.7 GHz
• Gain of 35.2 dBi
• VSWR <1.2
• Double polarization
• Isolation >30 dB
• F/B > 55 dB
• Horizontal beamwidth 3.3°
• Vertical beamwidth 3.3°
• Maximum power per port 50 W
• Impedance 50Ω

Mechanical Specification

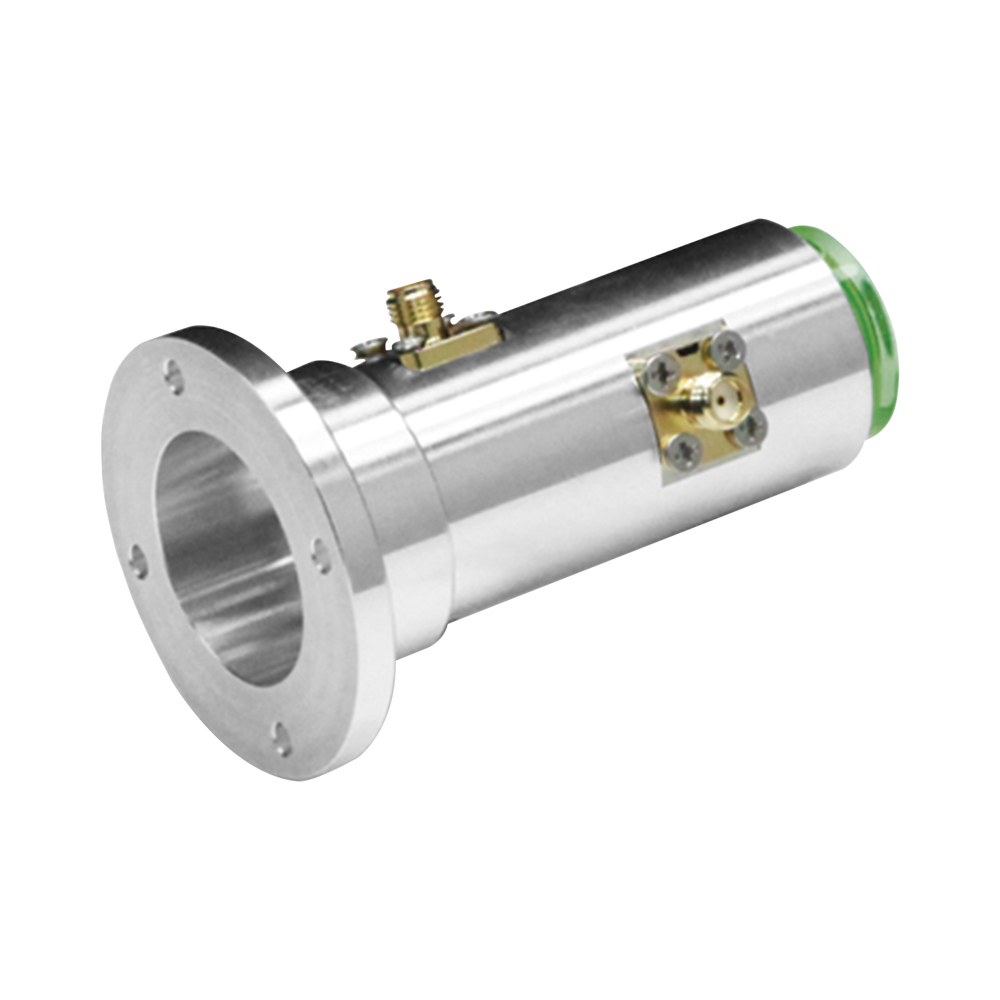

• Waveguide for AF11 radio
• Antenna size 60 cm
• Weight 6.5 kg
• antenna color White
• Suitable diameter for mast or tower 30 cm to 80 cm
• Operating temperature -40°C to +70°C (-32°F to +158°F)

An antenna designed specifically for the AF11, with the ability to increase distance range and improve your link.

Specially designed for B11, High F/B ratio of 55 dB
