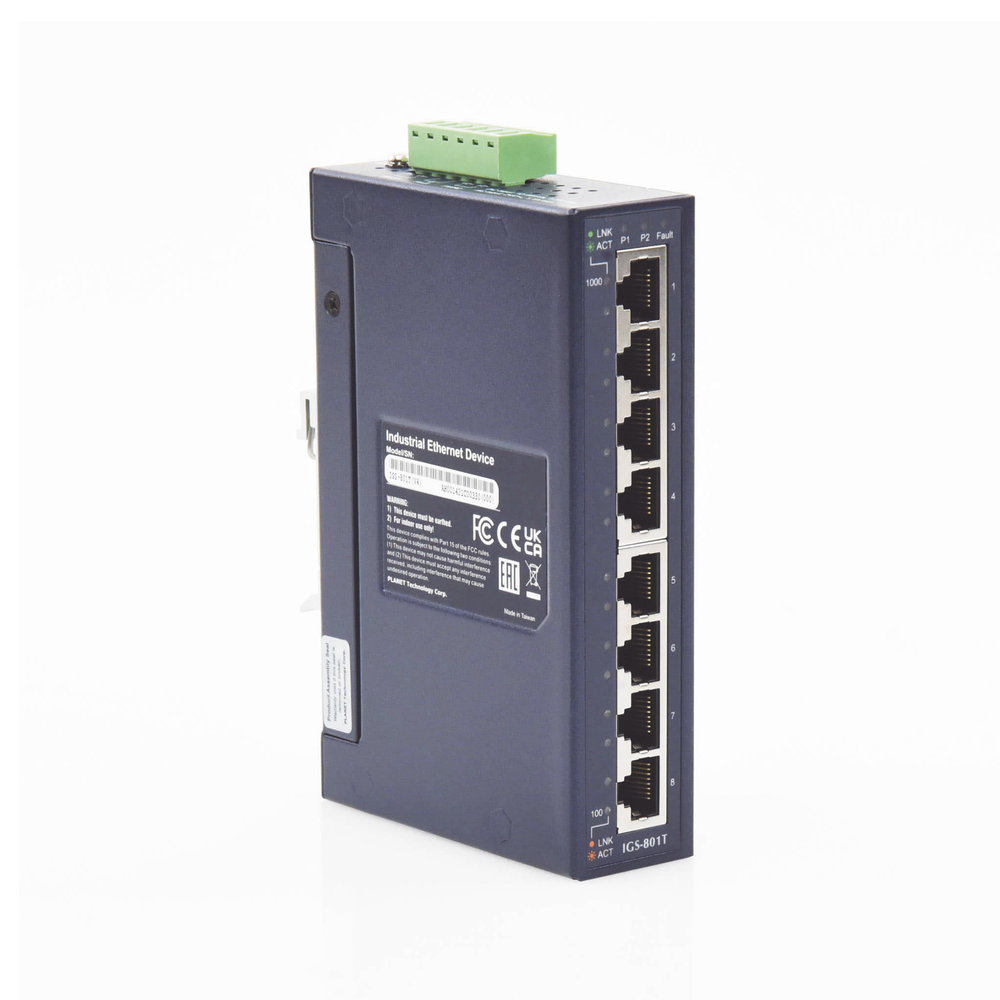

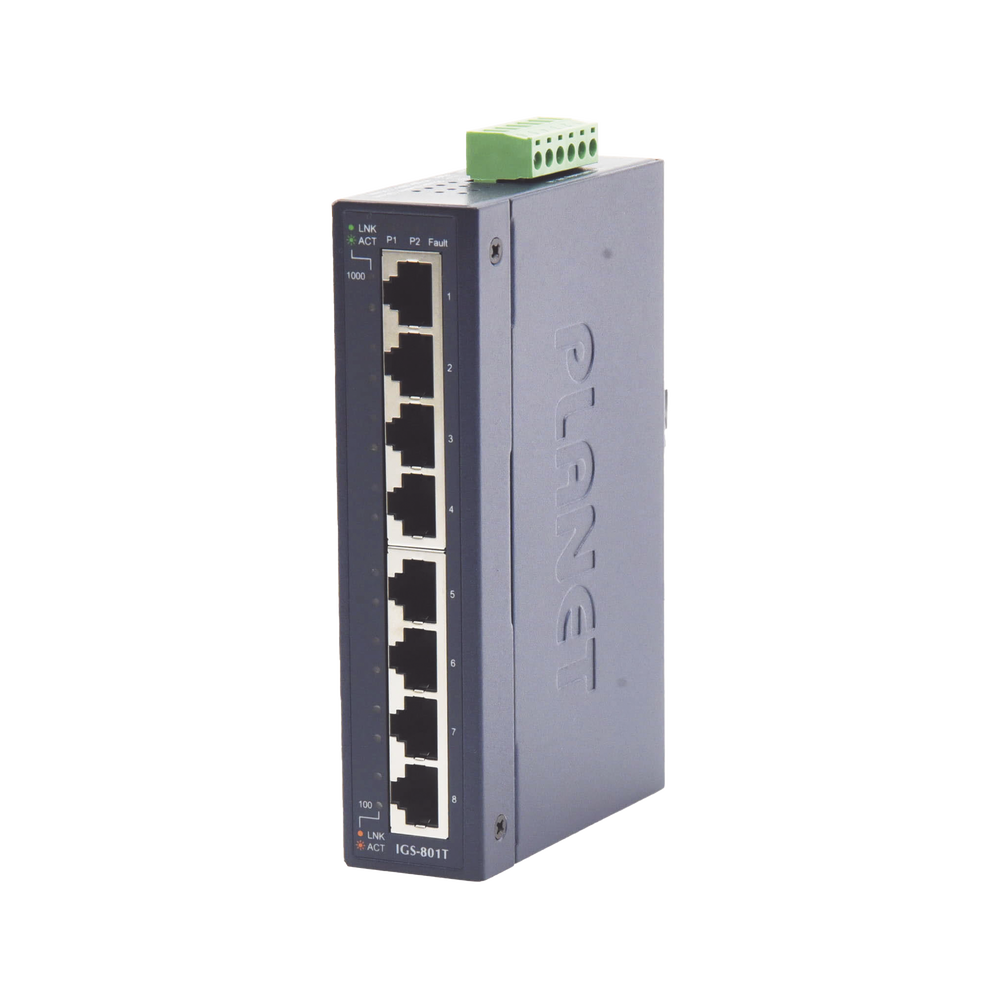

8-Port Gigabit 10/100/1000T Industrial Switch, Designed for Wall and DIN Rail Mounting

8-Port Gigabit 10/100/1000T Industrial Switch, Designed for Wall and DIN Rail Mounting

The IGS-801T provides a high level of immunity against electromagnetic interference and the strong electrical surges commonly found on plant floors or in cabinets. Operating in a temperature range of -40 to 75 degrees C, the IGS-801T can be placed in almost any harsh environment. It also features a rugged, industrial-strength IP30 metal housing.

Physical port

• 8-port RJ45 10/100/1000BASE-T with auto MDI/MDI-X function

Layer 2 Features

• Compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
• Supports auto-negotiation and 10/100 Mbps half/full duplex mode and 1000 Mbps full duplex mode
• High-performance Store and Forward architecture, broadcast storm control, and Runt/CRC filtering eliminate erroneous packets to optimize network bandwidth.
• Prevents packet loss with backpressure (half duplex) and IEEE 802.3x pause frame flow control (full duplex)
• 4K absolute MAC address and 16 Gbps switching fabric support
• 1.5 Mbit SRAM packet buffer
• 9K jumbo pack size support
• IEEE 802.1p CoS support
• Machine learning of addresses and address aging
• CSMA/CD Protocol

Industrial box and installation

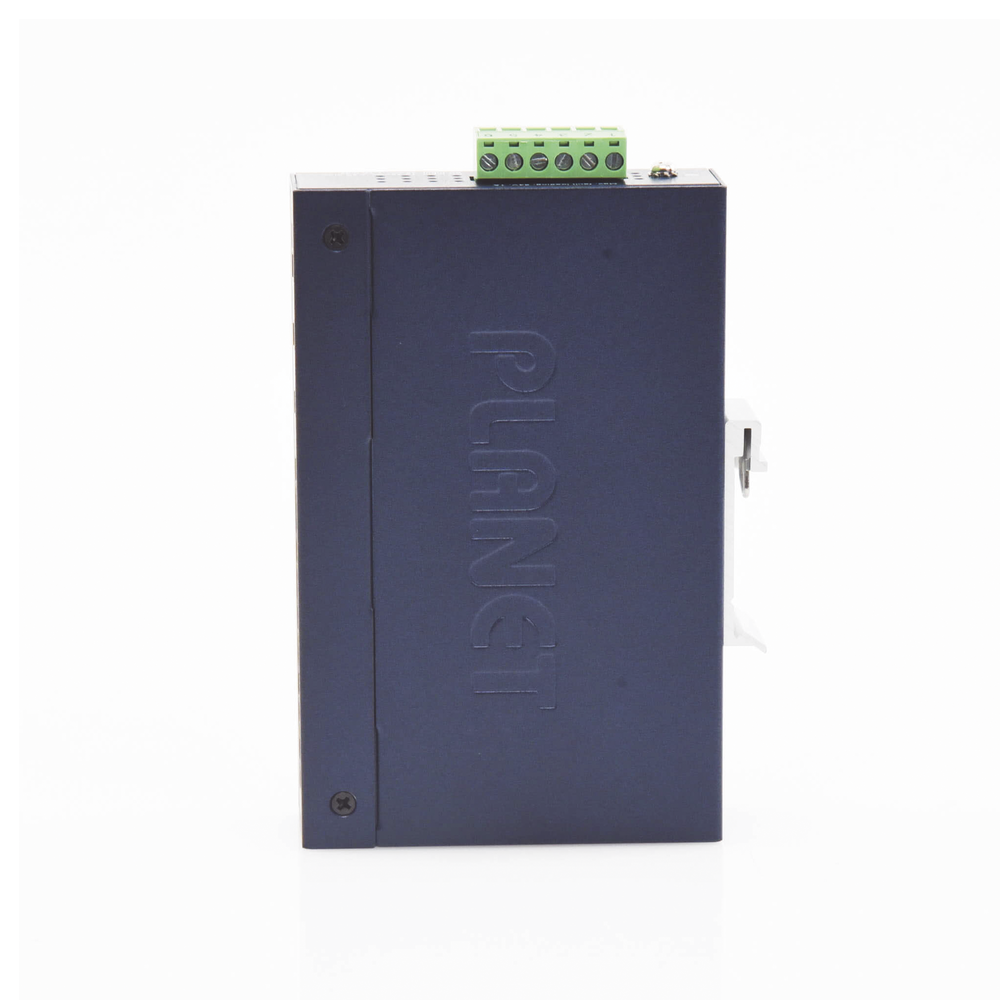

• IP30 metal box

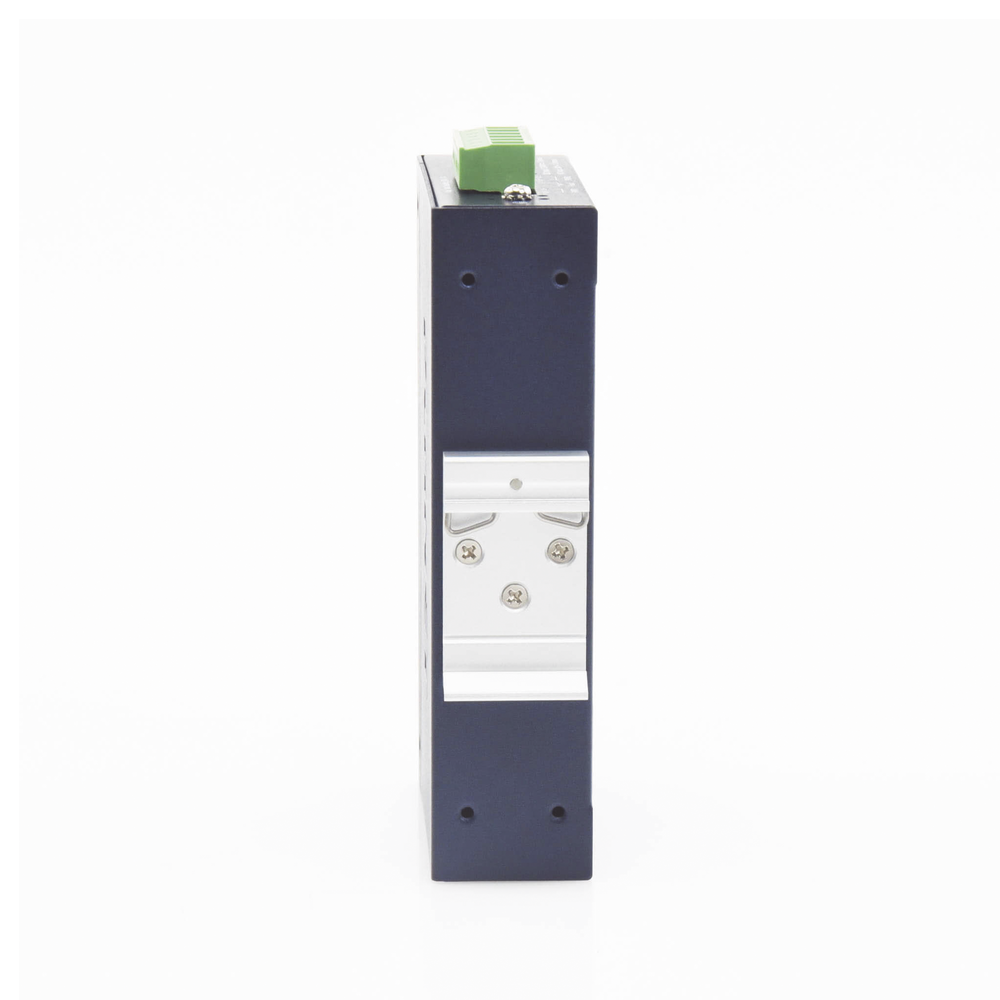

• Wall and DIN rail mount design

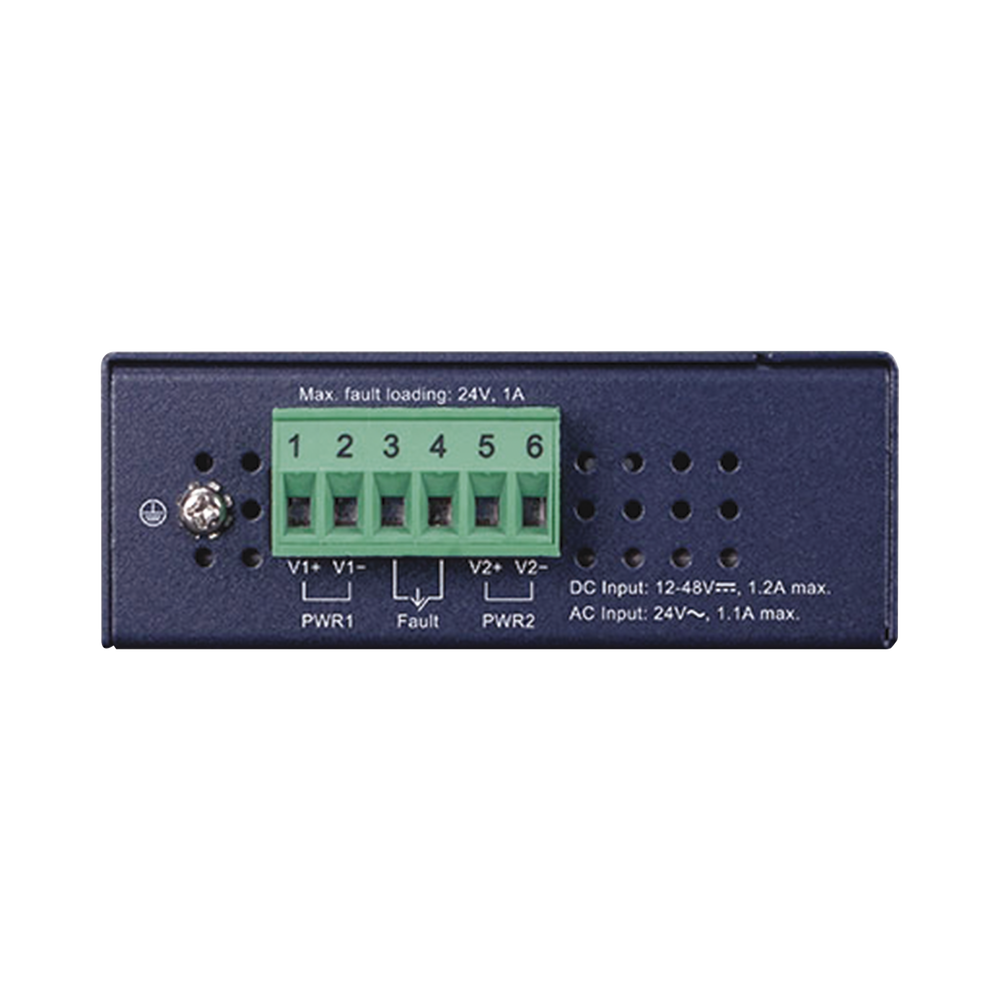

• 12 to 48 VDC redundant power supply with reverse polarity protection and removable pluggable terminal block for master and slave power; 24 VAC power support
• -40 to 75 degrees C operating temperature

IP30 metal housing, 12 to 48 V DC power supply, withstands temperatures up to -40 to 75 °C
