Caja de Distribución de Fibra Óptica para 24 Empalmes, con 16 acopladores SC/APC simplex, Exterior IP65, Color Negro

Fiber Optic Distribution Box for 24 Splices, with 16 SC/APC Simplex Couplers, IP65 Exterior, Black

Sale price  $171,616 Regular price  $211,756
Skip to product information
Caja de Distribución de Fibra Óptica para 24 Empalmes, con 16 acopladores SC/APC simplex, Exterior IP65, Color Negro

Fiber Optic Distribution Box for 24 Splices, with 16 SC/APC Simplex Couplers, IP65 Exterior, Black

Sale price  $171,616 Regular price  $211,756
Shipping calculated at checkout.
Marca
FIBERHOME
Referencia / SKU
FDP-420E-16
Disponibilidad
500 unidades disponibles
Descripción y especificaciones

Fiber Optic Distribution Box for 24 Splices, with 16 SC/APC Simplex Couplers, IP65 Exterior, Black

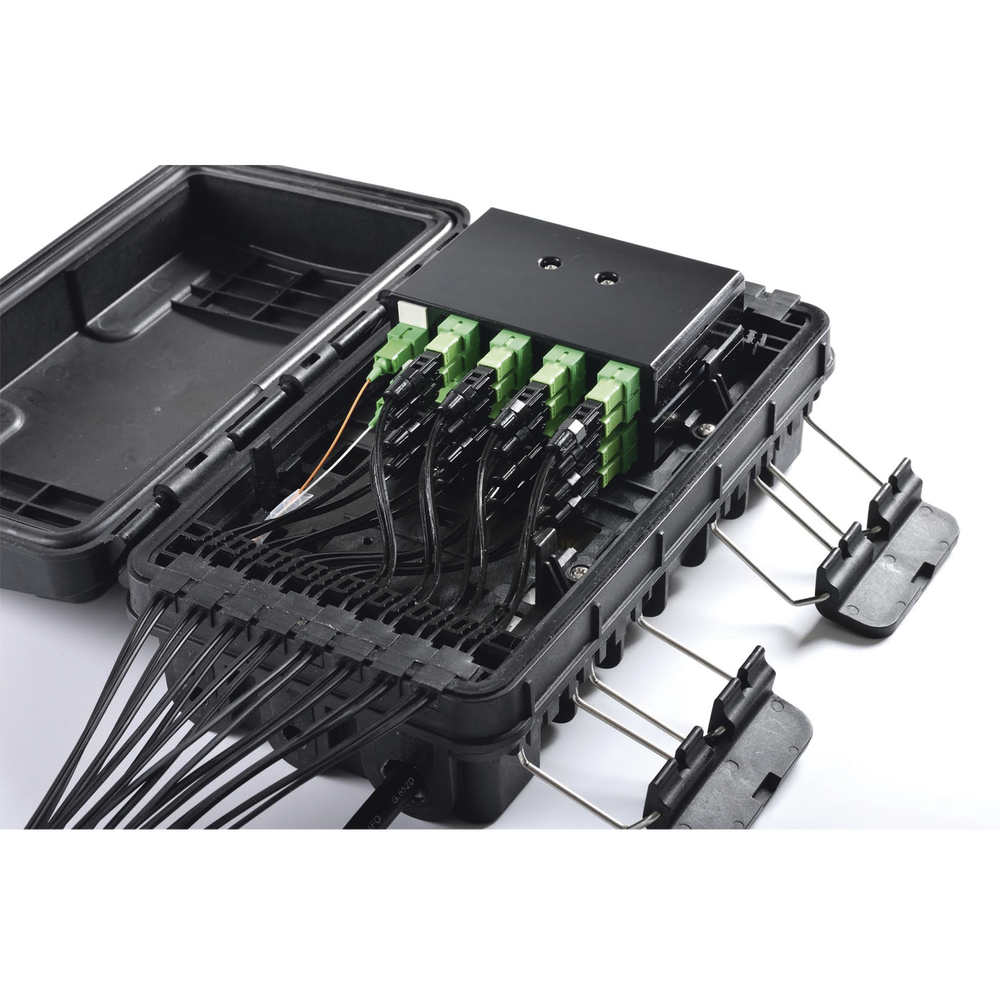

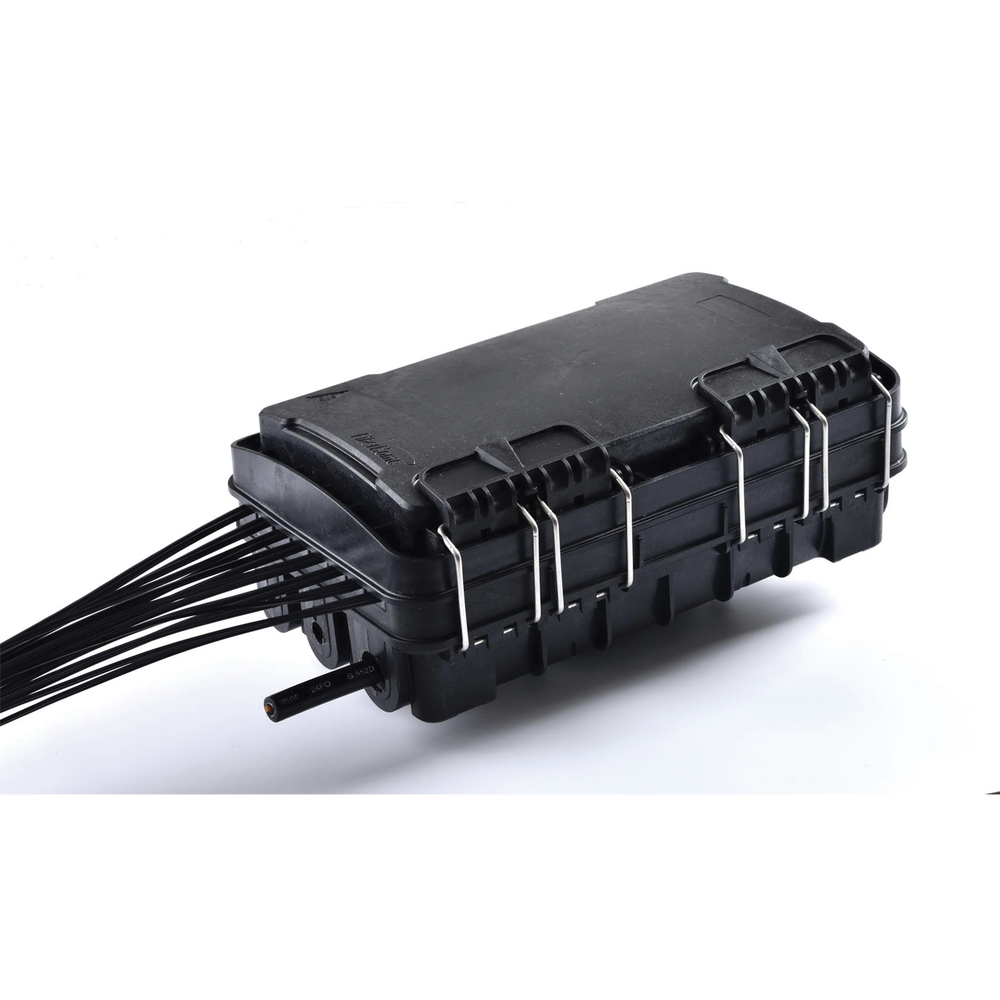

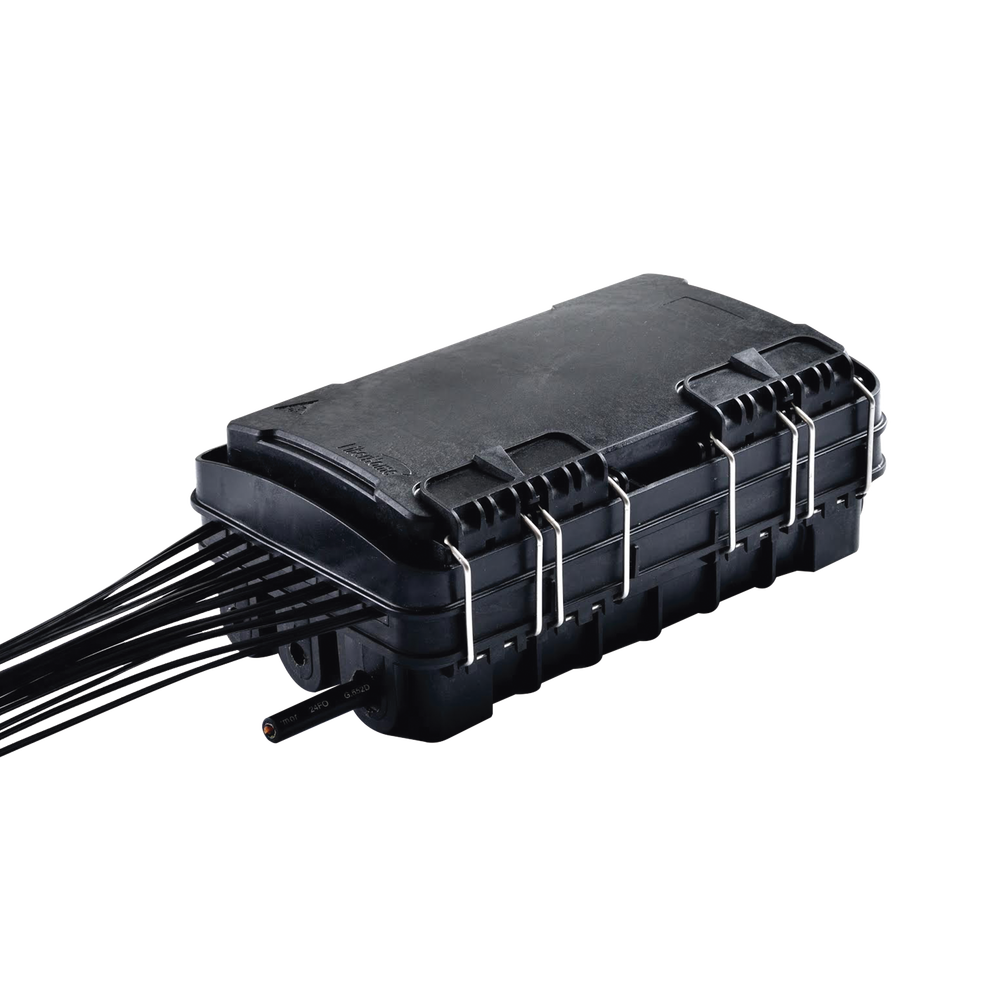

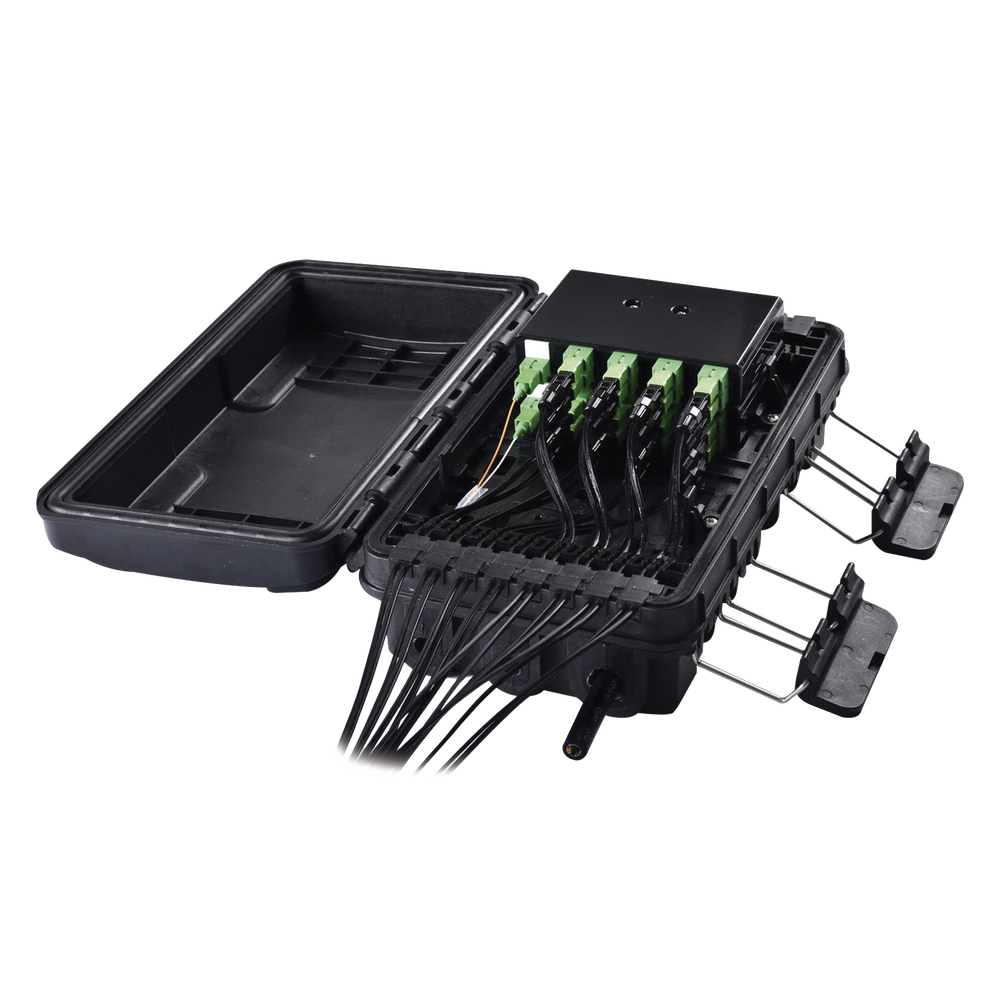

The FDP-420E-16 box is the new version of FiberHome's NAPs designed for in-line applications and provides an access point to distribution and drop cables. It supports up to 24 fiber splices. It features protection to keep internal components protected from any risks posed by the outdoor environment. The splitter input is spliced ​​to the fiber, and the splitter outputs are ready to be spliced ​​with drop cable.

  • Designed with PP materials, fire resistant, UV resistant, and rounded edges.
  • Easy opening and closing of the box without the use of tools
  • Supports 16-wire DROP output.
  • Weather-resistant material
  • Protection level: IP65

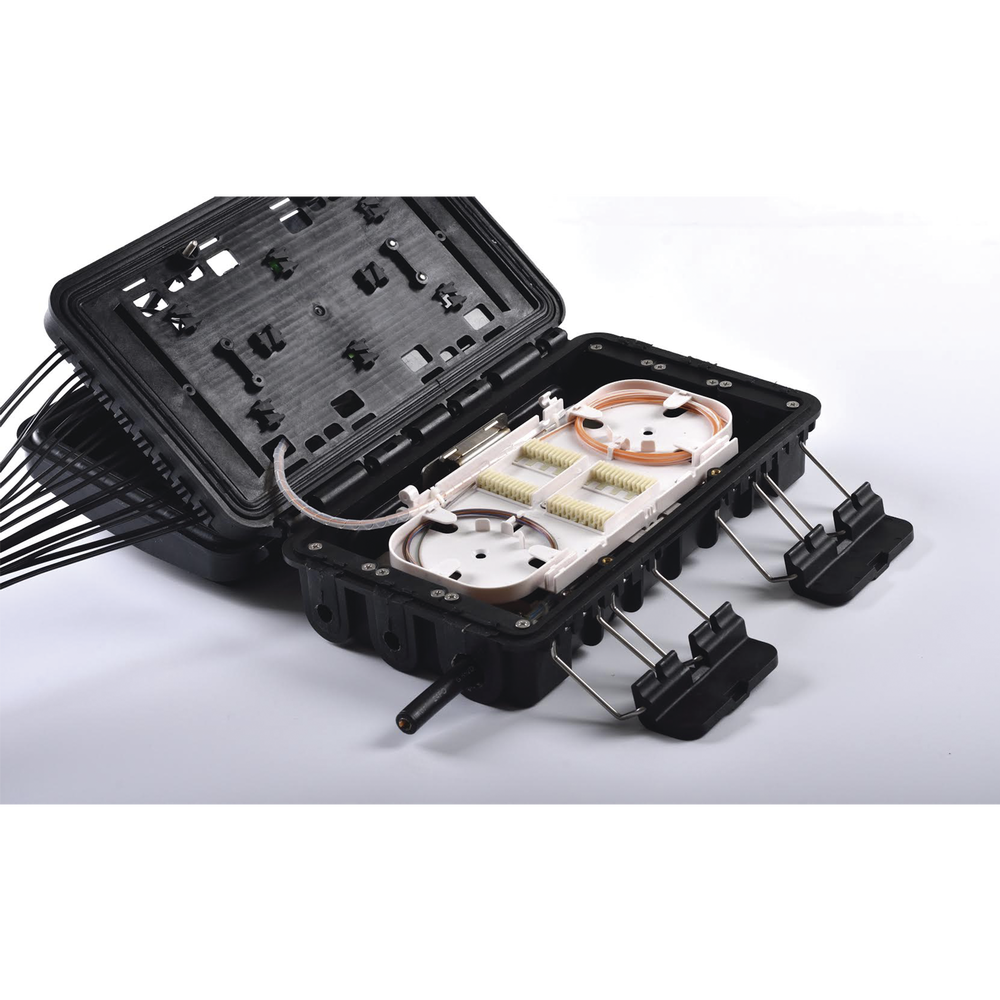

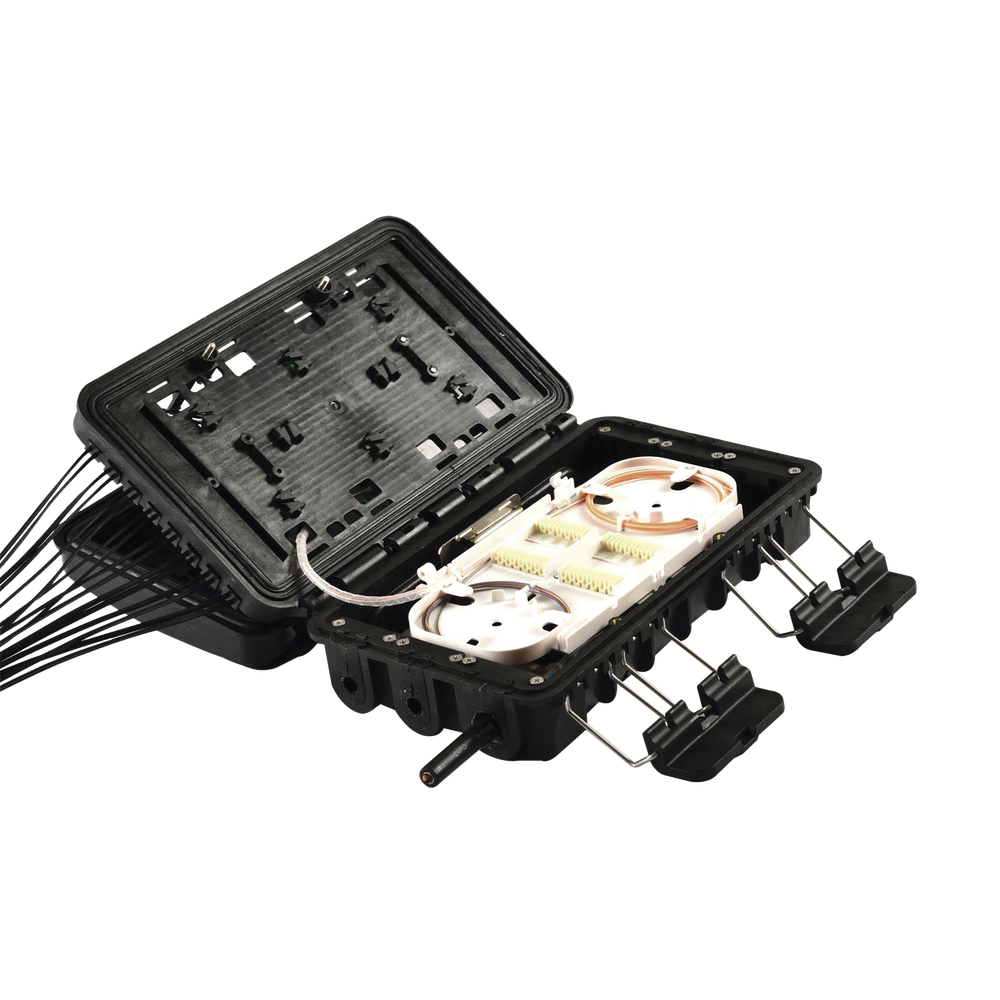

  • Internal 2-layer design
  • Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*

*It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Characteristics:

  • Weight: 1.0~1.7kg
  • Dimensions: 285 x 170 x 100mm
  • Maximum splice capacity: 24 Fibers
  • Max. number of splitters: 2 x 1:4, 2 x 1:8, 1 x 1:16 (Not included)
  • Color: Black
  • Includes 16 SC/APC simplex couplers
  • Includes 24 splice sleeves
  • Operating temperature: -40 ~+65ºC
  • Relative Humidity: 95% (+40ºC)
  • Atmospheric Pressure: 70kpa ~ 106kpa

    For aerial installation in fiber optic cable, Recommended for NAP, to derive from distribution fiber to Drop fiber, 16 outputs for Drop fiber
