High-performance broadband directional antenna, 698-960 MHz / 1695-2700 MHz, F-female connector. 75 Ohm impedance.

High-performance broadband directional antenna, 698-960 MHz / 1695-2700 MHz, F-female connector. 75 Ohm impedance.

High Gain Antenna. Wide Frequency Range.

The outdoor directional antenna is a patented antenna manufactured exclusively for weBoost cell phone signal boosters, known for its compact design, high performance, and all-weather operation.

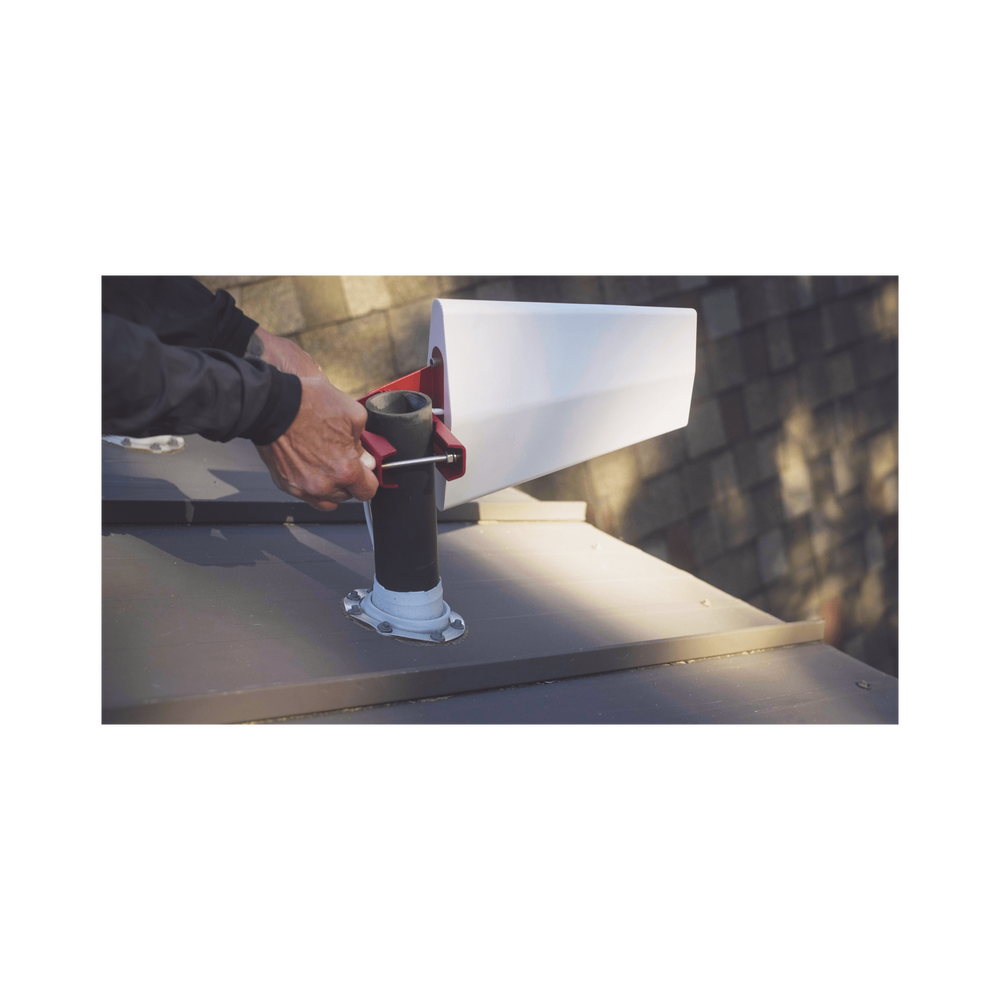

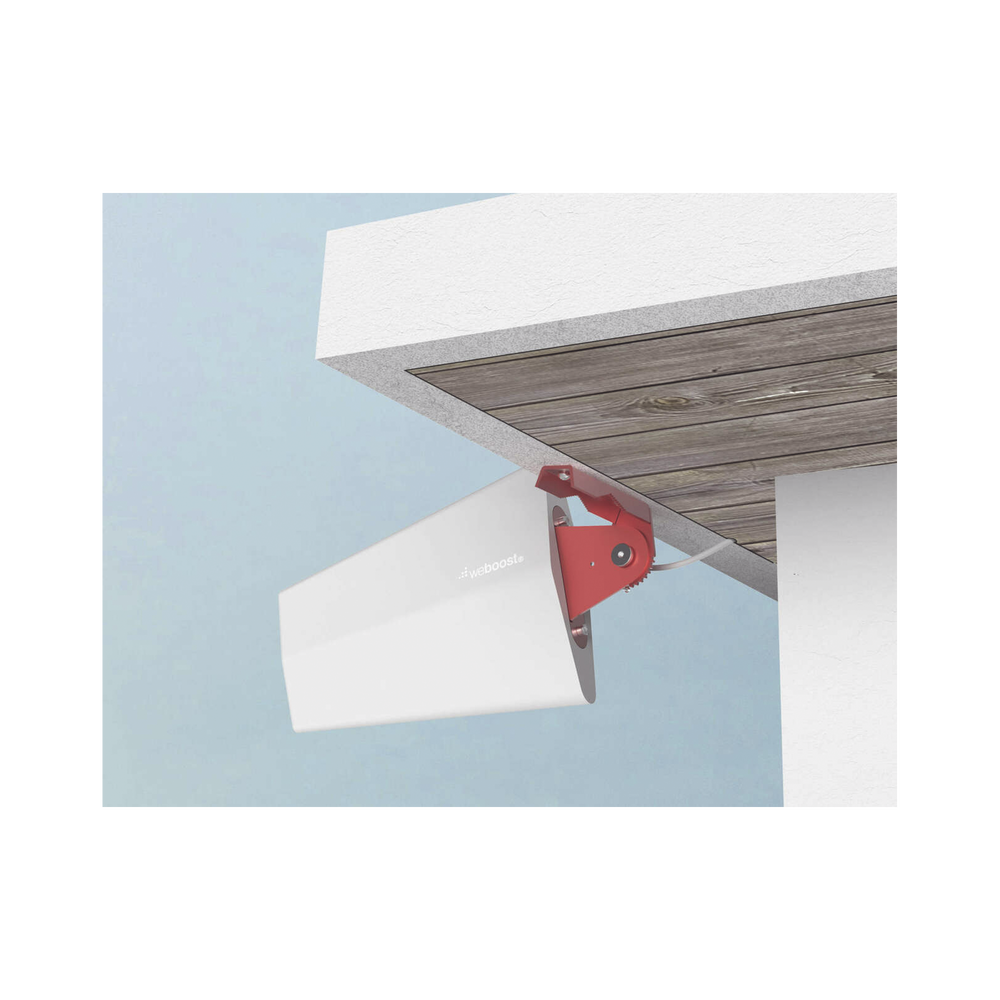

With its tilt-and-swivel mounting bracket, the directional outdoor antenna securely mounts to exterior walls, poles, or vent pipes measuring 31.75 to 50.80 mm wide. This mount allows you to target specific towers to help optimize reception. It works on all available cellular signal bands.

General Specifications

• Type: Directional Broadband
• Frequency Range: 689-960 / 1710-2700 MHz
• Gain: 7.1 dBi / 8.8 dBi
• Aperture (Horizontal / Vertical): 120°/ 70° / 100°/ 61°
• Impedance: 75 Ohm
• Power: 50 Watts
• Connector: F Female
• Dimensions: 288 x 215 x 66.6 mm

Works on all cellular bands worldwide for voice and data: LTE / CDMA / GSM / UMTS / AWS, High performance for weBoost cellular repeaters / boosters, High efficiency and compact design, UV-stable white sealed radome, 2-year warranty
