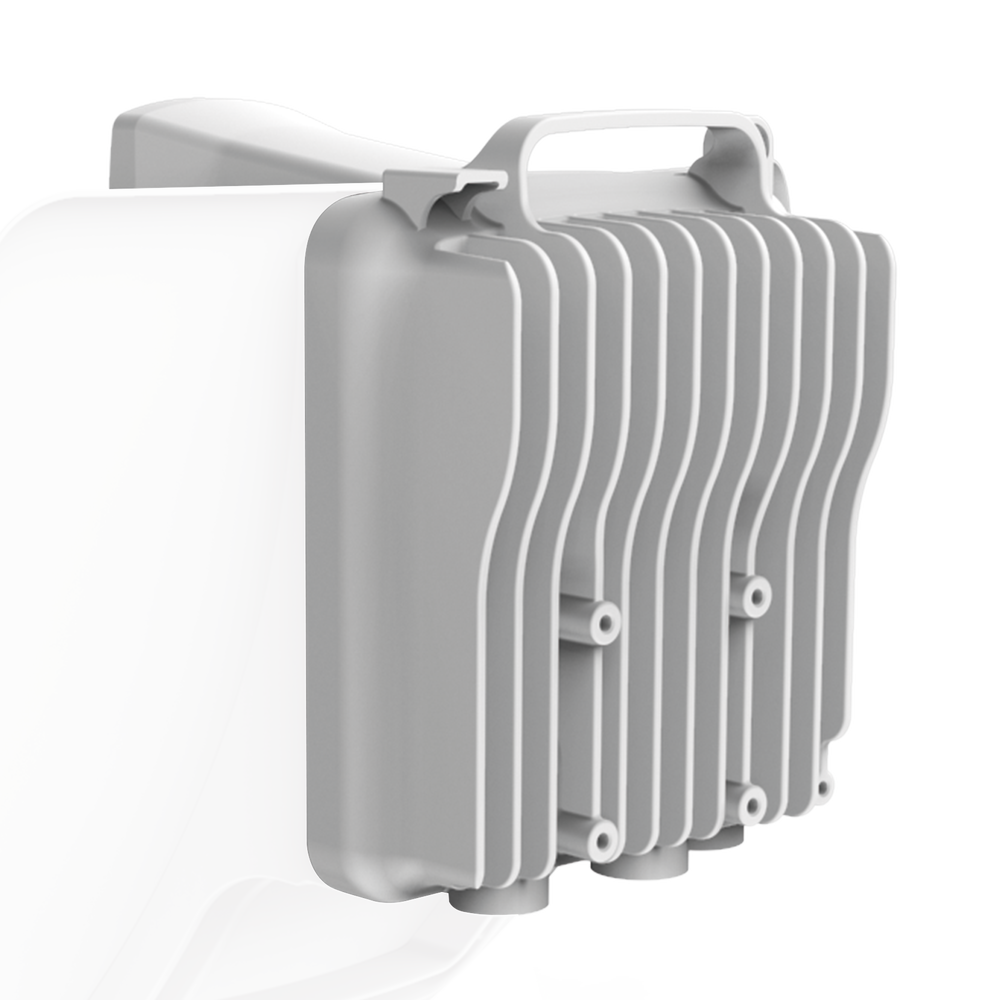

cnWave V3000 Client Node Radio, 60 GHz (free frequency), 7.6 Gbps, up to 800 meters

Recommended distance for multipoint client ( V5000 node): 800 meters

Maximum distance for Point to Point: 1.5 km

Designed for high-speed, high-density deployments

Cambium Networks’ cnWave 60 GHz solution provides easy, fast, and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions with a significantly lower cost of ownership than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access, or LTE/5G small cell access. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

The V3000 features a high-gain 44.5 dBi beamforming antenna. Client nodes can support up to 7.6 Gbps with channel bonding for PMP and PTP configurations.

Cloud and on-premises management

The 60 GHz cnWave is powered by Cambium Networks’ cnMaestro management system. cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. The cnMaestro Wireless Network Manager simplifies device management by delivering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers.

Main features

Physical and Electrical Characteristics

Performance

Security

*Requires antenna model C600500D001A, mount C000000L125A, and PoE power supply model N000000L142A.

Works as a multipoint client with V5000 or for Point-to-Point with another V3000, Low latency < 1 ms, IP67 protection, Secondary PoE port to power ePMP subscriber, Requires antenna model C600500D001A, mount C000000L125A and PoE power supply model N000000L142A
