• Arco Detector de Metales de 18 Zonas con Anclaje para Fijarse al Piso. Incluye Sensor IR para evitar falsas Alarmas / Certificado por la Administración Federal de Aviación de EE. UU. (FAA)
1 4

RANGER SECURITY DETECTORS

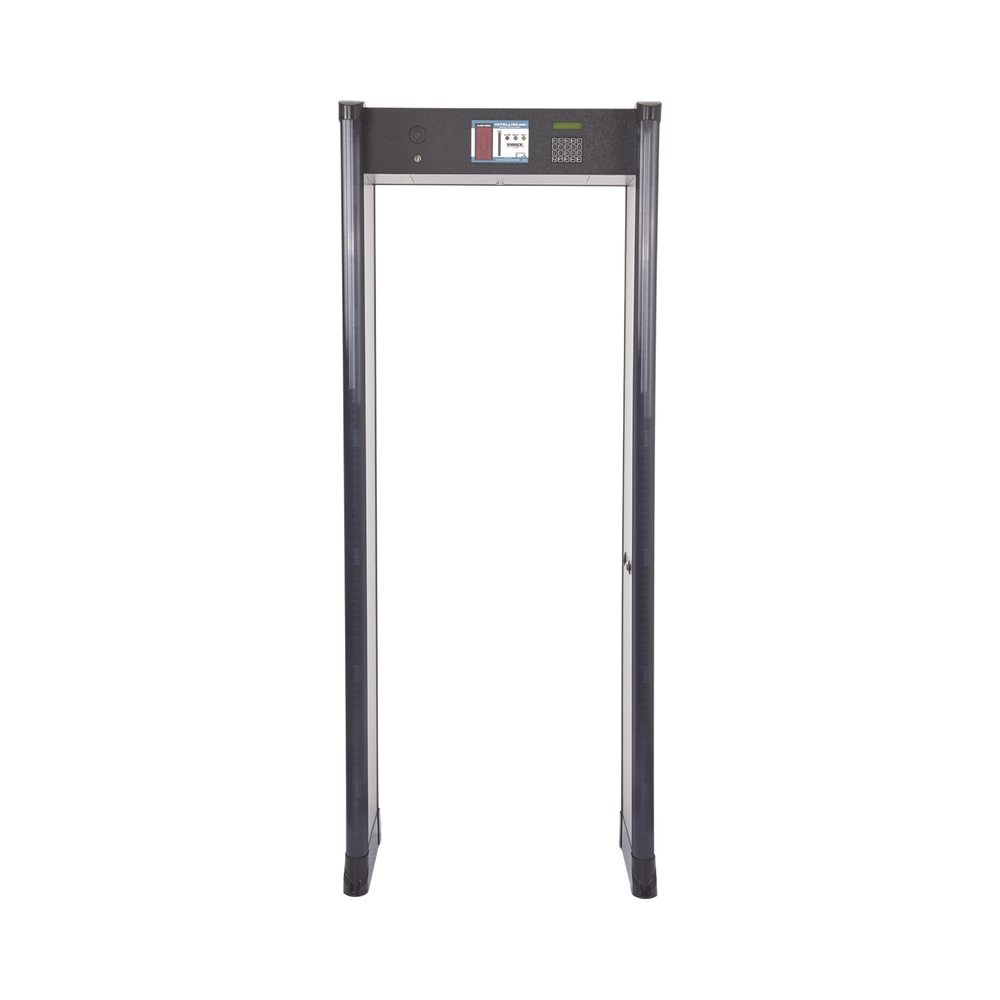

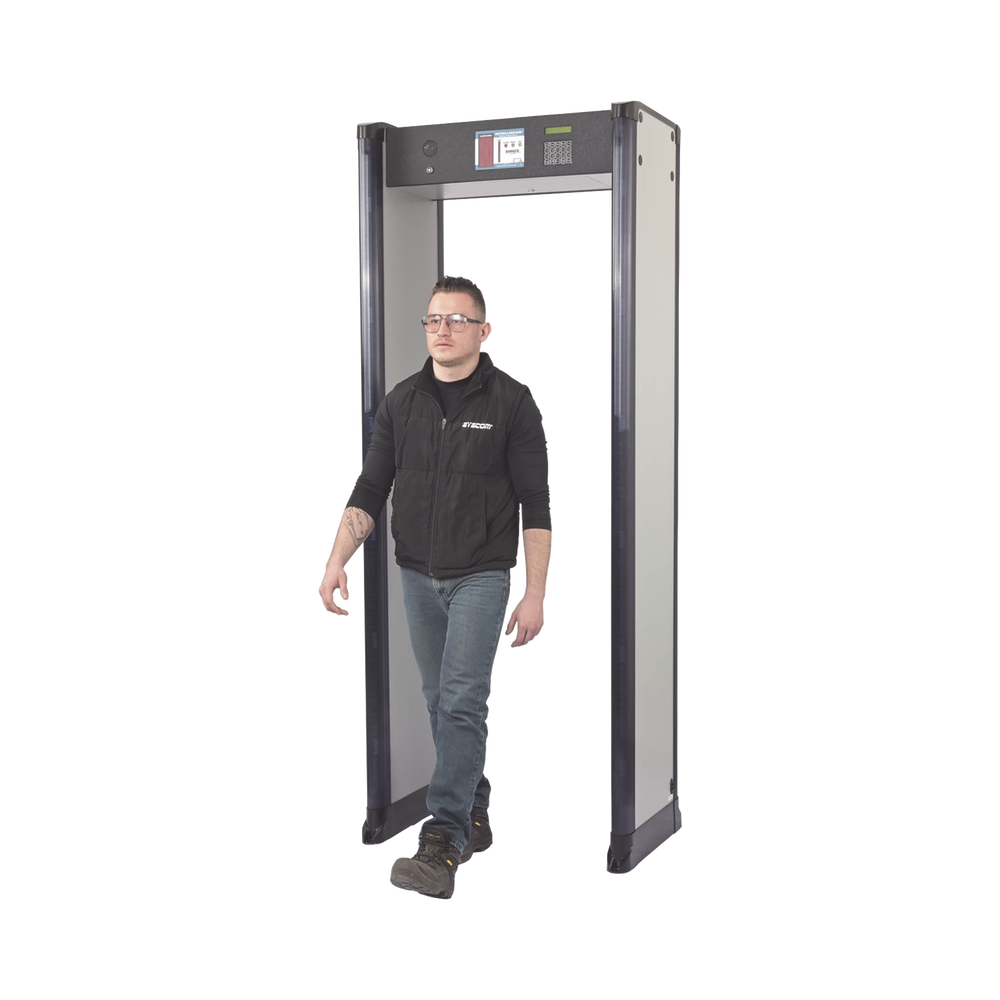

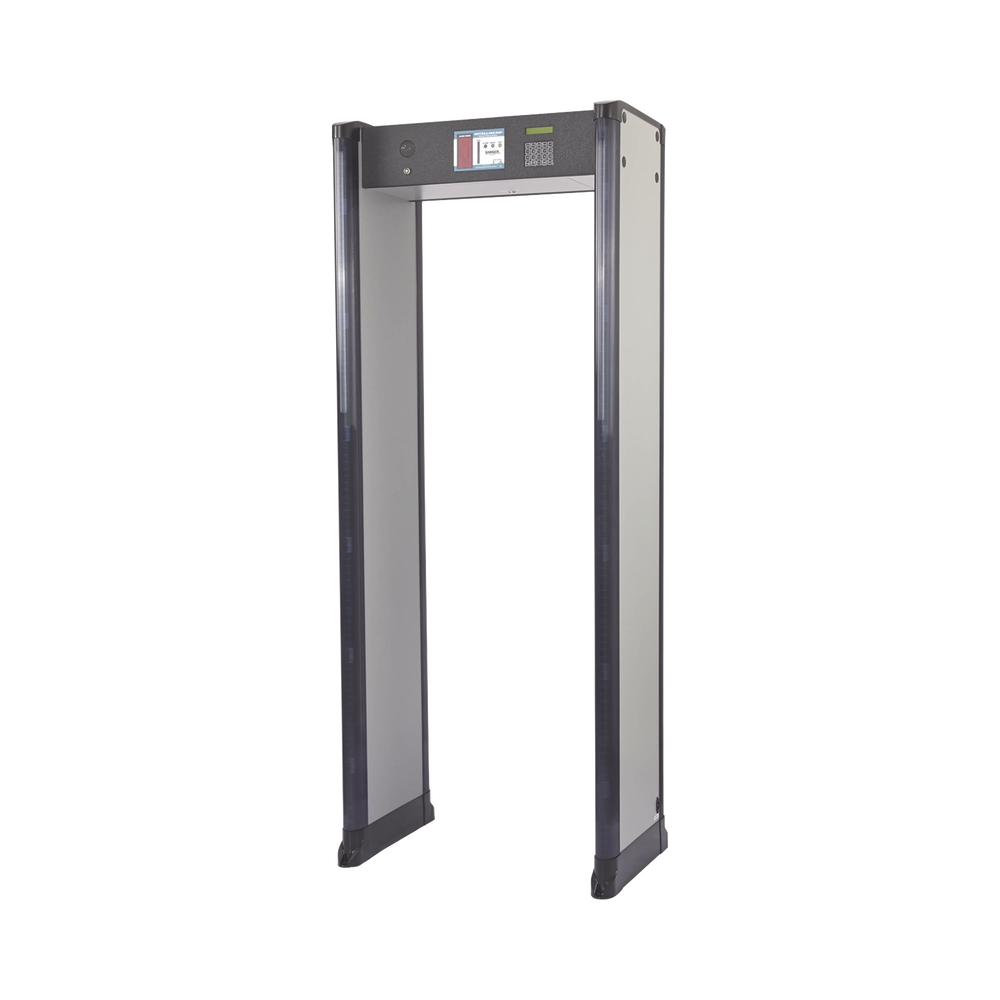

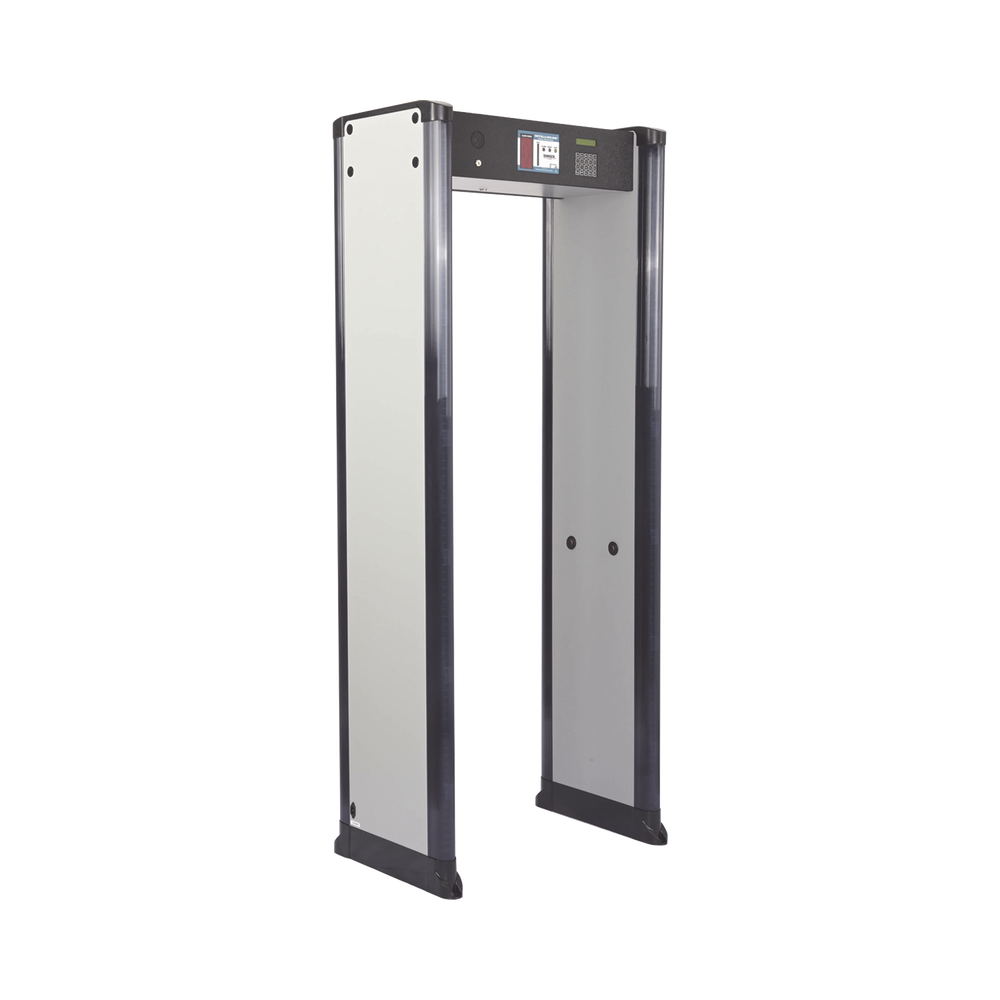

18-Zone Walk-Thru Metal Detector with Floor-Mounting Bracket. Includes IR Sensor to Prevent False Alarms / Certified by the U.S. Federal Aviation Administration (FAA)

18-Zone Walk-Thru Metal Detector with Floor-Mounting Bracket. Includes IR Sensor to Prevent False Alarms / Certified by the U.S. Federal Aviation Administration (FAA)

$23.777.285 COP
$26.006.405 COP $23.777.285 COP
Sale Sold out
Shipping calculated at checkout.

18-Zone Walk-Thru Metal Detector with Floor-Mounting Bracket. Includes IR Sensor to Prevent False Alarms / Certified by the U.S. Federal Aviation Administration (FAA)

General Description

The Ranger Intelliscan Eight-Zone uses a unique continuous wave multi-sensor; an integrated processor analyzes data from multiple sensors individually. It features an alarm display panel that shows arc opening, displaying six separate detection zones. The Intelliscan Eight-Zone uses self-diagnostics that monitor environmental electronics, interference conditions, and metal overload. The alarm display panel includes a twelve-segment signal strength bar graph that provides an indication of the size and strength of the object. Intelliscan eliminates common detector problems such as false alarms, uneven detection, external interference, and inconsistent operation.

Main features:
  • Setting independent zones.
  • Continuous wave measurement technique.
  • Self-diagnosis system.
  • Keyboard for programming.
  • Base to be fixed to the floor.
  • On/off key.
  • Master code for programming access.
  • Operating system status LED.
  • Infrared sensor to avoid false alarms.
Physical and Electrical Characteristics:
  • Operating temperature from 0 to 55 ºC
  • Humidity 95% non-condensing.
  • Power supply: 110 Vac
  • Consumption: 12 W.
  • Dimensions: 90 x 220 x 58 cm.
  • Weight: 65.45 kg.
Regulatory standards:

The Intelliscan Eight-Zone is certified by the U.S. Federal Aviation Administration and meets or exceeds all requirements of the National Institute of Law Enforcement and Criminal Justice (NILECJ) standard 0601.00 security levels 1-5.

Applications:

Very useful in airports, businesses, shops, schools, hotels, hospitals, industries, exhibitions, casinos, and civic events. Primarily for weapon detection and protection of your metal assets.

Available options

Options on request, add the following models to the quote:

  • BU Option Power backup with battery included (Up to 8 hours).
  • Option W Outdoor design, withstands torrential rain.
  • Option R Wheel Kit for easy mobility.
  • Option EJ Elegant executive design, with oak wood finishes (Cherry or vanilla colors).
  • Option CD People entry counter.
  • CDD Option Counter of people entering and leaving.
  • DR Option Remote Display for Remote Monitoring (up to 30 m).
  • SW Option (requires option N). RANGERNET PC monitoring software.
  • Option N Includes RJ45 connection for connection to LAN Network.

Units equipped for outdoor use can withstand rain, dust, and hot and cold temperatures.

2 Year Warranty

For more information, call us!

Ask the engineering department about the Detention Levels they support.

NOTE: WHEN INSTALLING, CHECK THE SERIAL NUMBERS OF THE SIDES WITH THE BRAIN. THESE MUST MATCH FOR CORRECT EQUIPMENT OPERATION.

    Out of stock

    MODELO: INTELL-218-ZIR
