ELITE PLUS Solar Panel / 450W / 50 VDC / Monocrystalline / 144 Cells / Grade A

ELITE PLUS Solar Panel / 450W / 50 VDC / Monocrystalline / 144 Cells / Grade A

$686.904 COP
$751.301 COP $686.904 COP
Sale Sold out
Shipping calculated at checkout.

ELITE PLUS Solar Panel / 450W / 50 VDC / Monocrystalline / 144 Cells / Grade A

Powering Solutions with Clean, Renewable Electricity.

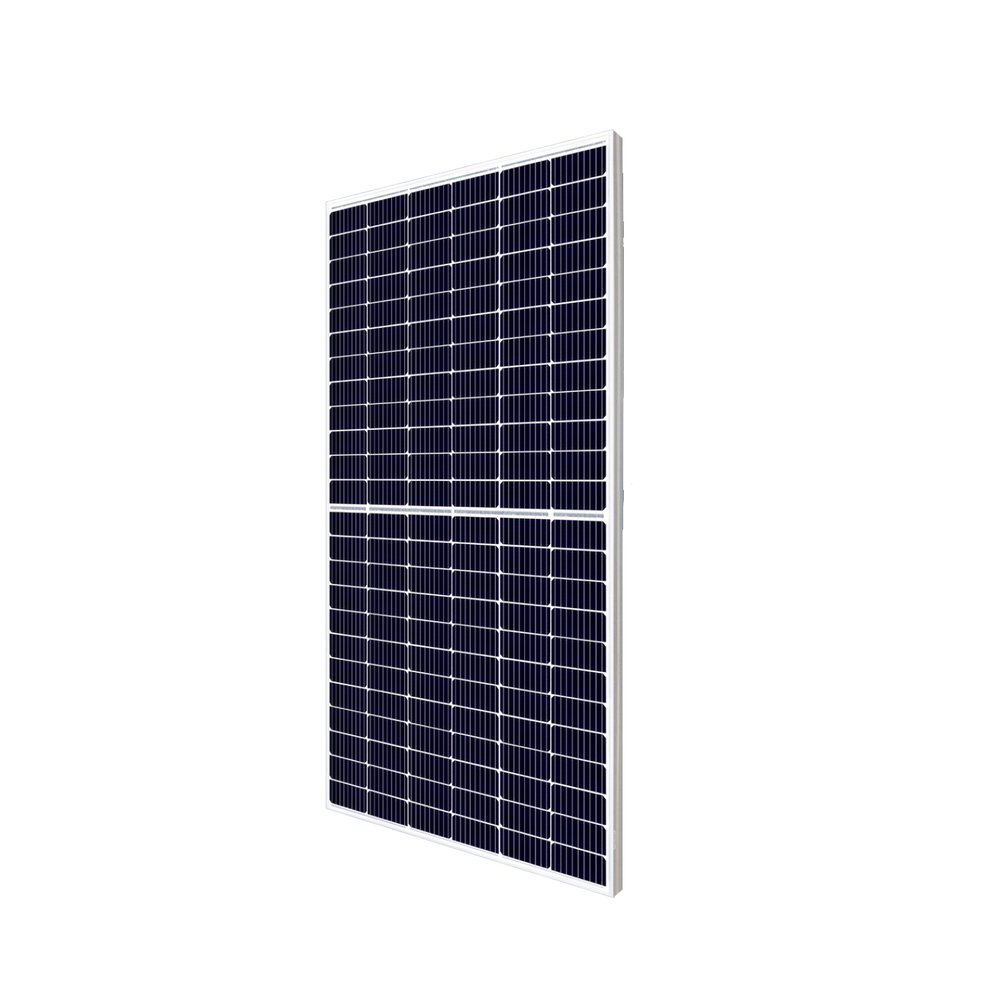

Photovoltaic Solar Module ET-M672BH450WW/WB

Solar modules convert the sun's energy into electrical energy, enabling them to power any energy-demanding solution. ET-SOLAR solar modules are listed as Tier 1 modules, with quality specifications that exceed market demand. ET-SOLAR manufactures its modules using PERC technology, allowing for increased energy capture efficiency compared to photovoltaic solar panels with the same distribution, thereby reducing the final cost of the panels.

Module Features:

  • High resistance to salt spray and ammonia .

  • It can withstand wind load up to 2400 Pa .
  • Enhanced safety thanks to excellent fire and heat resistance.
  • High resistance against extreme environmental conditions.
  • The advanced design on the glass surface guarantees a excellent performance in low light environments.

  • Dimensions: 2094 x 1038 x 35 mm .

  • 12 Year Warranty Against Manufacturing Defects.
  • Service life of up to 25 years (ensuring power output).
  • They can be implemented for isolated systems.
  • ON-GRID or Hybrid Systems.
  • Not suitable for use in BDM600 Microinverters.

Electrical Information in STC

  • Maximum Power ( Pmax ): 450 W

  • Power Tolerance: 0 ~ 5 W
  • Module Efficiency: 20.4%

  • Maximum Voltage Capacity ( Vmp ): 41.4 V

  • Open Circuit Voltage ( Voc ): 50 V

  • Maximum Current Capacity ( Imp ): 10.88 A
  • Short Circuit Current ( Isc ): 11.47 A
  • Operating Temperature: -40 ~+ 85°C
Electrical Information in NOCT

  • Maximum Power ( Pmax ): 334 W

  • Maximum Voltage Capacity ( Vmp ): 37.96 V

  • Open Circuit Voltage ( Voc ): 46.7 V

  • Maximum Current Capacity ( Imp ): 8.90 A
  • Short Circuit Current ( Isc ): 9.56 A

Warranty Recommendations and Comments:

  • If the MC4 connectors are cut off, the module loses its warranty.
  • Do not install when any object at any point of the day creates a shadow; this is considered a poor installation and may void the warranty.
  • Do not mix modules of different power ratings in the same controller or inverter; this is considered improper installation and may void the warranty.
  • It is recommended that you use the EPMC42 crimping pliers when crimping the PROSECA-01 connectors to the cable you will use to connect your module to the inverter or controller.
    -Can withstand snow load up to 5400 Pa and wind load up to 2400 Pa, TIER 1, -Advanced surface design ensures excellent performance in low-light environments.

495 in stock

MODELO: ETM672BH450WW/WB
