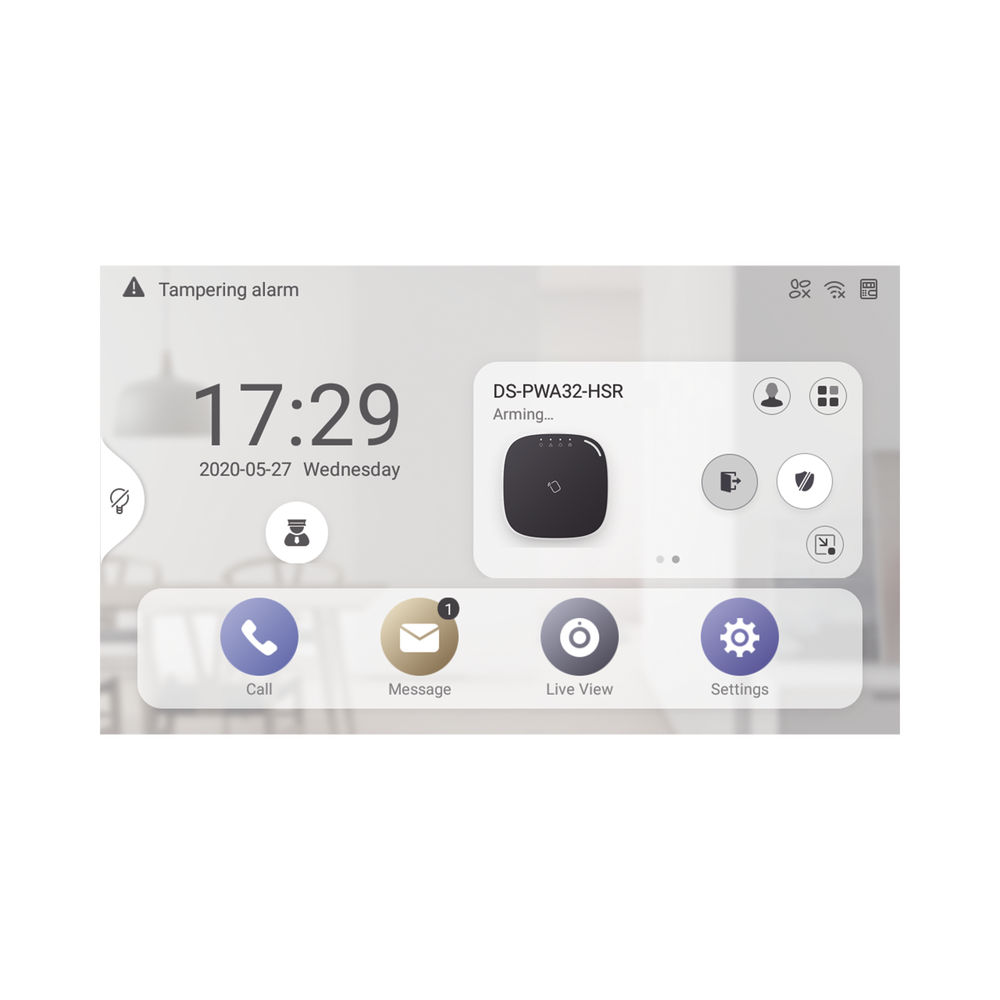

• 7' color touch screen.
• Resolution: 1024 x 600
• Opening from monitor.
• Live view of street front.
• Built-in microphone and speaker.
• Alarm Input: 8
• WiFi network, 10/100 Mbps Ethernet. TCP/IP, SIP, RTSP.
• Warranty: 2 years

• Operating voltage: 12VDC, 1A (power supply not included) PoE Standard IEEE802.3af.
• Power consumption: 8W
• Operating temperature: -10º ~ 50º C (14º ~ 122º F)
• Dimensions 187 mm × 137 mm × 25.77 mm (7.9' × 5.5' × 0.6')
• MicroSD support up to 32 GB.
• Alarm Inputs: 8
• Alarm Outputs: 2

Supports up to 5 monitors as an extension (Android monitors only) ( Demo )

• The number of street fronts supported will depend on the model itself.
• Supports 16 video channels in total (between street fronts and cameras).
• Supports opening 2 doors (if the linked street front supports it).

Compatible with Hikvision IP Street Fronts.

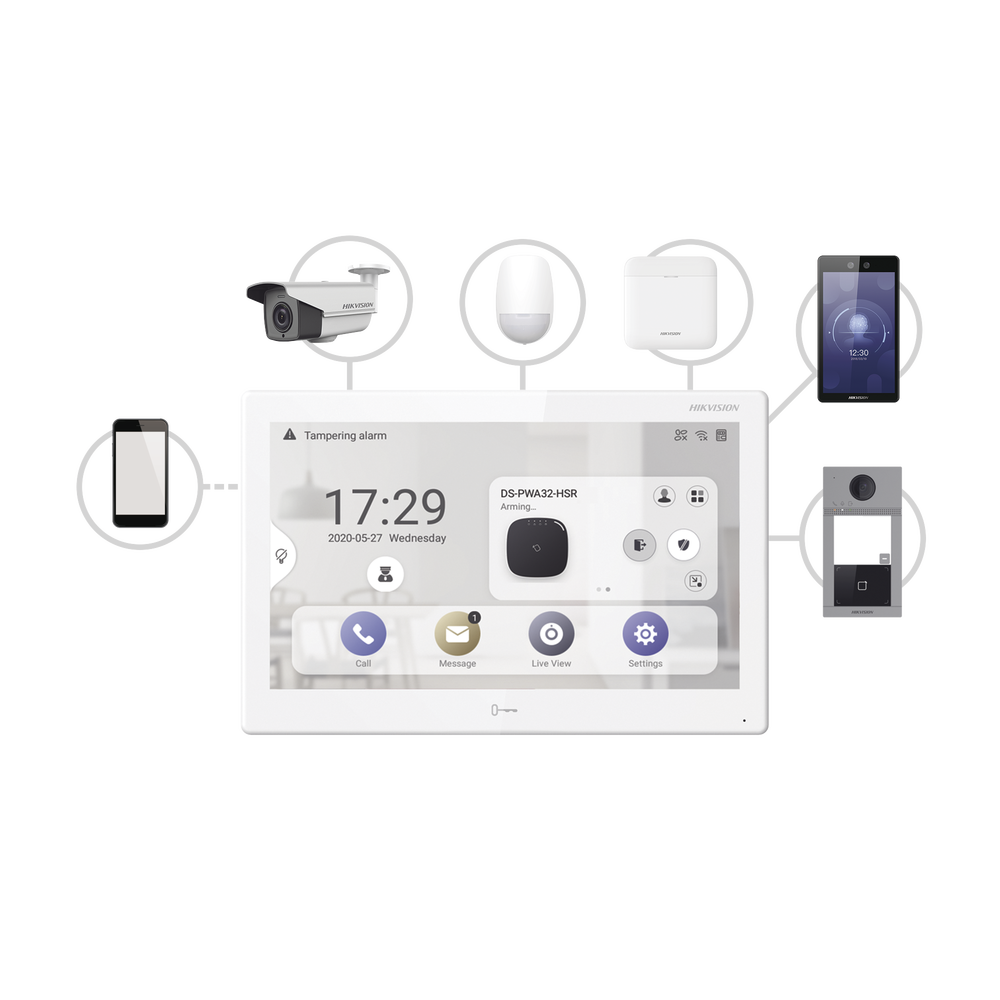

It works as a station compatible with IP video intercom systems, cameras and biometric access control systems, as well as arming and disarming AXPRO alarm panels.

Shortcut menu (HikConnect window) is only displayed on primary monitors (not slave or secondary monitors).

Supports the installation of 2 third-party apps (Compatibility: Here )

Compatible street fronts:

• DS-KV8X13-WME1(B)
• DS-KV6113-WPE1(B)
• DS-KD8003-IME1
• DS-KD9203-E6
• DS-K1T671-M
• DS-K1T341AMF
• DS-K1TA70MI-T
