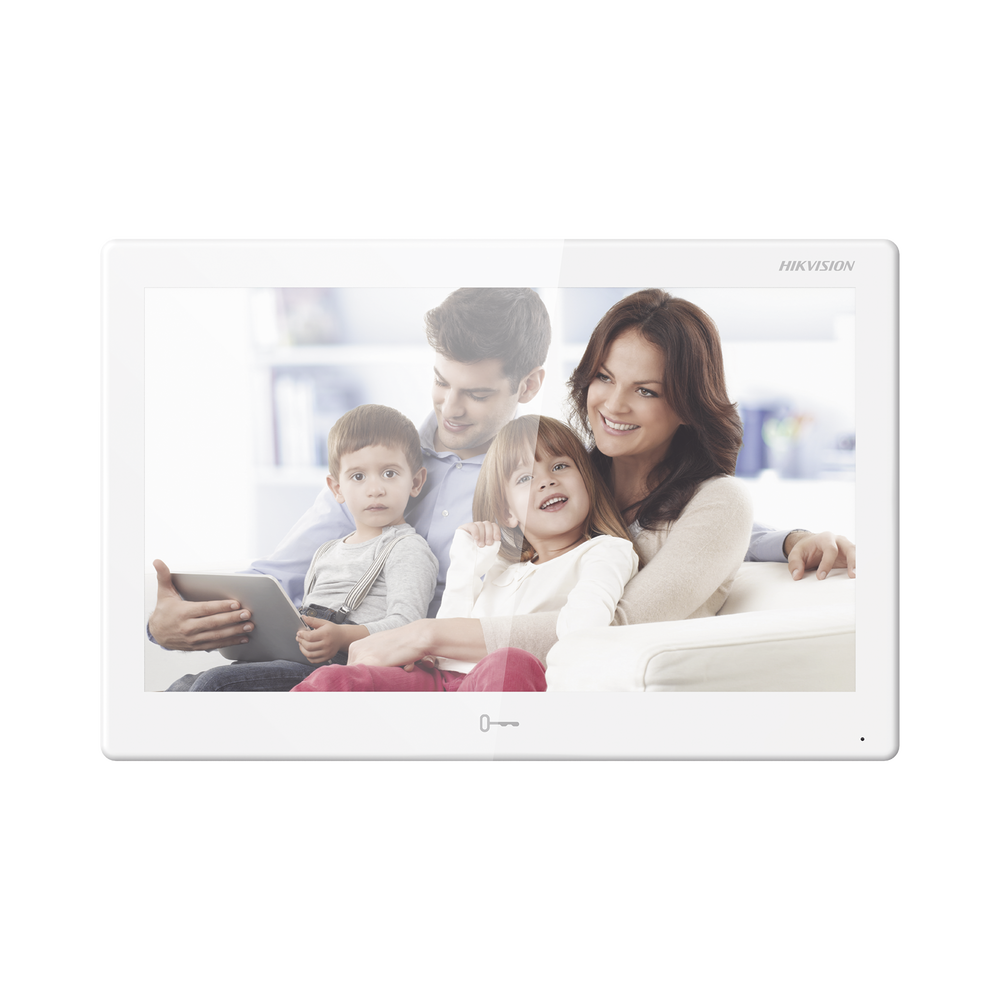

• 10.1' color touch screen.
• Resolution: 1024 x 600
• Opening from monitor.
• Live view of street front.
• Built-in microphone and speaker.
• Alarm Input: 8
• WiFi network, 10/100 Mbps Ethernet. TCP/IP, SIP, RTSP.
• Warranty: 2 years.

• Operating voltage: 12VDC, 1 A (power supply not included) PoE Standard IEEE802.3af.
• Power consumption: 8W
• Operating temperature: -10º ~ 50º C (14º ~ 122º F)
• Dimensions 187 mm × 137 mm × 25.77 mm (7.9' × 5.5' × 0.6')
• Alarm Inputs: 8
• Alarm Outputs: 2

Supports up to 5 monitors as an extension (Android monitors only) ( Demo )

• The number of street fronts supported will depend on the model itself.
• Supports 16 video channels in total (between street fronts and cameras).
• Supports opening 2 doors (if the linked street front supports it).

Compatible with Hikvision IP Street Fronts.

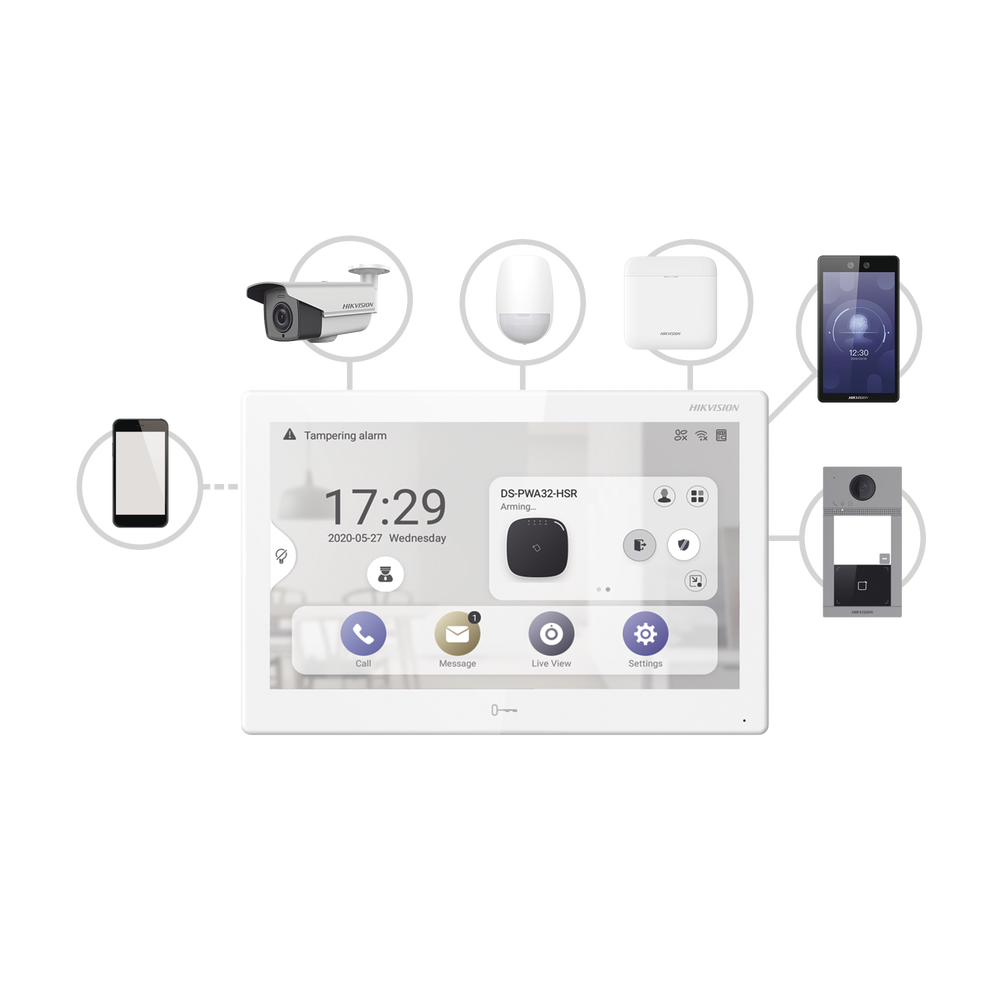

It works as a station compatible with IP video intercom systems, cameras and biometric access control systems, as well as arming and disarming AXPRO alarm panels.

Supports the installation of 2 third-party apps (Compatibility: Here )

HikConnect app already embedded.

The accessories in the main image are purchased separately (video intercom, camera, PIR sensor, alarm panel, facial biometric)

Compatible street fronts:

• DS-KV8X13-WME1(B)
• DS-KV6113-WPE1(B)
• DS-KD8003-IME1
• DS-KD9203-E6
• DS-K1T671-M
• DS-K1T341AMF
• DS-K1TA70MI-T
