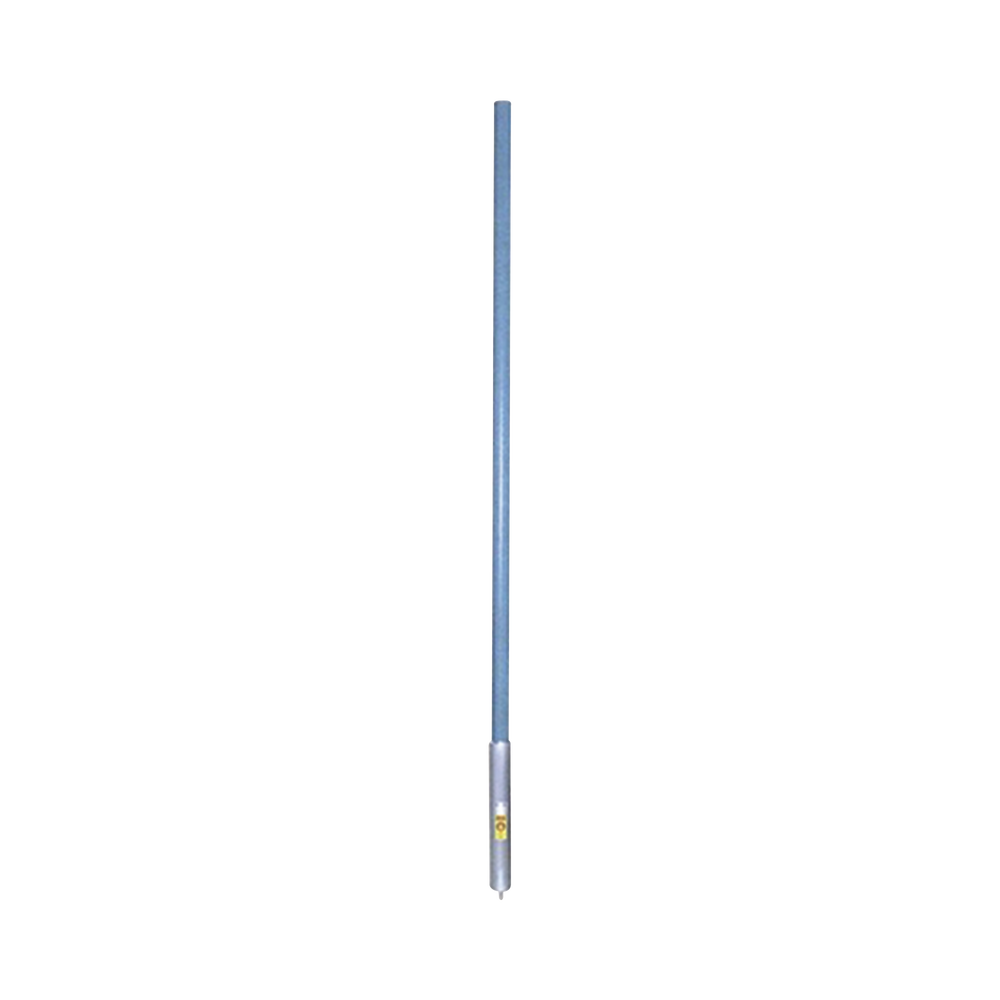

Collinear Omni Fiberglass Base Antenna, 430-450 MHz, 6 dB, N Female.

Collinear Omni Fiberglass Base Antenna, 430-450 MHz, 6 dB, N Female.

Collinear Omni Fiberglass Antenna, 430-450 MHz, 6 dB, N Female.

• Frequency Range: 430 -450 MHz.
• Bandwidth: 20 MHz.
• Gain (nominal): 6 dB (8.1 dBi).
• VSWR (max): 1.5:1
• Polarization: Vertical.
• Impedance: 50 Ohm.
• Pattern: Omni-directional.
• Vertical Opening (typ.): 12º
• Average Power Input: 500 Watt.
• Discharge protection: DC grounding.
• Connector: N Female.
• Mounting not included (2 CLAMP 130 suggested)
• Dimensions (Height/Width/Depth): 3200/ 51/ 51 mm.
• Tube Base Diameter: 51 mm.
• Base Tube Mount Length: 305mm.
• Weight: 4.31 kgs .
• Wind resistance: 290 km/h.

*Ask for delivery time.
