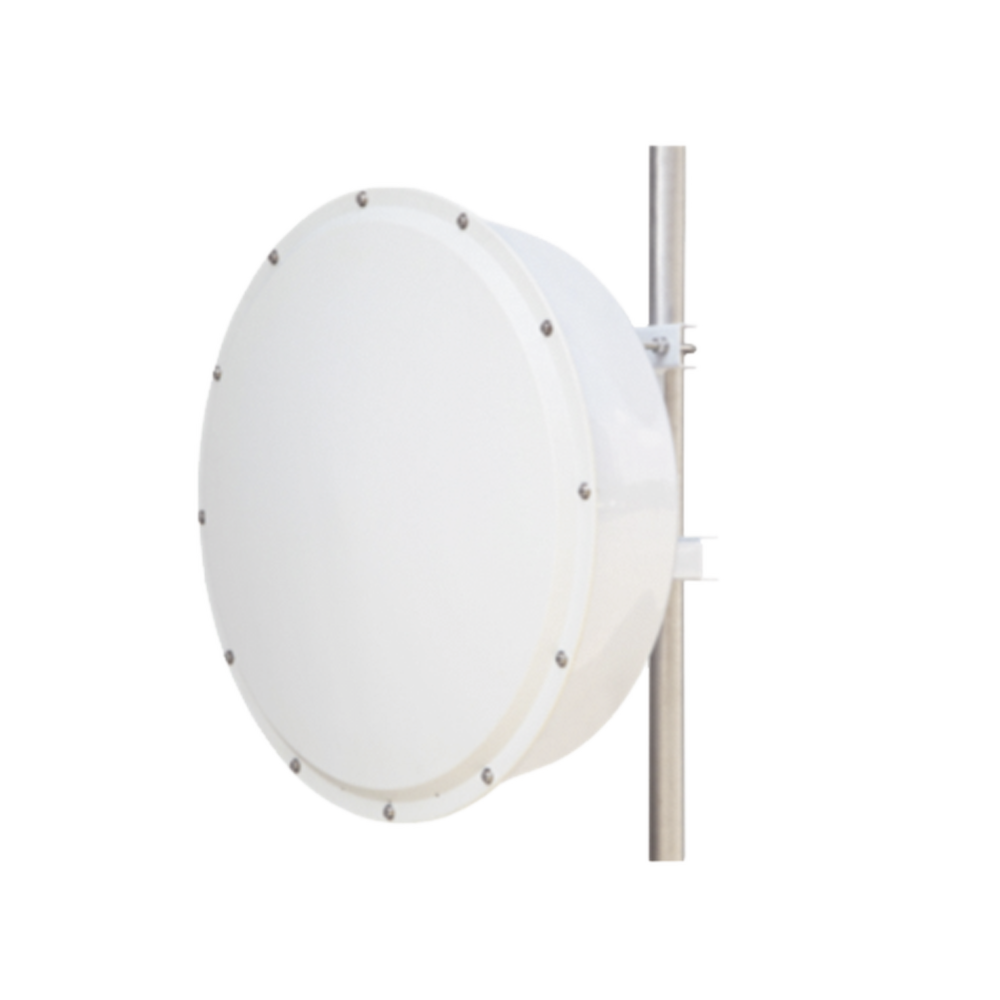

Heavy-duty directional antenna, 30 dBi gain, (4.9-6.5 GHz), Deep dish for increased noise immunity, N-female connectors, Mount and radome included

Heavy-duty directional antenna, 30 dBi gain, (4.9-6.5 GHz), Deep dish for increased noise immunity, N-female connectors, Mount and radome included

Technical Specifications

• Frequency (4.9 - 6.4 GHz).
• Vertical and Horizontal Polarization.
• Front-to-back > 40 dB
• Isolation > 35 dB
• Maximum power per port 50 W.
• Impedance 50 Ω

Mechanical Specifications.

• Dimensions (.6m - 2 ft).
• Weight 8 kg.
• N-female connector
• Operational temperature -55 to + 70 °C
• Wind Survival 200 km/h
• Dimensions 70 x 70 x 35

Does not include jumpers.

The perfect dish design to reduce interference in the harshest environments.

Directional antenna for 30 dBi point-to-point links for distances up to 30 km, in frequencies from 4.9 to 6.4 GHz

---

Its deep parabola makes it highly efficient in areas with high noise saturation, since the dipole is not exposed outside the parabola, which gives it greater protection against interference.

Highly efficient 40 dB front-to-back to avoid trace lobes within the link

---

Compatible with any radio on the market

Avoids side lobes, Deep dish for greater noise immunity
