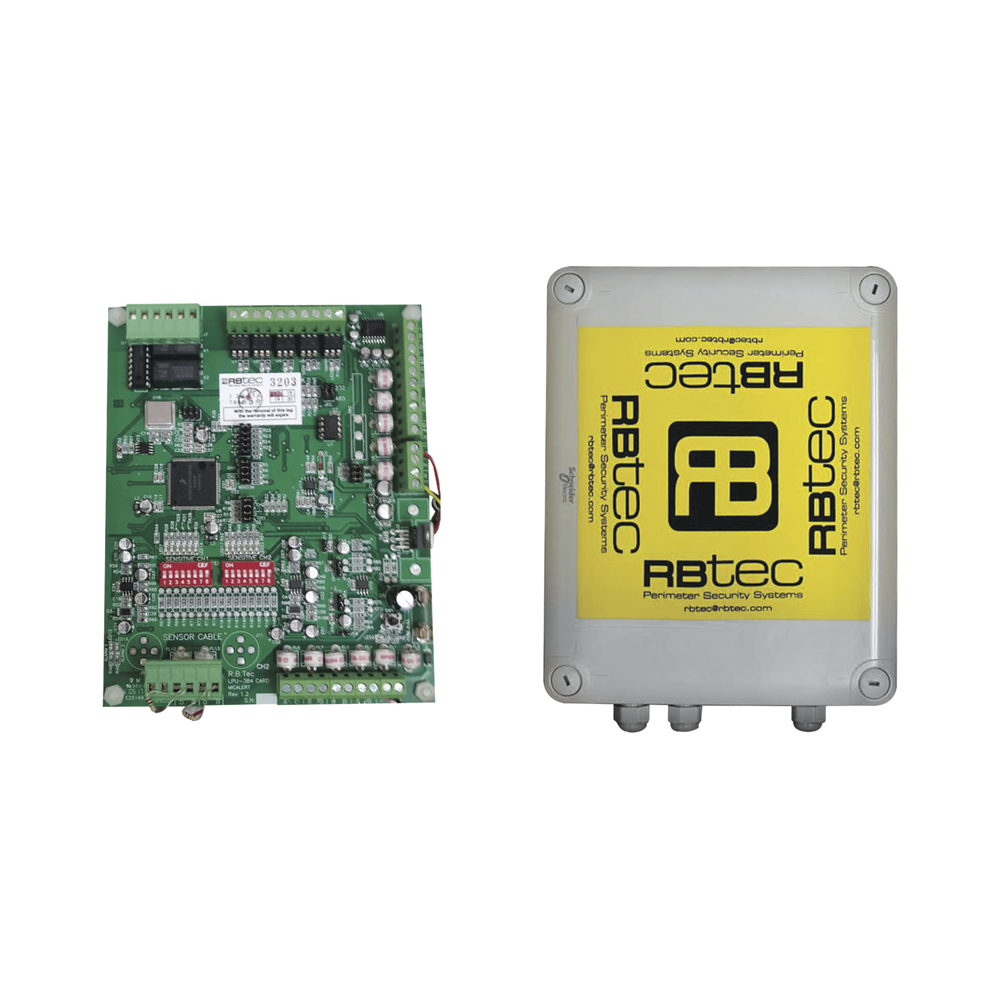

Analyzer unit for 2 zones / Each zone 305 meters / 2 Relay outputs / With JB4 cabinet

Analyzer unit for 2 zones / Each zone 305 meters / 2 Relay outputs / With JB4 cabinet

Analyzer unit for up to 2 zones, each zone up to 305 meters, with 2 relay outputs, one for the alarm of each zone


1 year warranty

Specs

Single/Dual Zone Microcontroller Module (LPU-402).

• Operating Power Required: 12 – 24VDC 40mA @ 12VDC

• Lightning protection: Gas discharge devices on all inputs/outputs and communication lines.
• Alarm Outputs: Intrusion output and line monitoring for each zone. Dry contact relays with NO and NC contacts rated at 1A @ 12VDC. Alarm transmission via RS-485 protocol.

• Alarm Indicators:
  Power LED.
  Alarm Relay Status LED.
  LED tamper indicator.

• Connector: F-type Coaxial Sensor Cable input for each zone.

• Enclosure: NEMA 4x, IP-66
  9.5' x 7.5' x 2.75” (24cm x 19.5cm x 7.0cm)
  Weight: 2.2 lbs (1Kg)

• Environment: Operating Temperature: - 40°F to 176°F (-40°C to 80°C)
  Relative humidity up to 98% non-condensing.

• Sensor Cable and Accessories: : Maximum length per zone: 1000ft (305m). Available in 250/500/1000ft (75/152/305m) reels.
  Steel outer skin.
  Diameter: 0.197” (5mm).
  Color: Silver
  UV resistant ties (610 per zone)

• Options: VX-25: Climate compensation unit (for multi-zone installation).
