(Wireless Wire nRAY) Full 60GHz link, Up to 2Gbps, "Ready to Connect"
(Wireless Wire nRAY) Full 60GHz link, Up to 2Gbps, "Ready to Connect"
Couldn't load pickup availability
(Wireless Wire nRAY) Full 60GHz link, Up to 2Gbps, "Ready to Connect"

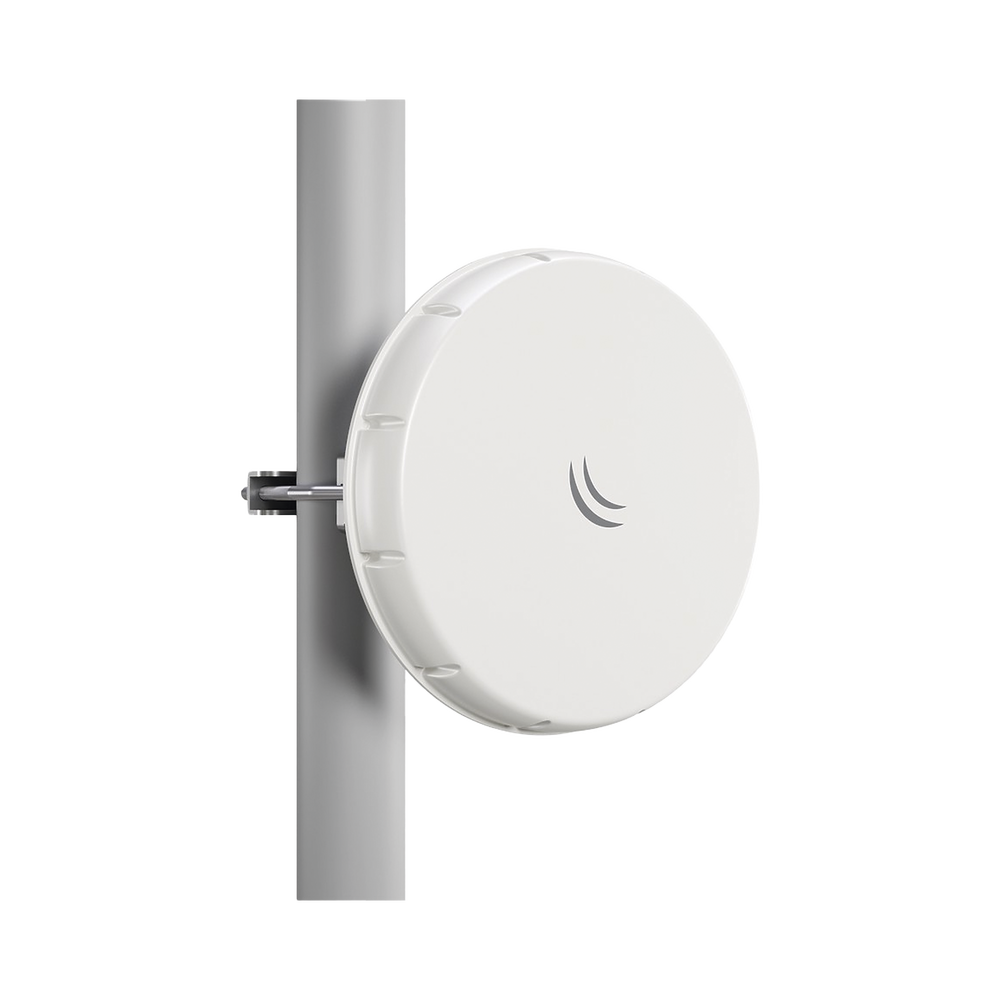

Our team has gathered and considered your feedback to create a worthy successor to our popular Wireless Wire dish. We're now proud to introduce the best 60 GHz plug-and-play point-to-point link solution to date: the Wireless Wire nRAY. It's a kit of two pre-paired devices that create a secure AES-encrypted wireless connection.
It can easily cover a distance of 1,500 meters and achieve speeds similar to fiber optics, and we've made some significant structural improvements. With the latest antenna technologies, this device is very compact, yet even more durable than its predecessors.
The new form factor has been designed with snowy areas in mind: you won't have to worry about huge chunks of snow getting stuck and messing with the signal. Due to its size and shape, the nRAY also attracts less unwanted attention. Using the special adjustment screws, perfect alignment can be achieved.
The 60 GHz frequency isn't affected by crowded wireless spectrum, so you can enjoy a smooth connection even in a busy urban environment. A powerful dual-core ARM64 CPU running at 1 GHz ensures wire-speed performance in almost all packet sizes. The included devices are preconfigured to connect automatically—simply point them at each other and power on! We've included power supplies, PoE injectors, and a handy precision mount for easy alignment: the solidMOUNT. It's an advanced metal pole-mount adapter that allows for both vertical and horizontal adjustment.
Specs
| Details | |
|---|---|
| Product code | nRAYG-60adpair |
| Architecture | ARM 64-bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| Nominal CPU frequency | 1 GHz |
| Dimensions | 261 x 166 mm |
| RouterOS License | 3 |
| Operating system | RouterOS |
| RAM size | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200,000 hours at 25C |
| Room temperature tested | -30 °C to 70 °C |
Feeding
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Maximum energy consumption | 6 W |
| Fan count | Passive |
| PoE in | 802.3af/at |
| PoE on input voltage | 12-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Certification and approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Parts included
The device comes with a pre-installed and licensed operating system. No separate purchase is required, and the product is ready to use. The device includes free software updates for the life of the product, or for a minimum of 5 years from the date of purchase.
- 60 GHz MIMO 2x2 grid antenna, Link distance up to 1500 meters, up to 2 Gbps, 802.11ad Wireless Standard, 2-core 1 GHz CPU, 256 MB RAM, ARM 64-bit, RouterOS License 3, 802.3af/at PoE Power Supply 12-57 Volts, 6 Watts
Out of stock
MODELO: NRAYG-60ADPAIR
