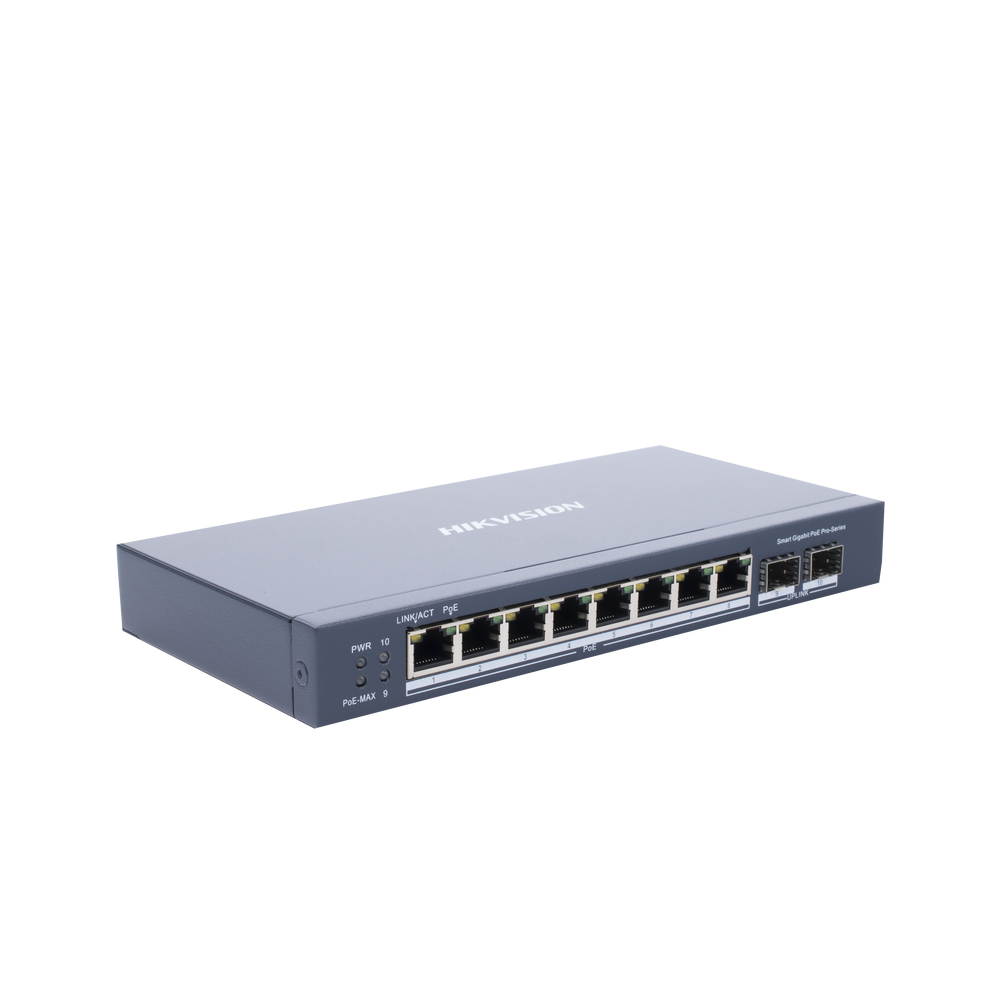

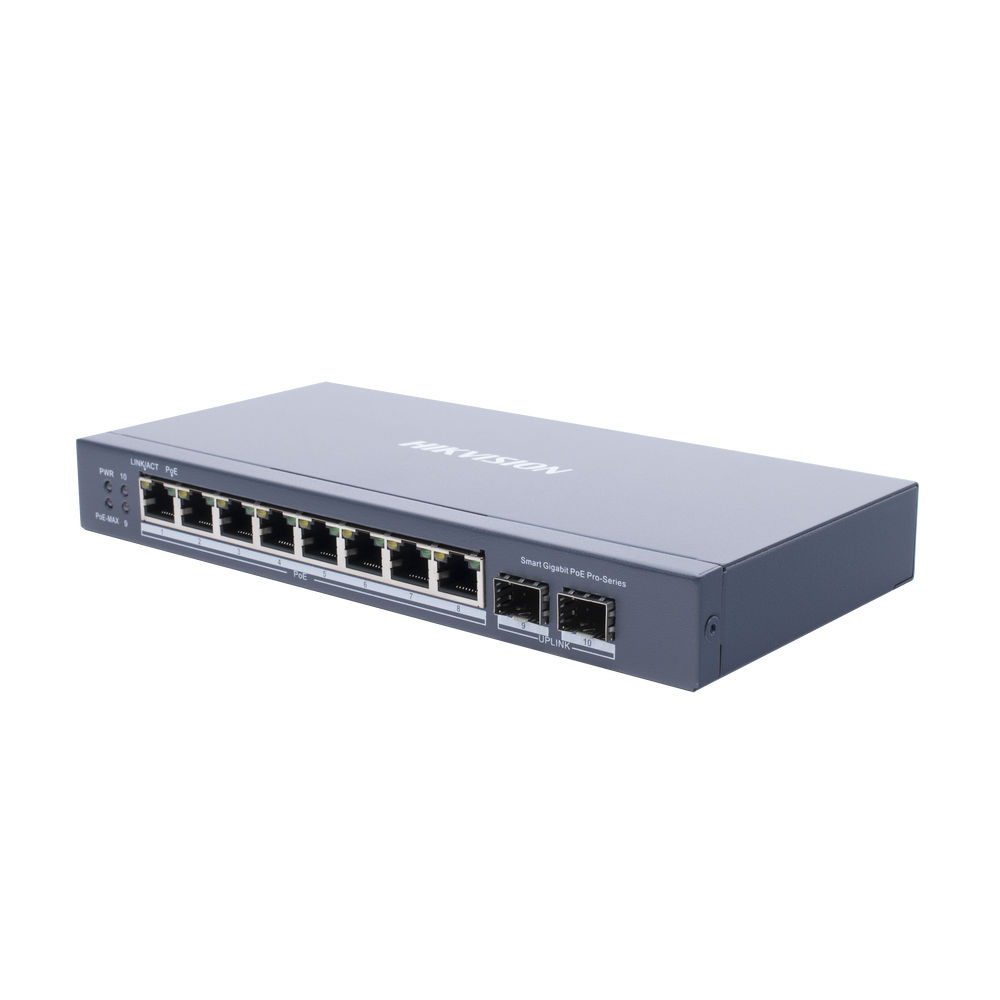

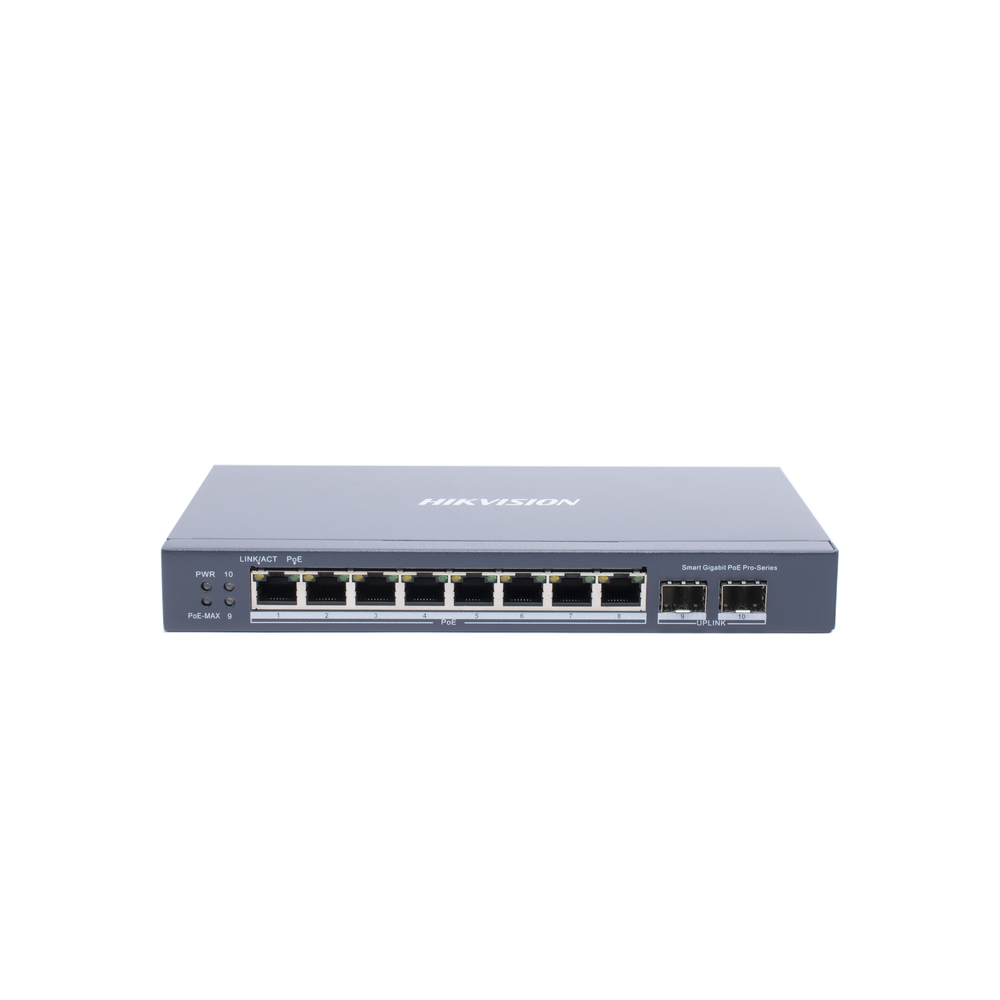

Gigabit PoE+ Switch / Manageable / 8 10/100/1000 Mbps PoE+ ports / 2 SFP ports / remote configuration from Hik-ProConnect / PoE up to 250 meters / 110 W

Main features:

• 8 10/100/ 1000 Mbps PoE 802.3af/at RJ45 ports .
• 2 SFP ports for 1Gb fiber optics.
• Network topology management.
• Sending Network alarms.
• Network health monitoring.
• Extended PoE up to 250m to power cameras.
• PoE Watchdog to detect inactivity and automatically reboot unresponsive cameras.
• Compatible with Hik-ProConnect, HikCentral and iVMS4200 management platform .
• PoE power budget 110W .
• Switching capacity 20 Gbps .
• Packet forwarding rate 14.88 Mpps.
• Supports QoS to provide more stable bandwidth and lower latency for network traffic.
• Supports STP and RSTP protocols to prevent loops in a network (due to physical connection errors).
• Supports VLANs to virtually divide the network to improve network security/communication .
• Supports LLDP protocol for auto-discovery on the network.
• Supports Link Aggregation to aggregate the capabilities of 2 ports into one.
• Supports Port Isolation to virtually separate each port to prevent data leakage.
• Supports speed limiting for both input and output ports.
• Supports Port mirroring to forward data from one port to another for network monitoring.
• Maximum power consumption 120 W.
• Dimensions (W x H x D) 217.6 × 27.8 × 108.55 mm.
• Operating temperature: -10–55 ℃.
• Storage temperature: -40–85 ℃.

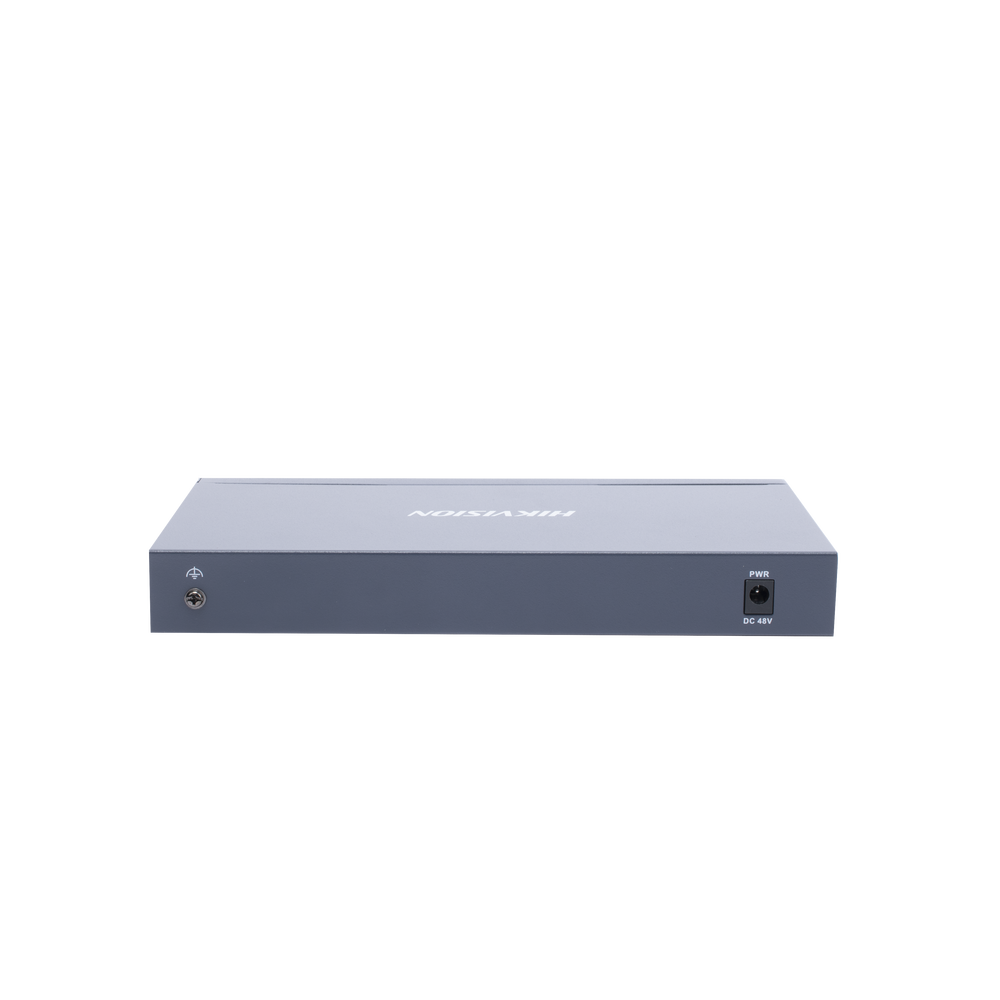

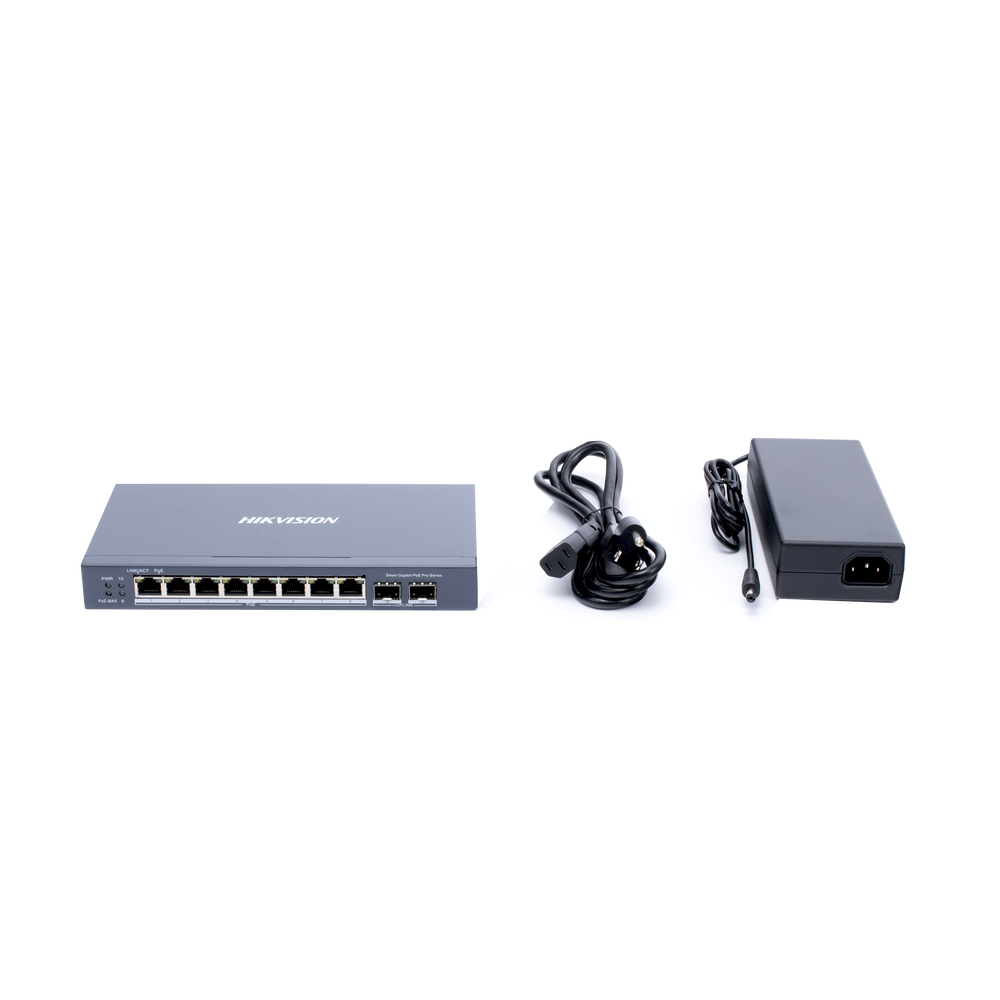

• Power supply 48 VDC, 2.5A (included) .
• Weight 1.21 kg.
• 2 Years warranty .

• If you want to know the health status of this device from Hik-ProConnect, you need to purchase the HKPRO-HM-D-1A license.
• NOT rack mountable

The new series of Hikvision switches have an added value which consists of the integration between switches and Hikvision IP devices with the Hik-ProConnect management platform, in addition to being compatible with the HikCentral and iVMS4200 platforms, all this to have a better experience when managing the network.

But how can we identify this new series of Hikvision switches? What is Hik-ProConnect? And how does it work? We'll show you below with some quick and easy videos .

Some of the functions:

• • Network health monitoring from HikProconnect and iVMS-4200 .
  • Port reset from HikProconnect and iVMS-4200 .
  • Network topology with Hikvision devices from HikProconnect and iVMS-4200 .
  • Port event alarm (port disconnection and connection) HikProconnect and iVMS-4200 .
  • Real-time bandwidth consumption statistics from HikProconnect and iVMS-4200 .
  • Real-time electricity consumption statistics from HikProconnect and iVMS-4200 .

Additional functionalities from Hik-ProConnect

Alarms, monitoring and network health status

The new Hik-ProConnect remote management platform helps us interact with our Network in a much easier and faster way, since for example, when there is a connection or disconnection in any of the ports of a Switch, it will indicate in real time that there was that mishap and shows us that that port is alarmed by a change that occurred, likewise we can clear that alarm once that connection has been reviewed and everything returns to normal .

It is also very helpful for us to monitor the health of our Network and constantly check that our equipment is working smoothly and the data Network is stable. This Platform allows us to perform these tasks remotely from anywhere we have Internet access .

Network Topology

Network Topology is very important when creating our project since this will determine whether it works correctly or not. There are different types of Topologies. Many times we do not know a Network well or this issue is complicated for us, but the new Hik-ProConnect platform makes this easier for us since it makes a diagram of how our Network is connected, with the information of each device and also every time we add new equipment to the Network this Topology is automatically updated and shows us the new information.

Demonstration of some functionalities in iVMS-4200 Platform

Demonstration of some functionalities in Hik-ProConnect Platform

Common connection diagram between Fiber Optic Switches

How the PoE Watchdog Works

Extended PoE Operation

Hikvision PoE Switches allow, when using a Hikvision PoE extender model DS-1H340101P, to reach distances of up to 500 meters , of course this with the condition that the Hikvision IP cameras do not exceed 8 Watts of total consumption .

Remote configuration from Hik-ProConnect, Extended PoE (250 meters), Real-time monitoring from iVMS4200, HikProconnect and HikCentral, Real-time alarms from iVMS4200, HikProconnect and HikCentral, Connection topology from iVMS4200, HikProconnect and HikCentral, Real-time power and bandwidth consumption from iVMS4200, HikProconnect and HikCentral, 2-year warranty
