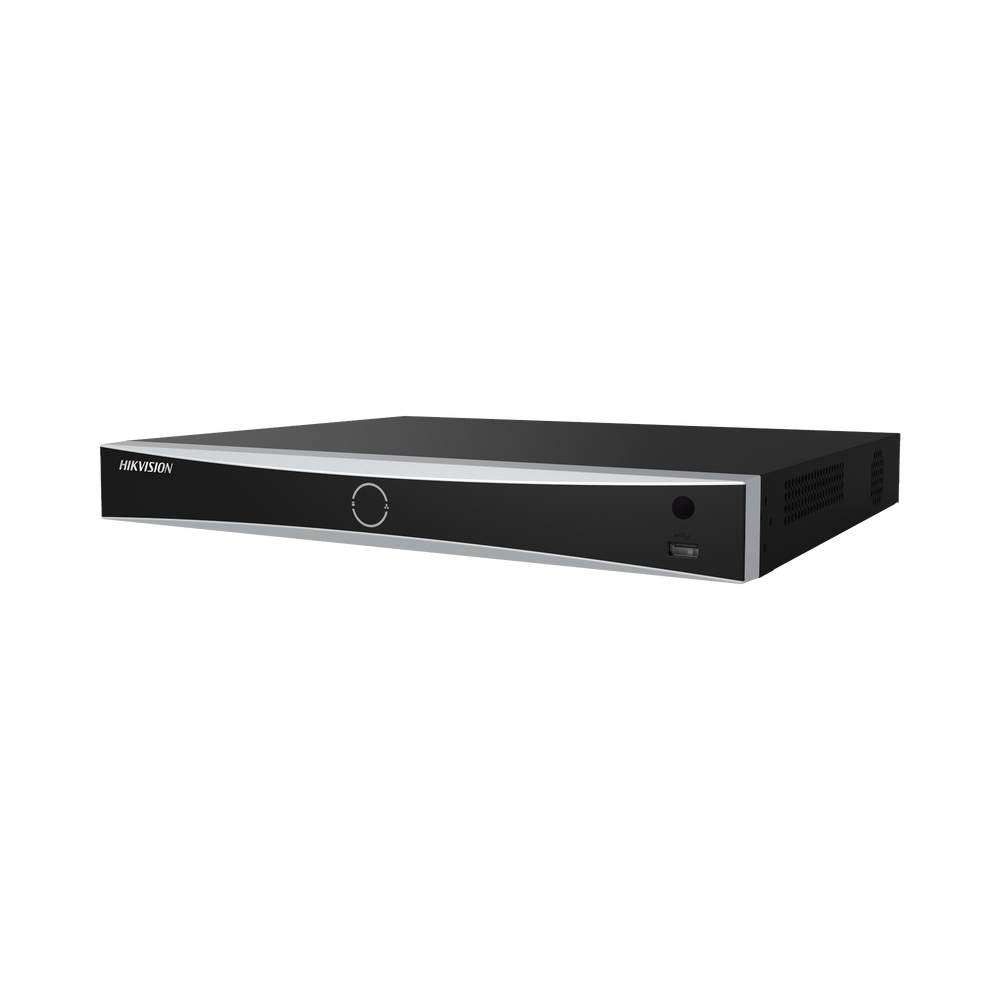

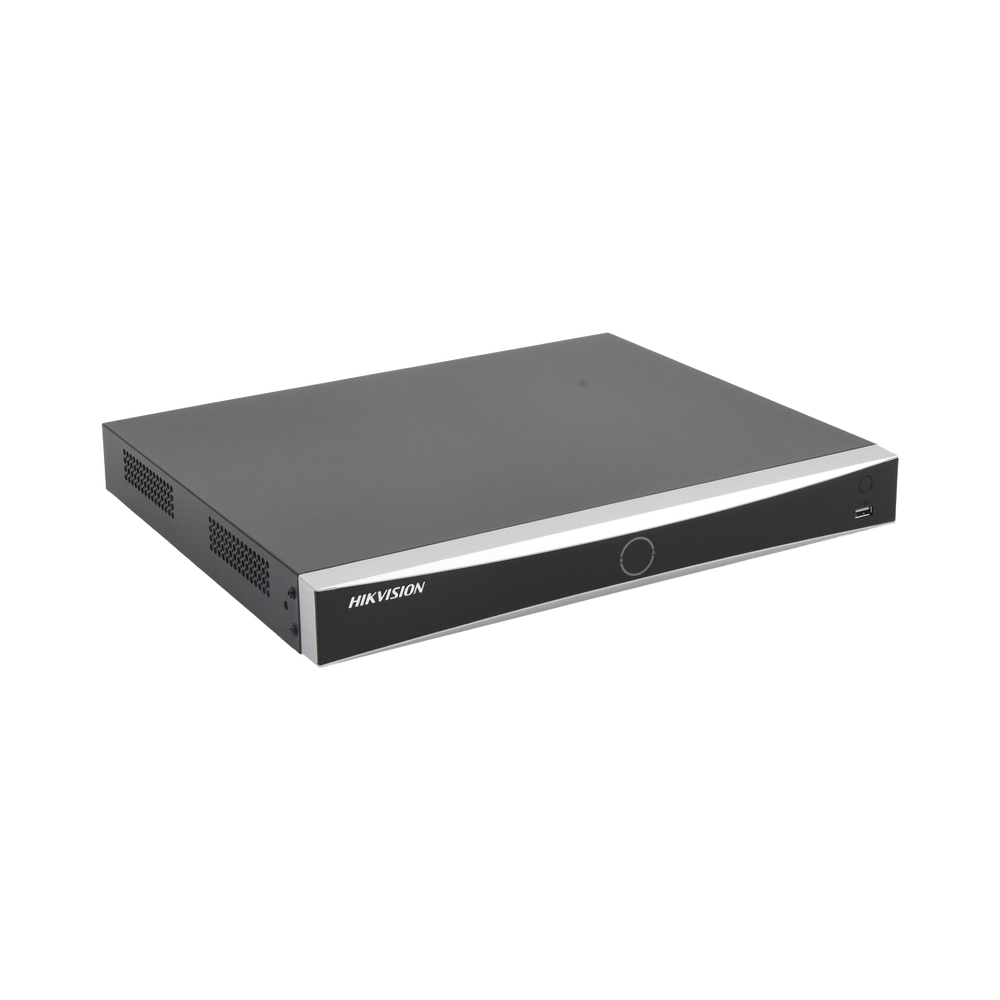

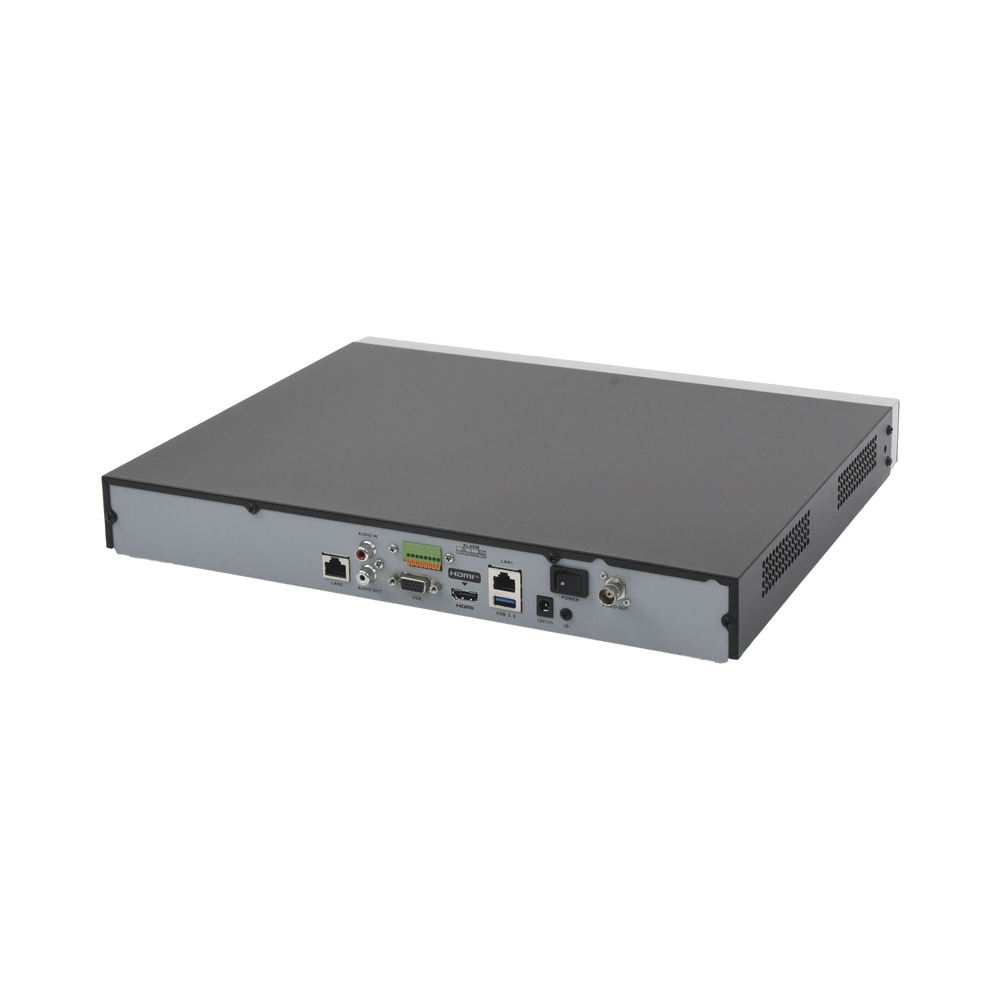

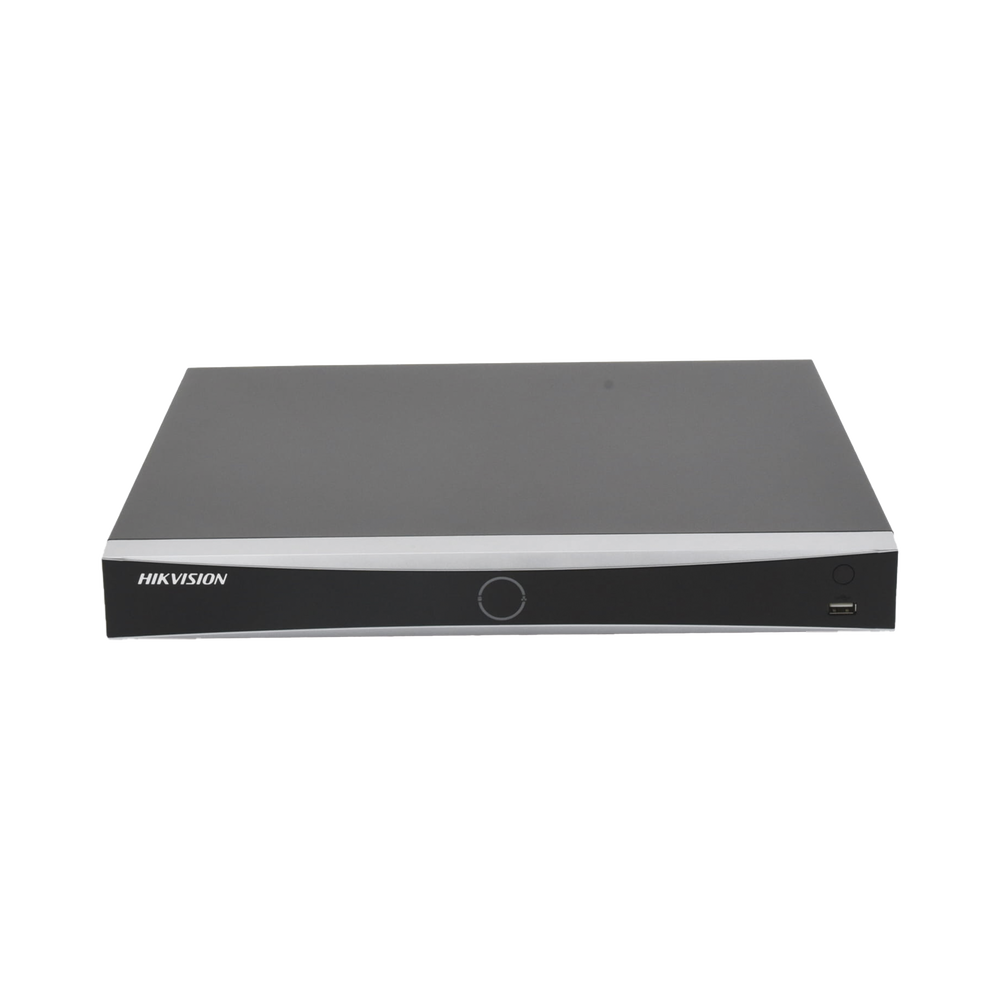

12 Megapixel (4K) NVR / Facial Recognition / 8 IP Channels / 2 Hard Drive Bays / False Alarm Filter / Human Body and Vehicle Detection

• Large-capacity image (face) storage management.
• Face comparison (database) and event action (alarms).
• Easy recognition and more accurate analysis based on Deep Learning algorithms.
• Audio alarms, notification to the monitoring center (iVMS-4200, email sending and alarm outputs).
• Compatible with Hik-Connect P2P ( https://appstore.hikvision.com/ ).

Processing capacity and network functions:

• Input throughput: 320 Mbps.
• Output throughput: 256 Mbps.
• 1 network port 10 / 100 / 1000 Mbps. (LAN).
• Supports compression: H.265+ / H.265 / H.264+ / H.264.
• Support resolution: 12MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p.
• Alarm input and output: 4 / 1.

• Power and consumption: 12 VDC / 30 Watts.
• Operating temperature: -10º to 55º C.
• Dimensions: 385 x 315 x 52 mm.
• Weight: 1 kg.
• Supports 2 HDDs up to 10 TB. (not included).
• Warranty: 5 years.
• Independent HDMI and VGA output.
• Audio Input: 1 Channel.
• Audio Output: 1 Channel.
• Supports two-way audio (two-way audio).

Facial Recognition:

• We can store up to 16 bookcases.
• We can store up to 100,000 images (photos).
• 8 video channels with facial recognition.
• When the camera detects a face and matches it with a face in the database, we can: record, notify the software (iVMS-4200), send an email, activate an alarm output, etc.
• We recommend installing the IDS-2CD7 camera model to provide eight video channels with facial recognition. Each camera allows for one channel with facial recognition.
• We can have up to 4 channels of facial recognition if we handle cameras from the DS-2CD2XX3G0 / DS-2CD2XX3G2 / DS-2CD2XX5 / DS-2CD2XX7G2 series.

ACUSENSE (False Alarm Filter):

• With ACUSENSE technology we can avoid false alarms such as movement of trees, animals, etc.
• By activating ACUSENSE technology, it only detects human bodies and vehicles to truly detect important events and thus eliminate false alarms.
• Supports up to 8 channels with ACUSENSE using cameras of maximum 4 Megapixel: DS-2CD2XX3G0 / DS-2CD2XX3G2 / DS-2CD2XX5.
• Supports up to 8 channels with ACUSENSE using cameras: DS-2CD3XX / DS-2CD2XX7G2 (which support ACUSENSE).

Note: Only facial recognition or ACUSENSE can be enabled (you cannot have both at the same time).

Facial Recognition:
