2-Pack UltraDish 24.4 dBi Antennas, Twistport Connector and Innovative Mount, 5180 - 6400 MHz

2-Pack UltraDish 24.4 dBi Antennas, Twistport Connector and Innovative Mount, 5180 - 6400 MHz

$1.046.953 COP
$1.145.105 COP $1.046.953 COP
Sale Sold out
Shipping calculated at checkout.

2-Pack UltraDish 24.4 dBi Antennas, Twistport Connector and Innovative Mount, 5180 - 6400 MHz

High Gain Directional Antennas

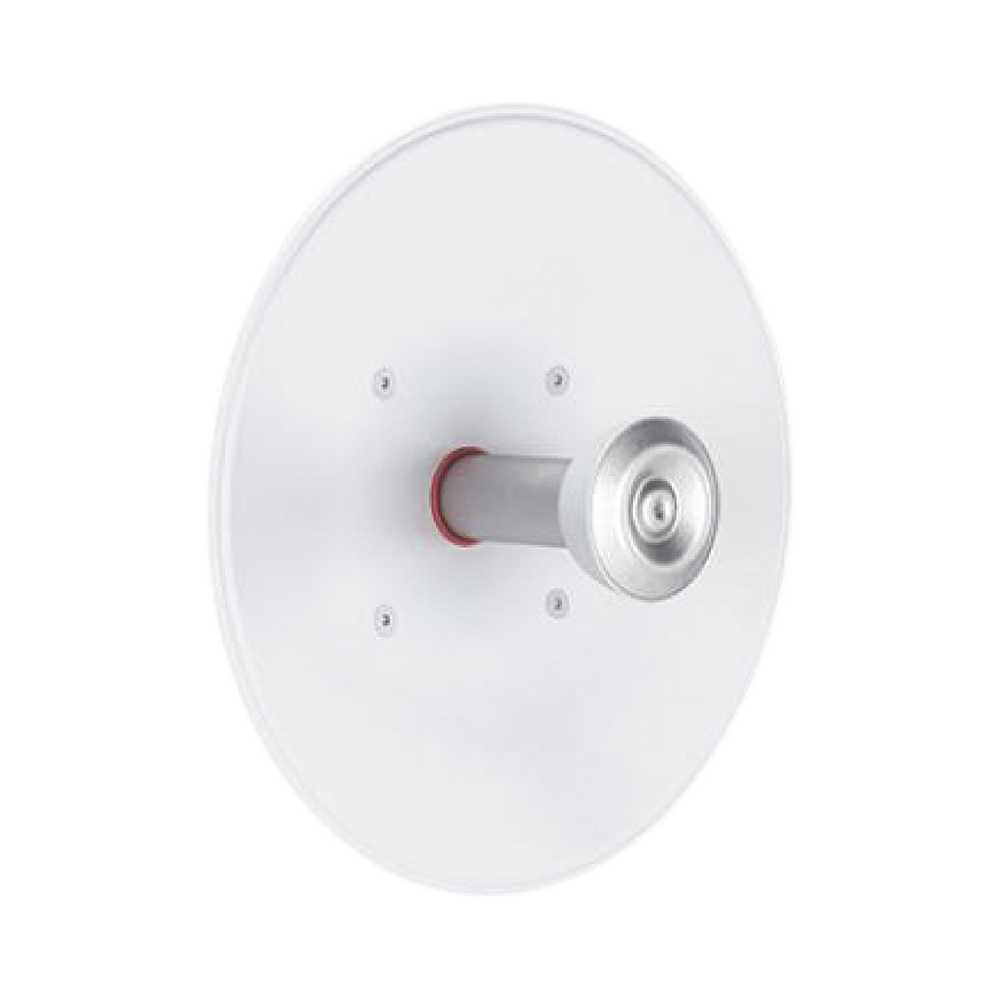

UltraDish TP antennas are wide-range satellite dishes with a lossless TwistPort connector. UltraDish TP antennas feature high directivity and suppressed sidelobes for maximum performance.

UltraDish UD Group 2

Beamwidth performance

The UltraDish ™ TP antennas' suppressed sidelobe radiation pattern minimizes collected and transmitted interference in high-noise areas. The UltraDish ™ TP antennas' flexible gain is achieved by adjusting the size of the main reflector, which focuses the signal fed through the TwistPort ™ connector.

UD TP vyzarovak D27 30db

Frequency range 5.1 - 6.4 GHz

Stable antenna gain is important for stable link performance. The gain of the three UltraDishTM TP antennas is stable across the entire useful bandwidth, from 5.1 to 6.4 GHz, allowing them to utilize the entire spectrum between the UNII-1 and UNII-5 bands with stable performance regardless of the channel used.

UltraDish New Generation Gain

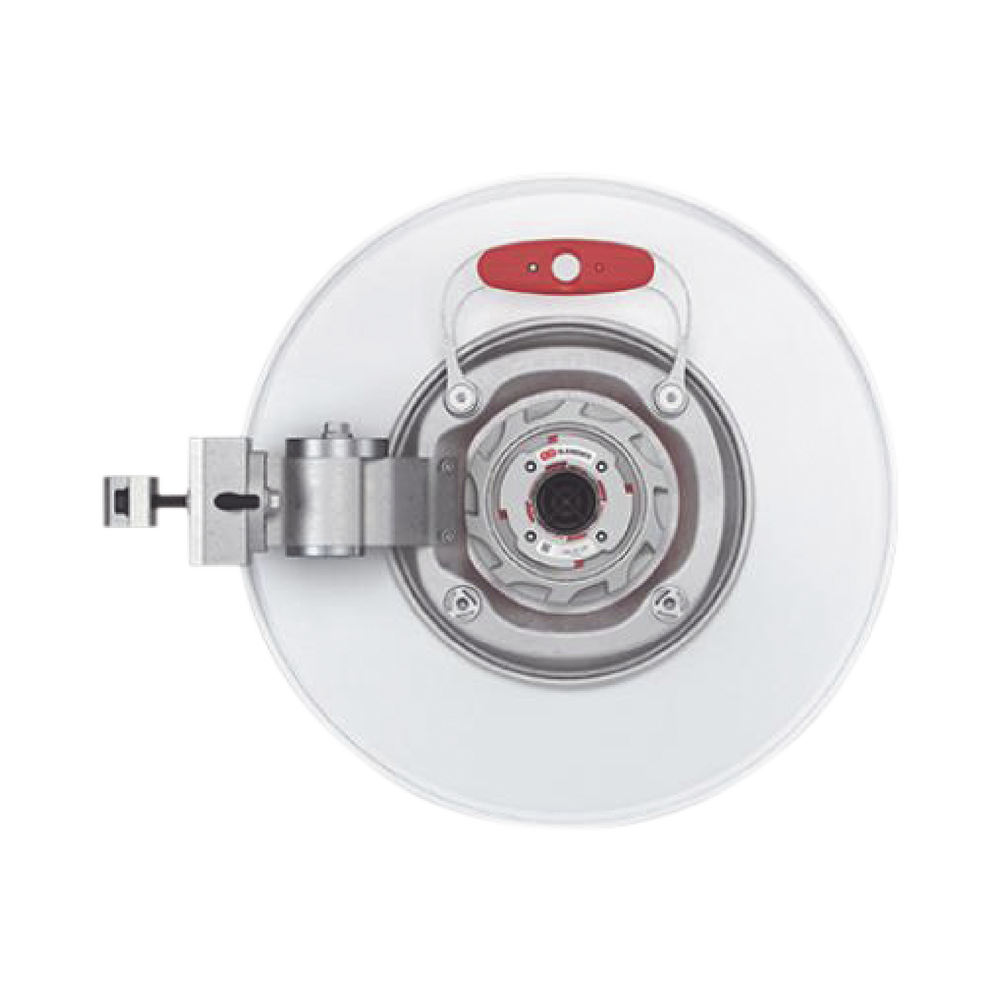

TwistPort TM connector

The TwistPort ™ is our patent-pending, virtually zero-loss quick-lock waveguide connector. It connects our antennas to an RF radio and represents the new standard for scalable, high-performance, and easy-to-use wireless equipment.

Easy Connection

Operating the TwistPort ™ is extremely easy. Mounting and connecting to the radio are combined in a unique, elegant, and highly functional twist-and-lock design. One-handed radio installation is now a real option!

No Loss

The TwistPort ™ connector is virtually lossless. Without connectors or coaxial cables, no losses are introduced during the transmission of the radio signal to an antenna. The ultra-low loss of the waveguide makes the TwistPort ™ losses practically immeasurable.

Cross-platform compatibility

UltraDish TM TP antennas can be used with any radio with a TwistPort TM interface and a variety of third-party radios via a TwistPort TM adapter .

Innovative assembly

UltraDish ™ TP antennas feature an innovative mounting system design optimized for simplicity and durability. Installation and aiming adjustment are quick, easy, and can be completed in minutes.

Step 1: Installing the Bracket

First, install the bracket on the pole. The main M8 bolts have a black surface coating that prevents binding, improving the longevity of the entire bracket. The bracket has two configurations depending on the pole thickness and can be easily mounted on either side of the tower.

Step 2: Antenna Adjustment

The antenna slides easily into the mount, and adjusting the elevation and azimuth is simple thanks to the laser-engraved measurements directly on the mount. A single tool is sufficient to tighten all bolts.

    Gain 24.4 dBi, IP65, Frequency Range 5180 - 6400 MHz, Directional Antenna, Operating Temperature -40ºC to 60ºC

39 in stock

MODELO: UD-TP-24
