• Switch PoE+ / No Administrable / 4 Puertos 10/100 Mbps PoE+ (hasta 300 m) + 2 Puertos 10/100 Mbps Uplink / 35 W
1 2

HIKVISION

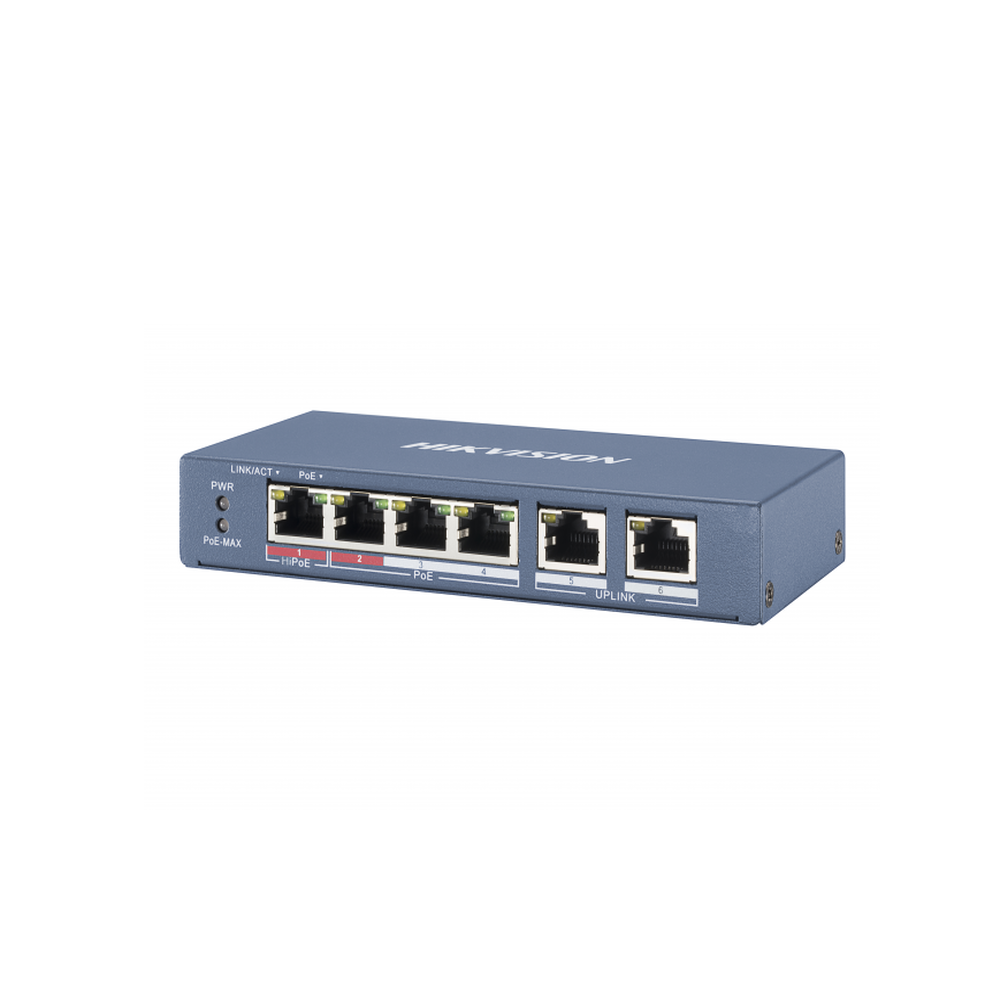

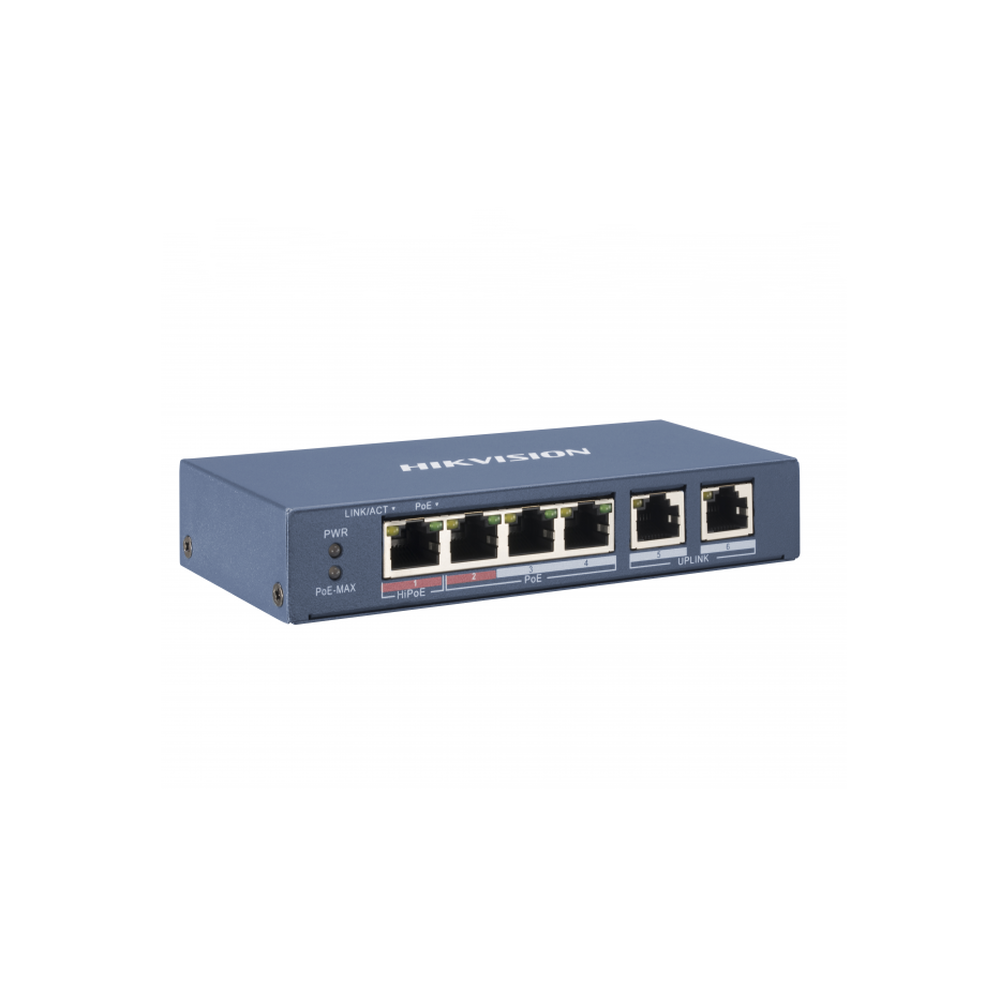

PoE+ Switch / Non-Manageable / 4 Ports 10/100 Mbps PoE+ (up to 300 m) + 2 Ports 10/100 Mbps Uplink / 35 W

PoE+ Switch / Non-Manageable / 4 Ports 10/100 Mbps PoE+ (up to 300 m) + 2 Ports 10/100 Mbps Uplink / 35 W

$197.831 COP
$216.377 COP $197.831 COP
Sale Sold out
Shipping calculated at checkout.

PoE+ Switch / Non-Manageable / 4 Ports 10/100 Mbps PoE+ (up to 300 m) + 2 Ports 10/100 Mbps Uplink / 35 W

Main features:
  • Data monitoring and control in major ports.
  • Extended mode available to achieve wired transmission up to 300 meters.
  • When enabling EXTEND mode, the bandwidth will be 10 Mbps and the power supply should not exceed 8 W maximum per port.
  • It is recommended to use 100% copper Cat 6 cabling for extended mode.
  • Buffer optimization to ensure smooth video streaming.
Physical and Electrical Characteristics:
  • Maximum Wattage: 35 W.
  • Maximum Watts management per port: 30 W.
  • 4 802.3af/at PoE ports supporting EXTEND mode.
  • Power supply: 48 VDC / 0.8 A (includes power supply).
  • Dimensions: 145 mm x 25.6 mm x 68.45 mm.
  • Weight: 0.52 Kg.
  • Warranty: 2 years
  • NOT rack mountable.

Driving Mode 1

The HIKVISION PoE switch allows us to reach distances of up to 500 meters in total when using a HIKVISION PoE extender model DS-1H340101P .

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

Driving Mode 2

Enabling extended mode allows us to reach distances of up to 250 meters per port.

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

    235 in stock

    MODELO: DS-3E0106P-E/M
