(AX PRO) Hikvision Wireless Alarm Panel Kit / Supports 48 Zones / Wi-Fi and Ethernet / Includes Backup Battery / Compatible with AX PRO Accessories
(AX PRO) Hikvision Wireless Alarm Panel Kit / Supports 48 Zones / Wi-Fi and Ethernet / Includes Backup Battery / Compatible with AX PRO Accessories
Couldn't load pickup availability
(AX PRO) Hikvision Wireless Alarm Panel Kit / Supports 48 Zones / Wi-Fi and Ethernet / Includes Backup Battery / Compatible with AX PRO Accessories
Discover the AX PRO series of Hikvision alarms
Configure the Hikvision AX PRO alarm
Welcome to the future with AX PRO Hikvision
- Supports up to 48 alarm zones or outputs (allows combining between outputs and zones)
- 8 areas or partitions.
- Supports up to 8 DS-PT1-WB Tag Readers or DS-PK1-E-WB Keypads (allows combining readers and keypads)
- Supports up to 4 wireless sirens (2 for outdoor DS-PS1-E-WB/R and 2 for indoor DS-PS1-I-WB )
- Supports up to 16 controllers ( DS-PKF1-WB controllers)
- Supports up to 2 DS-PR1-WB repeaters
- Supports event video viewing via mobile client and email.
- Voice prompt for setup and operation.
- Configuration via web, mobile client or client software.
- Send alarm notifications via Push and Email notifications.
- Supports LAN / Wi-Fi connection (2.4 GHz)
- Power consumption: 110 VAC.
- Operating temperature: - 10 ° C to 55 ° C
- Dimensions: 170 × 170 × 38.6 mm
- Weight: 557.5 grams
- Material: Polycarbonate.
- Warranty: 2 years
AX PRO supports Wi-Fi and TCP/IP communication methods. It also supports ISAPI, Hik-Connect, and DC-09, making it suitable for use in retail stores, home offices, factories, warehouses, and other scenarios.
The panel supports communication with the EXTRIUMDT42V2 alarm control panels.

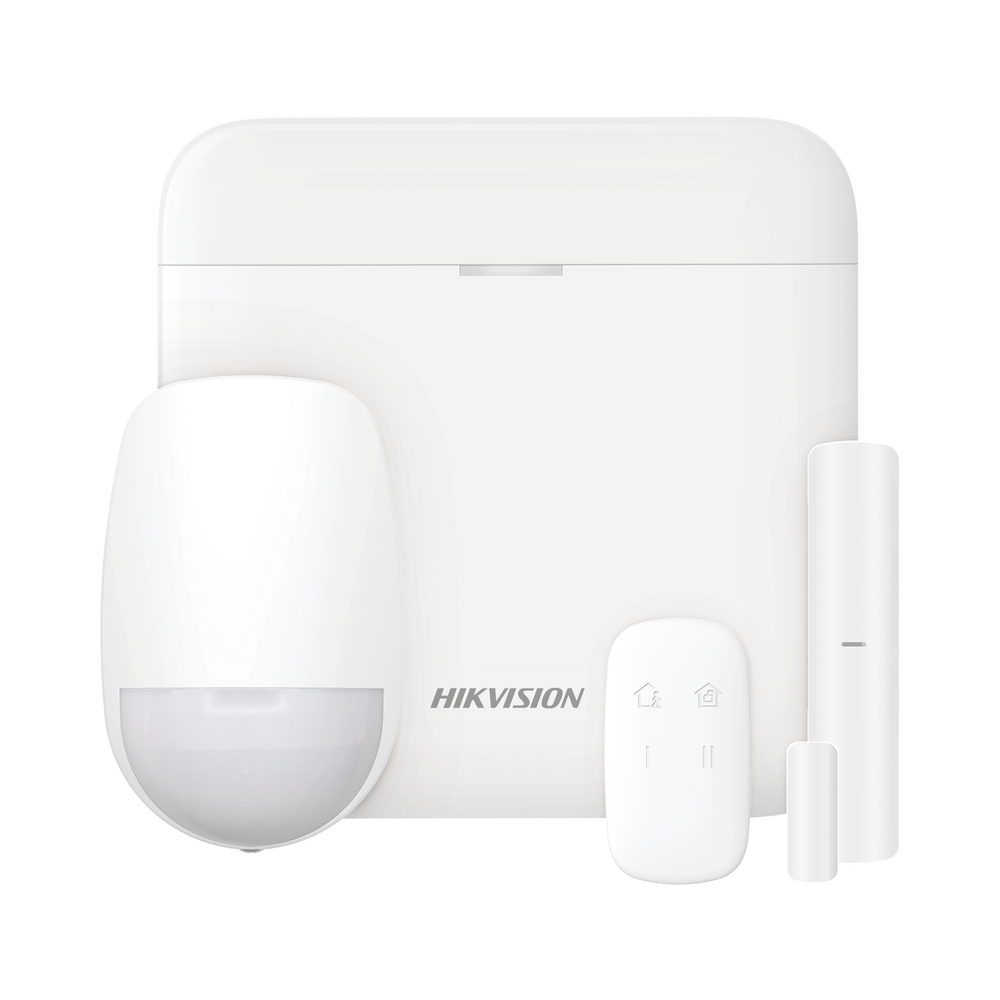

The kit includes:
- 1 Concentrator or Hub: DS-PWA48-E-WB.
- 1 PIR Sensor: DS-PDP15P-EG2-WB.
- 1 Magnetic contact: DS-PDMC-EG2-WB.
- 1 Remote control: DS-PKF1-WB.
AX PRO Series
Need to protect your home, office or store?
Tired of so many cables and a long installation time?
Use a professional wireless alarm solution!
Learn about all the devices that can be integrated into the AX PRO Series by clicking here .
APPLICATION DIAGRAM
WHAT'S NEW IN THE AX-PRO SERIES
DS-PR1-WB SIGNAL REPEATER
Increase the coverage of your devices
Extends the signal of AXPRO series devices, receives alarm, status and control messages from the devices and repeats these messages to the control panel.
- ✓Stable and secure 433MHz two-way wireless communication .
- ✓LED indicator, displays the different status of the device with easy understanding.
- ✓Up to 35 hours of battery backup after loss of main power.
- ✓Automatically find and connect detectors, intelligent auto pairing.
- ✓Easy installation due to new design.
PIR DETECTOR WITH WIRELESS CAMERA DS-PDPC12P-EG2-WB
Fully supervised two-way wireless detector with built-in high-quality camera that can provide an ideal solution for video verification.
- ✓Detection range: 12 m.
- ✓Detection angle: 85.9°.
- ✓Pet immunity: 30Kg.
- ✓Maximum camera resolution: 640 x 480.
- ✓Operating Voltage: 3 x CR123A (Included).
- Battery life: 6 years
- ✓Anti-sabotage tamper.
ACCESSORIES FOR AUTOMATION:
DS-PM1-O1H-WB
- ✓433MHz Two-Way Wireless Communication / AES-128 Encryption.
- ✓LED indicator, shows the device status: on/off.
- ✓Small box design, which can be easily hidden.
- ✓Automation operation, on/off button from: app / control / keypad
- ✓Setting up scenarios for different events.
- ✓1 Relay output: NO/NC (100 to 240 VAC / Max. 13 A)
- ✓Operating Voltage: 100 VAC to 240 VAC.
- ✓Operating temperature: -10° to 55°C.
DS-PM1-O1L-WB
- ✓433MHz Two-Way Wireless Communication / AES-128 Encryption.
- ✓LED indicator, shows the device status: on/off.
- ✓Small box design, which can be easily hidden.
- ✓Automation operation, on/off button from: app / control / keypad
- ✓Scenario configuration for different events
- ✓Using the alarm input, it can be used as a zone input for the panel.
- ✓1 Relay output: NO/NC (0 to 36VDC / Max. 5 A).
- ✓1 Alarm input: NO/NC.
- ✓Operating Voltage: 7VDC to 24VDC.
- ✓Operating temperature: -10° to 55°C.
- Free App, Compatible with PIRCAM, Integrated Communicator
Out of stock
MODELO: DS-PWA48-KIT-WB
