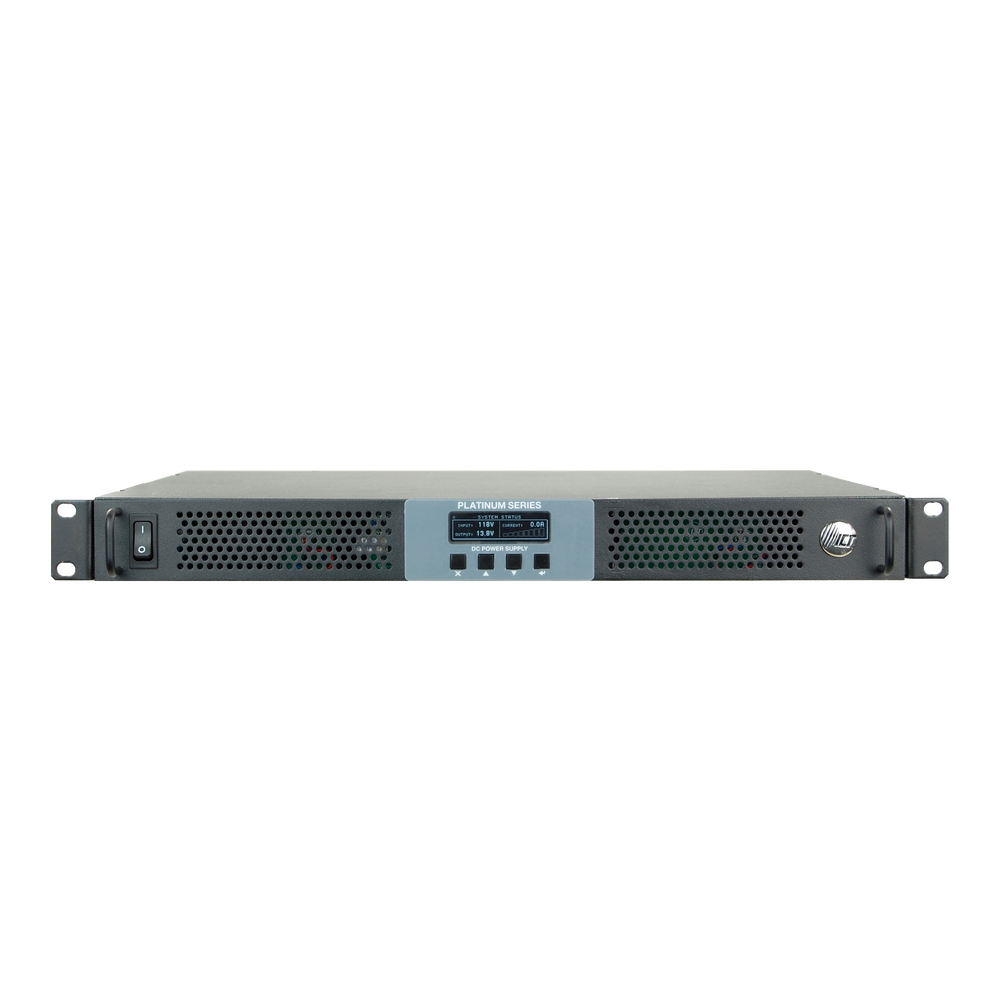

High Performance 48Vdc / 1600W Power Supply

High Performance 48Vdc / 1600W Power Supply

High Performance DC Power Supply

ICT's Platinum Series DC power supplies deliver a new level of performance, functionality, and remote management for wireless base station applications. The 1RU Platinum Series supplies 800 or 1600 watts of power and is available with 12, 24, or 48 VDC outputs. It offers an ideal DC power solution for wireless communications professionals who demand compact, highly efficient DC power systems for LMR, broadband, and network communications equipment.

The Platinum Series is designed, manufactured, and supported in North America to deliver the most reliable, flexible, and innovative DC power solution available today for wireless communications, broadband, and other demanding DC power applications.

Main Features:

• Compact Design 1 Rack Unit
• Battery management function
• Temperature-controlled fans
• Easy installation, configuration and operation
• High-resolution OLED display

Technical Features:

• Direct Current at 48V: 30A
• Efficiency (Typical) 48V: 93%
• Output Voltage: 48 VDC
• Output Power: 1600W
• Input Voltage Range: 90 - 300 Vac
• Frequency Range: 50/60 Hz
• Power Factor (Typical): 0.99
• Operating Temperature: -30 ºC to +60 ºC

Physical Characteristics:

• Weight: 6.8 Kg
• Dimensions: 419 x 483 x 44 mm

With battery backup terminal, Low voltage disconnect, Two-year warranty, 1600W output power
