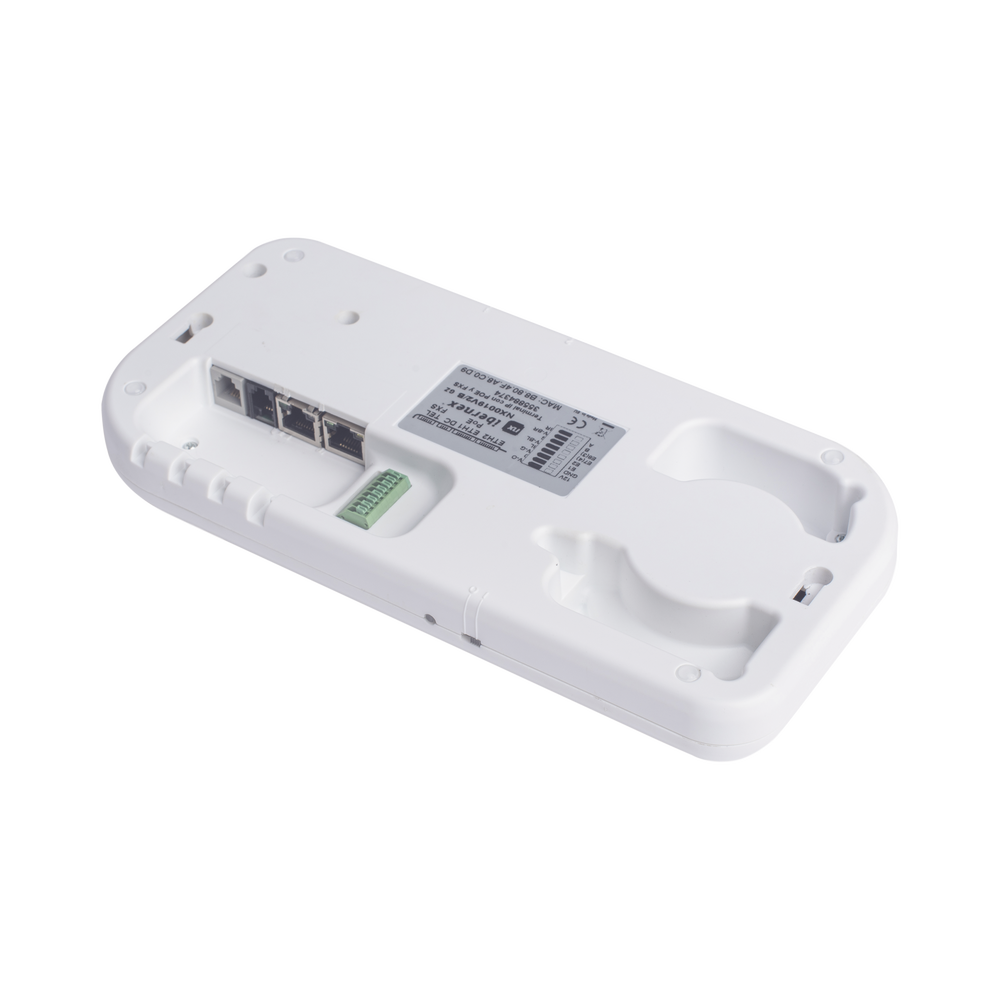

IP Room Terminal / Blue Doctor Call Button / 125 KHz RFID Reader / SIP / PoE / Compatible with NX1071 and NX1075
IP Room Terminal / Blue Doctor Call Button / 125 KHz RFID Reader / SIP / PoE / Compatible with NX1071 and NX1075
Regular price
$3.890.537 COP
Regular price
$4.255.274 COP
Sale price
$3.890.537 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
IP Room Terminal / Blue Doctor Call Button / 125 KHz RFID Reader / SIP / PoE / Compatible with NX1071 and NX1075
Main functions:
- Antibacterial Material
- Integrated speaker and 125 KHz RFID reader
- SIP VoIP calls
- High-sensitivity omnidirectional microphone
Electrical and physical characteristics:
- 12 Vdc and PoE power supply (IEEE 802.3af)
- Current: 540 m A at 12 Vdc (7.5 W PoE)
- 2 Ethernet ports (Port 1 Eth + PoE)
- Digital echo cancellation
- Dimensions: 243 x 119 x 33 mm
- Check the full sheet
Highlighted Features:
The NX0019/B IP room terminal provides voice and data communication via the PoE Ethernet connection and acts as a peripheral controller for the Ibernex patient-nurse call system.
It has three buttons that allow you to generate and cancel care alarms, including the blue button for calling a doctor. In addition, thanks to its integrated RFID reader, the center's staff can identify themselves with a card and register their presence in the room.
Note: Certification is required for installation and to request technical support.
IP connection topology
All room terminals, nurses' or doctors' consoles, are connected to the database via Ethernet.
Examples of use
All peripherals are connected to the room IP terminal and are powered from there.
- "CODE BLUE", TWO-WAY AUDIO
Out of stock
MODELO: NX0019/B
