IBERNEX
Bathroom Handle Wall Module with LED Indicator / Compatible with NX0019/B, NX0015 and NX1021
Bathroom Handle Wall Module with LED Indicator / Compatible with NX0019/B, NX0015 and NX1021
Regular price
$389.173 COP
Regular price
$425.658 COP
Sale price
$389.173 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Bathroom Handle Wall Module with LED Indicator / Compatible with NX0019/B, NX0015 and NX1021
Main functions:
- Supervised NC contact to detect cable breakage
- Contact NA for alternative uses
- Red LED for alarm signaling
- Operable in all directions
- Used in conjunction with cord NX0073
- Requires NX9003 frame
Electrical and physical characteristics:
- 12 Vdc power supply
- Consumption less than 2 mA
- IP54 protection index
- Dimensions: 44 x 44 x 44 mm
- Check the full sheet
Highlighted Features:
It allows the generation of alarms by activating a handle.
Works in combination with the NX0073 sanitary handle.
When the trigger is activated, the red LED lights up indicating the generation of an alarm and remains fixed until the alarm is terminated.
Note: Certification is required for installation and to request technical support.
Examples of use

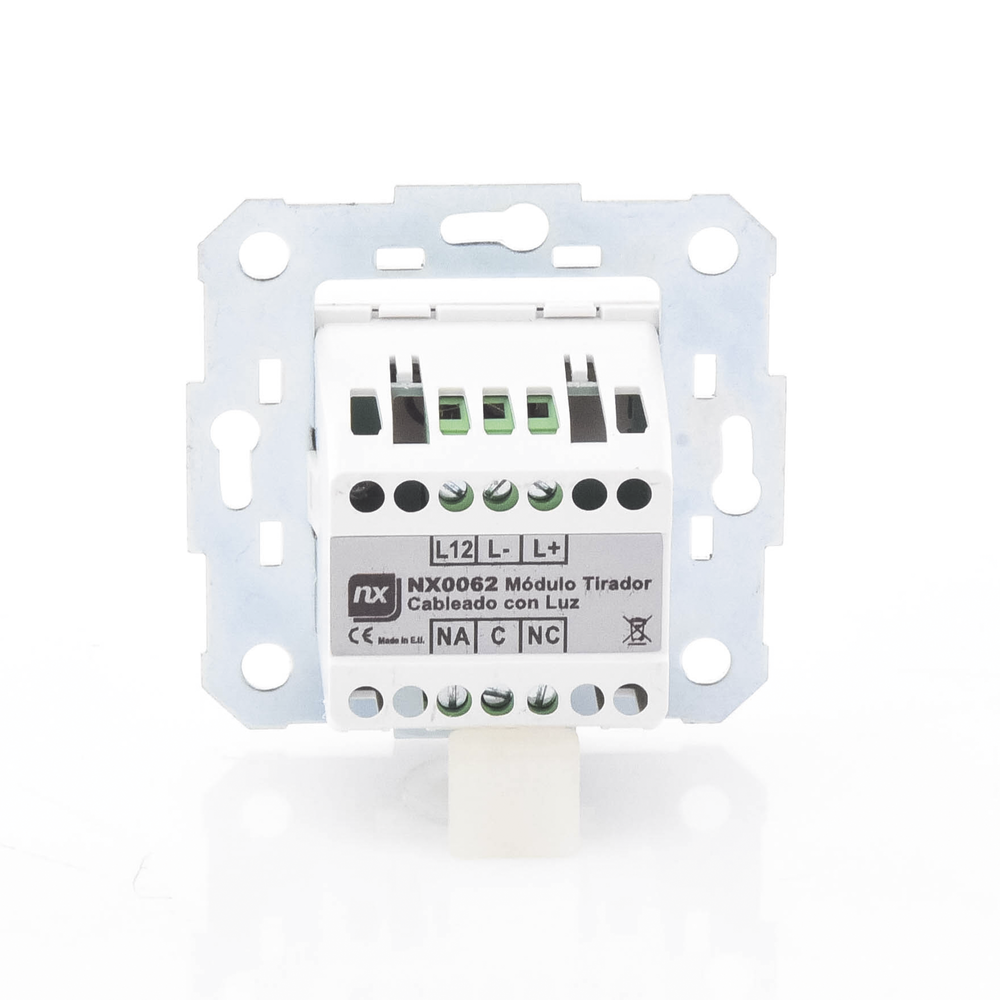

The connection is made with 2 pairs of UTP cable (1 for the LED and 1 for the alarm pulse) to any of the room terminals NX0019/B, NX0015 or NX1021.
Alarm indicator LED
Operable in all directions
Used in conjunction with lanyard NX0073
Installing the module
The module includes a frame for direct mounting to a 2x2 inch square box (not included) and the NX9003 trim frame (not included) is attached.
- ACTIVATION IN ALL DIRECTIONS, COM, NC AND NO OUTPUT
Out of stock
MODELO: NX0062
