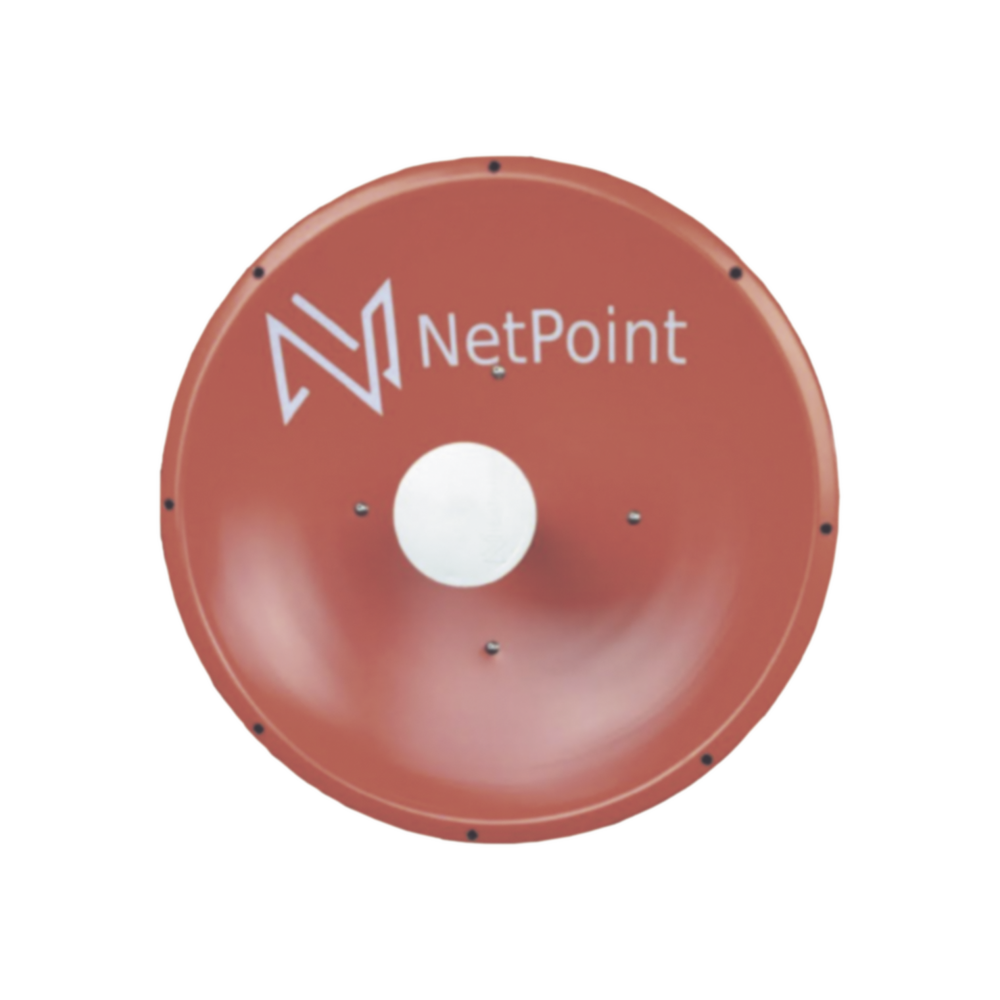

Directional Antenna / 4 ft / 4.9-6.4 GHz / Designed for saltwater environments / 37 dBi Gain / 45° and 90° SLANT / Includes radome, jumper and stainless steel mount.

Directional Antenna / 4 ft / 4.9-6.4 GHz / Designed for saltwater environments / 37 dBi Gain / 45° and 90° SLANT / Includes radome, jumper and stainless steel mount.

120cm Diameter Directional Antenna, 4.9-6.2 GHz 37 DBi with SLANT for Point-to-Point applications.

Differentiators:
The widest frequency range on the market.
Connectivity with other brands. Ubiquiti, Mimosa, Cambium, etc.
45° Slant-type polarization to reduce noise levels.
Fine-tuned assembly, highly robust and stable.
Customization: Antennas can be adapted to increase wind and corrosion resistance, and mounts suitable for all types of towers can be manufactured.

Details:
High-precision parabolic reflector.
Manufactured in extruded aluminum.
V/H Dual Polarization.
Includes assembly.
Includes support for Universal Radio.
Ability to set polarization at 45°
Compatible with radome model AJ-RD120.

Electrical Specifications:
Frequency Range: 4.9 - 6.2 GHz
Gain (dBi):
-Low – 35.2 dBi
-Average – 35.7 dBi
-High – 37.0 dBi
Dimension: 1.20 m in diameter.
Cross-polar discrimination: 30 dB
Operating temperature: -45 +55 °C
VSWR/Return Loss: 4.43:1/15 dB
Isolation: 35 dB
Relative humidity: 15 to 100%
Polarization: Dual

Mechanical Specifications:
Wind speed 50 m/s – 180 km/h
Wind load survival 70 m/s – 250 km/h
Azimuth adjustment: 360°
Elevation adjustment ±15
Suggested mast diameter: 50-70 mm, 100-114 mm
Operating temperature: -45 to +60 C°

Note: for correct installation always use vulcanized tape

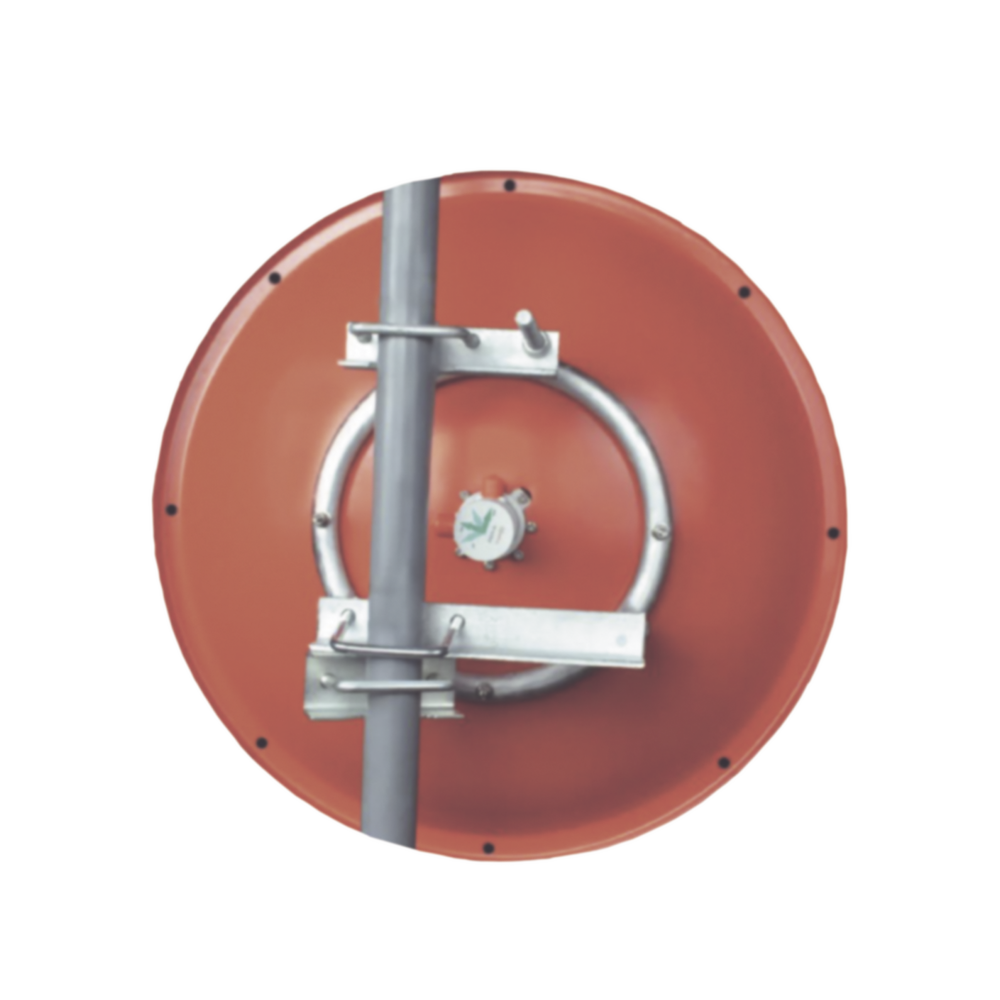

Dual Polarization, Connectivity with any type of radio, Wide frequency range, Radome included, Designed for saltwater environments, Includes N-Male to reverse SMA Male jumper, Stainless steel mounting
