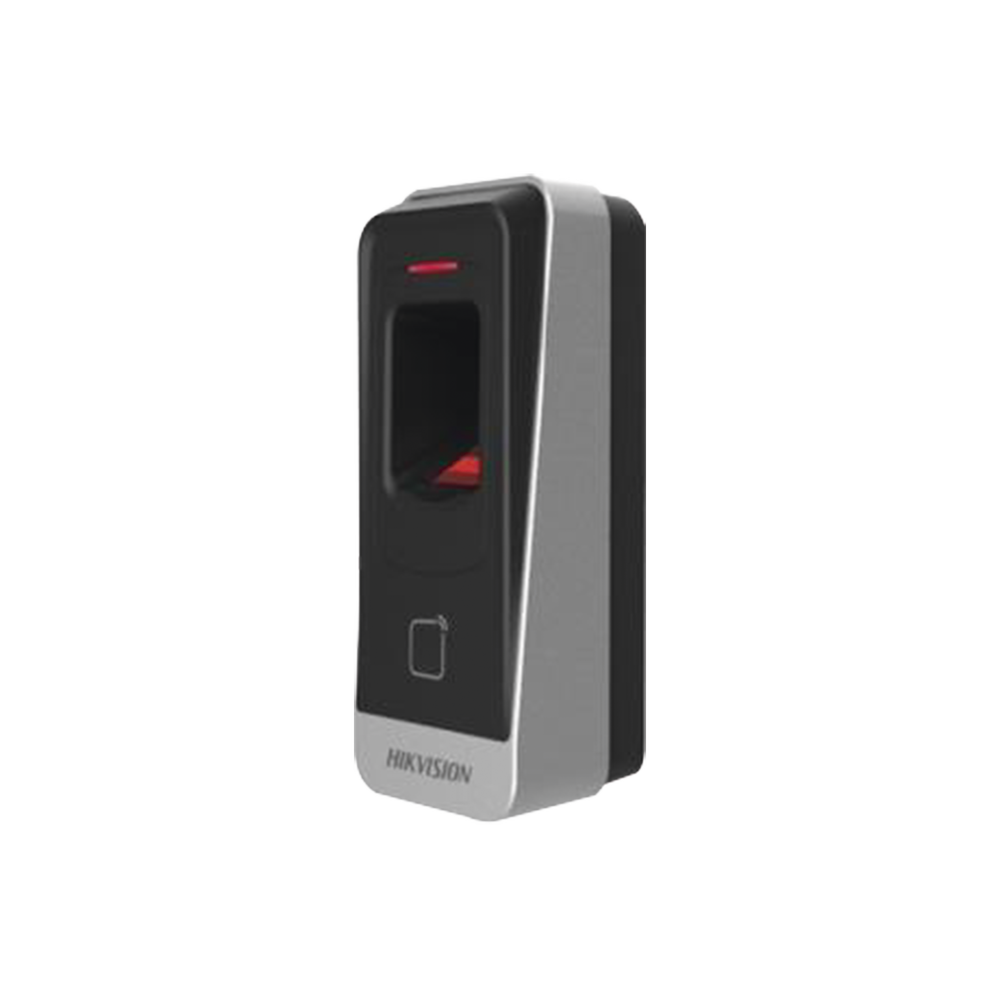

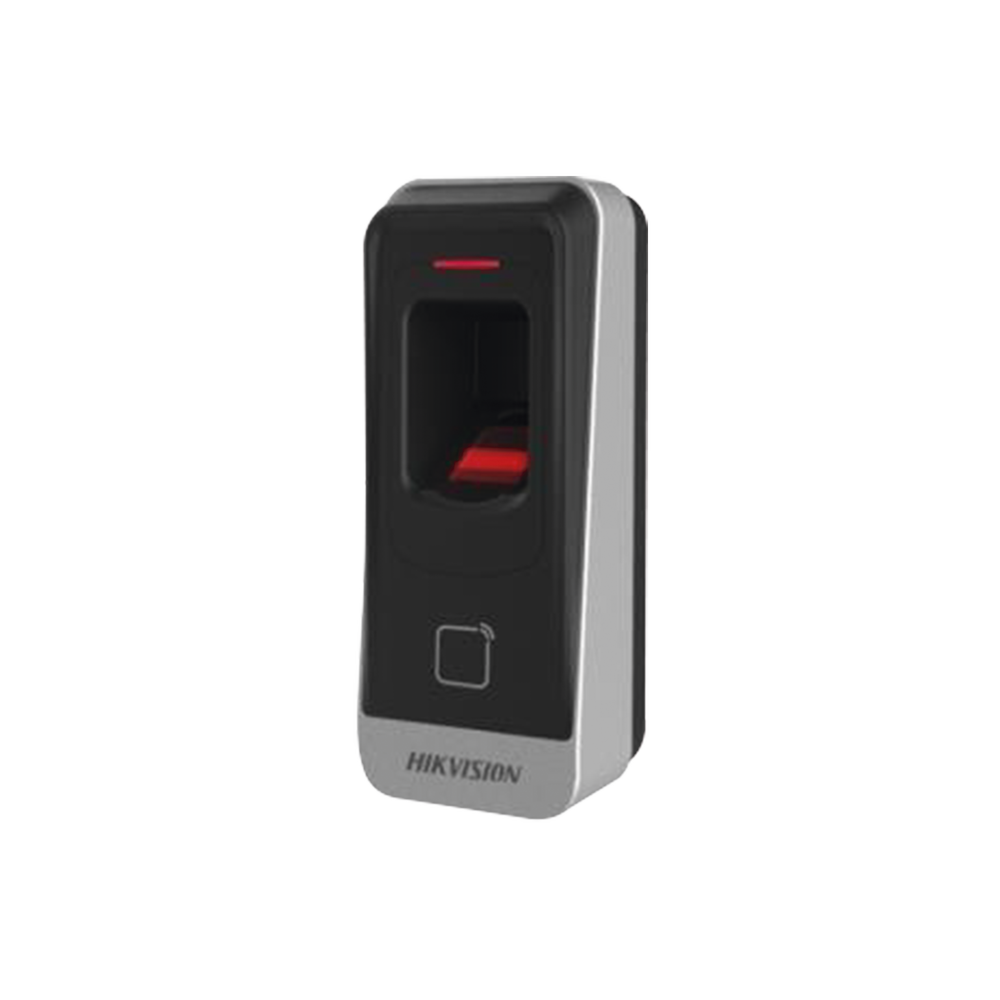

MIFARE IP65 Slave Reader / Fingerprint / Mifare Card Reader / RS-485 / Indoor and Outdoor / Requires DS-K2600 Series Panel

• Communication: RS485.
• Fingerprint sensor + anti-scratch optical.
• MIFARE card reader at 13.56 MHz
• Combinable verification methods: card and card + fingerprint.
• Protection Grade: IP65.
• Some compatible cards: ACCESS-CARD-M1K / ACCESS-CARD-M4K/ ACCESKFBPROX.
• Warranty: 1 Year

• Power: 12 Vdc, 120 mA in Operation, energized by access panel.
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Dimensions: 62 mm × 132 mm × 44 mm (2.44' × 5.20' × 1.73')

High-performance, tamper-proof product, with IP65 protection rating, suitable for outdoor installation.

The reader is compatible with DS-K26XX series access control panels (for 1, 2 or 4 doors), which are managed through the free IVMS4200 software.

• DSK2601 (1 door)
• DSK2602 or DSK2602T (2 doors)
• DS-K2604 or DSK2604T (4 doors).
